850-004 Series
Manufacturer: NorComp Inc.
Beta
⌘K

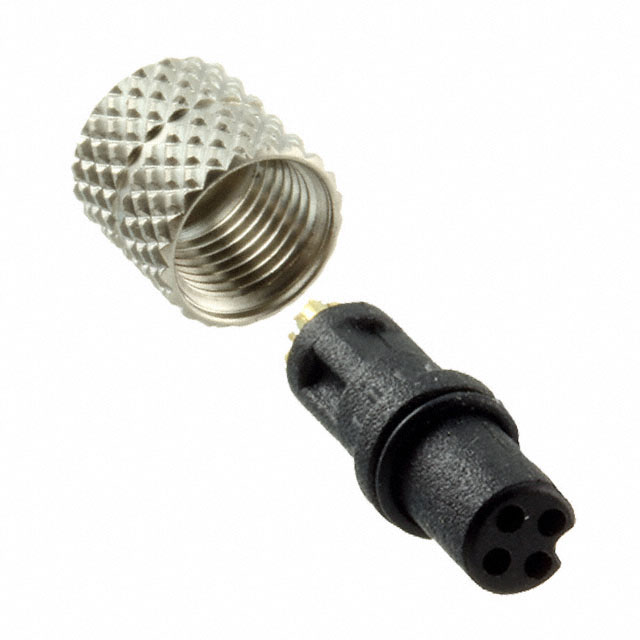

CONN PLUG FMALE 4P GOLD SLDR CUP
| Part | Applications | Shell Size - Insert | Material Flammability Rating | Voltage Rating | Contact Finish - Mating | Shell Finish | Insert Material | Fastening Type | Mounting Type | Primary Material | Shell Material | Number of Positions | Shielding | Contact Material | Connector Type | Ingress Protection | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Orientation | Features | Color | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish Thickness - Mating | Cable Opening | Cable Opening |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Industrial Medical | M5-4 | UL94 V-0 | 60 VDC | Gold | Nickel | Thermoplastic Polyurethane (TPU) | Threaded | Free Hanging (In-Line) | Metal | Brass | 4 | Unshielded | Phosphor Bronze | Plug Female Sockets | IP67 - Dust Tight Waterproof | 0.25 µm | 10 µin | Keyed | Coupling Nut | Silver | 85 °C | -40 C | |||
NorComp Inc. | Industrial Medical | M5-4 | UL94 V-0 | 60 VDC | Gold | Tin | Thermoplastic Polyurethane (TPU) | Threaded | Free Hanging (In-Line) | Metal | Brass | 4 | Shielded | Brass | Receptacle Male Pins | IP67 - Dust Tight Waterproof | Keyed | Silver | 85 °C | -40 C | Flash | 3.91 mm | 0.154 in | |||
 NorComp Inc. | Industrial Medical | M5-4 | UL94 V-0 | 60 VDC | Gold | Nickel | Thermoplastic Polyurethane (TPU) | Threaded | Free Hanging (In-Line) | Metal | Brass | 4 | Unshielded | Brass | Receptacle Male Pins | IP67 - Dust Tight Waterproof | 0.25 µm | 10 µin | Keyed | Silver | 85 °C | -40 C | ||||
 NorComp Inc. | Industrial Medical | M5-4 | UL94 V-0 | 60 VDC | Gold | Tin | Thermoplastic Polyurethane (TPU) | Threaded | Free Hanging (In-Line) | Metal | Brass | 4 | Shielded | Brass | Receptacle Male Pins | IP67 - Dust Tight Waterproof | 0.25 µm | 10 µin | Keyed | Silver | 85 °C | -40 C | 3.91 mm | 0.154 in | ||
NorComp Inc. | Industrial Medical | M5-4 | UL94 V-0 | 60 VDC | Gold | Nickel | Thermoplastic Polyurethane (TPU) | Threaded | Free Hanging (In-Line) | Metal | Brass | 4 | Unshielded | Phosphor Bronze | Plug Female Sockets | IP67 - Dust Tight Waterproof | Keyed | Coupling Nut | Silver | 85 °C | -40 C | Flash | ||||
 NorComp Inc. | Industrial Medical | M5-4 | UL94 V-0 | 60 VDC | Gold | Nickel | Thermoplastic Polyurethane (TPU) | Threaded | Free Hanging (In-Line) | Metal | Brass | 4 | Unshielded | Brass | Receptacle Male Pins | IP67 - Dust Tight Waterproof | Keyed | Silver | 85 °C | -40 C | Flash | |||||
NorComp Inc. | Industrial Medical | M5-4 | UL94 V-0 | 60 VDC | Gold | Tin | Thermoplastic Polyurethane (TPU) | Threaded | Free Hanging (In-Line) | Metal | Brass | 4 | Shielded | Phosphor Bronze | Plug Female Sockets | IP67 - Dust Tight Waterproof | Keyed | Coupling Nut | Silver | 85 °C | -40 C | Flash |
