Q8 Series
Manufacturer: APEM Inc.
Beta
⌘K
LED PANEL MOUNT INDICATORS LED INDICATOR 8MM
| Part | Type | Lens Color | Panel Cutout Dimensions | Panel Cutout Dimensions | Millicandela Rating | Lens Style | Viewing Angle | Ratings | Lens Transparency | Voltage | Lamp Color | Lens Size | Lens Size | Panel Cutout Shape | Current | Ingress Protection | Termination Style | Panel Cutout Dimensions | Lens Size [diameter] | Current | Voltage | Panel Cutout Dimensions [custom] | Panel Cutout Dimensions [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 APEM Inc. | LED | Red | 0.32 " | 8 mm | 8 mcd | Round with Flat Top | 100 ° | AC | Diffused | 220 V | Red | 5 mm | T-1 3/4 | Round | 3 mA | IP67 | Wire Leads - 7.87" (200.00mm) | ||||||

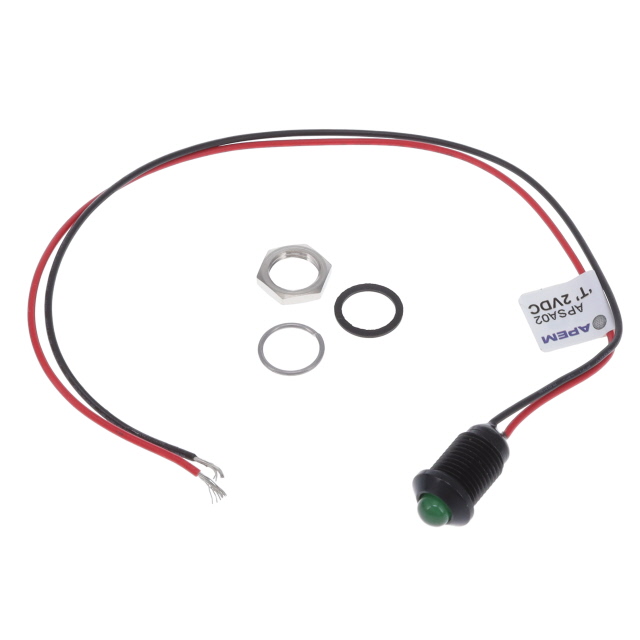

 APEM Inc. | LED | Green | 0.315 in | 1900 mcd | Round with Domed Top | 100 ° | Diffused | 2 V | Green | Round | 20 mA | IP67 | Wire Leads - 7.87" (200.00mm) | 8 mm | 5 mm | ||||||||
APEM Inc. | LED | Green Red Yellow | 0.32 " | 8 mm | 6 mcd 10 mcd 15 mcd | Round with Flat Top | 100 ° | DC | Diffused | Green Red Yellow | 5 mm | T-1 3/4 | Round | IP67 | Wire Leads - 7.87" (200.00mm) | 20mA Green 20mA Red 20mA Yellow | 24V Green 24V Red 24V Yellow | ||||||
APEM Inc. | LED | Red | 0.32 " | 8 mm | 8 mcd | Round with Flat Top | 100 ° | DC | Diffused | 28 V | Red | 5 mm | T-1 3/4 | Round | 20 mA | IP67 | Wire Leads - 7.87" (200.00mm) | ||||||
APEM Inc. | LED | Colorless | 0.32 " | 8 mm | 3000 mcd | Round with Flat Top | 100 ° | DC | Clear | 24 V | Green | 5 mm | T-1 3/4 | Round | 20 mA | IP67 | Solder Lug | ||||||
APEM Inc. | LED | Red | 0.32 " | 8 mm | 80 mcd | Round with Domed Top | 100 ° | AC | Diffused | 220 V | Red | 5 mm | T-1 3/4 | Round | 3 mA | IP67 | Solder Lug | ||||||
APEM Inc. | LED | Green | 8 mcd | Round with Flat Top | 100 ° | DC | Diffused | 24 V | Green | 5 mm | T-1 3/4 | Round | 20 mA | Solder Lug | 0.31 in | 7.87 mm | |||||||
APEM Inc. | LED | Green | 0.32 " | 8 mm | 60 mcd | Round with Domed Top | 100 ° | DC | Diffused | 24 V | Green | 5 mm | T-1 3/4 | Round | 20 mA | IP67 | Wire Leads - 7.87" (200.00mm) | ||||||
APEM Inc. | LED | Green | 0.32 " | 8 mm | 750 mcd | Round with Flat Top | 100 ° | AC | Diffused | 110 V | Green | 5 mm | T-1 3/4 | Round | 6 mA | IP67 | Solder Lug | ||||||
 APEM Inc. | LED | Blue | 200 mcd | Round with Flat Top | 100 ° | DC | Diffused | 12 V | Blue | 5 mm | T-1 3/4 | Round | 20 mA | IP67 | Solder Lug | 0.31 in | 7.87 mm |
