TBP02R2 Series

Manufacturer: Same Sky (Formerly CUI Devices)

Catalog

TERMINAL BLOCK, PLUGGABLE, 3.81,

Part	Voltage - UL	Insulation Height	Insulation Height	Contact Mating Finish	Current - UL	Number of Levels	Termination Style	Contact Tail Length	Contact Tail Length	Material Flammability Rating	Header Orientation	Contact Material	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Color	Type	Pitch	Pitch	Voltage - IEC	Positions Per Level	Current - IEC	Mounting Type	Features
Same Sky (Formerly CUI Devices) TBP02R2-381-14BE	300 V	0.362 in	9.2 mm	Tin	8 A	1	Solder	0.138 in	3.5 mm	UL94 V-0	Vertical	Copper Alloy	14	-40 C	105 ░C	Blue	Header Male Pins Shrouded (4 Side)	3.81 mm	0.15 in	250 V	14	7 A	Through Hole
Same Sky (Formerly CUI Devices) TBP02R2-381-16BE	300 V			Tin	8 A	1	Solder				Vertical		16	-40 C	105 ░C	Blue	Header Male Pins Shrouded (4 Side)	3.81 mm	0.15 in	250 V	16	7 A	Through Hole
Same Sky (Formerly CUI Devices) TBP02R2-381-09BE	300 V	0.362 in	9.2 mm	Tin	8 A	1	Solder	0.138 in	3.5 mm	UL94 V-0	Vertical	Copper Alloy	9	-40 C	105 ░C	Blue	Header Male Pins Shrouded (4 Side)	3.81 mm	0.15 in	250 V	9	7 A	Through Hole

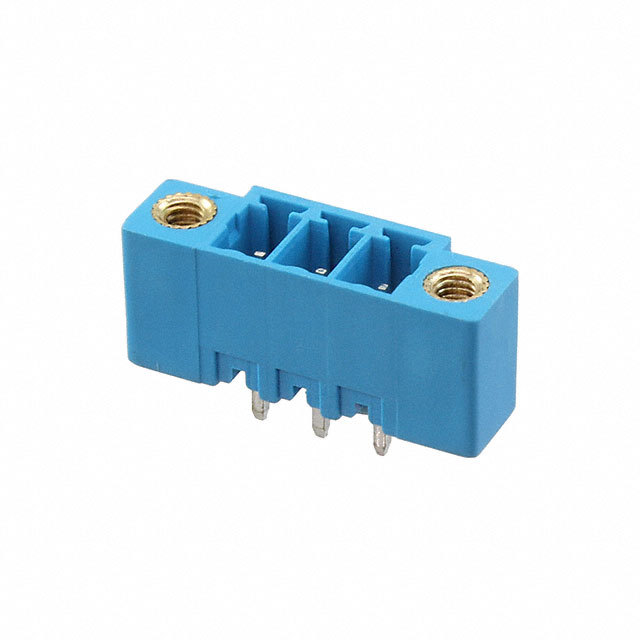

Same Sky (Formerly CUI Devices) TBP02R2W-381-03BE	300 V			Tin	8 A	1	Solder				Vertical			-40 C	105 ░C	Blue	Header Male Pins Shrouded (4 Side)	3.81 mm	0.15 in	250 V	3	7 A	Through Hole	Mating Flange
Same Sky (Formerly CUI Devices) TBP02R2W-381-10BE	300 V			Tin	8 A	1	Solder				Vertical		10	-40 C	105 ░C	Blue	Header Male Pins Shrouded (4 Side)	3.81 mm	0.15 in	250 V	10	7 A	Through Hole	Mating Flange

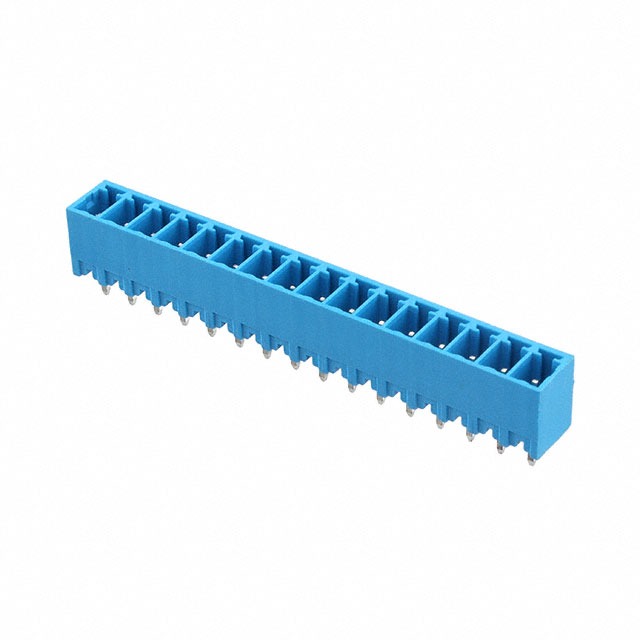

Same Sky (Formerly CUI Devices) TBP02R2-381-16BE	300 V	0.362 in	9.2 mm	Tin	8 A	1	Solder	0.138 in	3.5 mm	UL94 V-0	Vertical	Copper Alloy	16	-40 C	105 ░C	Blue	Header Male Pins Shrouded (4 Side)	3.81 mm	0.15 in	250 V	16	7 A	Through Hole
Same Sky (Formerly CUI Devices) TBP02R2-381-14BE	300 V			Tin	8 A	1	Solder				Vertical		14	-40 C	105 ░C	Blue	Header Male Pins Shrouded (4 Side)	3.81 mm	0.15 in	250 V	14	7 A	Through Hole
Same Sky (Formerly CUI Devices) TBP02R2-381-12BE	300 V	0.362 in	9.2 mm	Tin	8 A	1	Solder	0.138 in	3.5 mm	UL94 V-0	Vertical	Copper Alloy	12	-40 C	105 ░C	Blue	Header Male Pins Shrouded (4 Side)	3.81 mm	0.15 in	250 V	12	7 A	Through Hole
Same Sky (Formerly CUI Devices) TBP02R2W-381-10BE	300 V	0.362 in	9.2 mm	Tin	8 A	1	Solder	0.138 in	3.5 mm	UL94 V-0	Vertical	Copper Alloy	10	-40 C	105 ░C	Blue	Header Male Pins Shrouded (4 Side)	3.81 mm	0.15 in	250 V	10	7 A	Through Hole	Mating Flange
Same Sky (Formerly CUI Devices) TBP02R2W-381-04BE	300 V	0.362 in	9.2 mm	Tin	8 A	1	Solder	0.138 in	3.5 mm	UL94 V-0	Vertical	Copper Alloy	4	-40 C	105 ░C	Blue	Header Male Pins Shrouded (4 Side)	3.81 mm	0.15 in	250 V	4	7 A	Through Hole	Mating Flange
