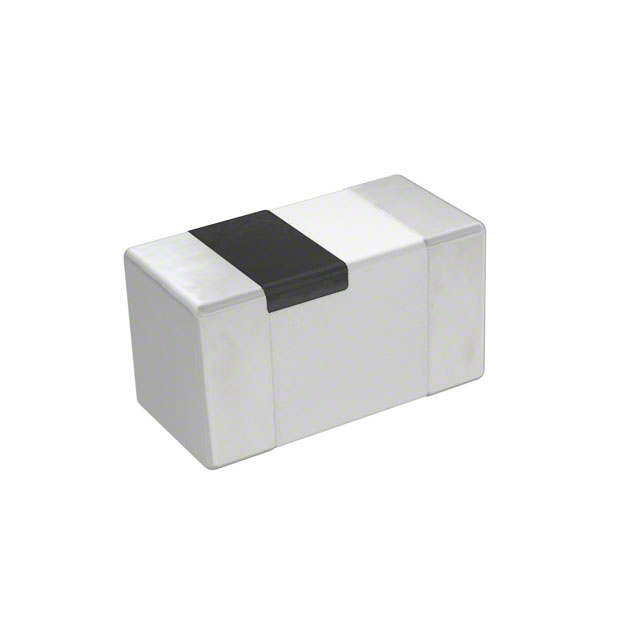

MLG Series

Catalog

RF INDUCTORS - SMD IND 0201 180NH STDQ AEC Q200 RF IND

Part	Material - Core	Frequency - Self Resonant	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Inductance Frequency - Test	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Type	DC Resistance (DCR) [Max]	Q @ Freq	Current Rating (Amps)	Package / Case	Package / Case	Shielding	Supplier Device Package	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Mounting Type	Ratings	Inductance	DC Resistance (DCR)	Q @ Freq [custom]	Q @ Freq [custom]	Height - Seated (Max) [Max]
TDK Corporation MLG0603SR18JTD25	Ceramic Non-Magnetic	560 MHz	0.013 "	0.33 mm	100 MHz	0.012 in	0.024 in	0.3 mm	0.6 mm	Multilayer	8.5 Ohm	5 100 MHz	50 mA	0603 Metric	0201	Unshielded	0603 Metric	0201	-55 C	125 °C	5 %	Surface Mount	AEC-Q200	180 nH
TDK Corporation MLG0603S0N8CT000	Ceramic Non-Magnetic	10 GHz	0.013 "	0.33 mm	100 MHz	0.012 in	0.024 in	0.3 mm	0.6 mm	Multilayer			600 mA	0603 Metric	0201	Unshielded	0603 Metric	0201	-55 C	125 °C	0.2 nH	Surface Mount		0.8 nH	100 mOhm
TDK Corporation MLG0603SR10HT000	Ceramic Non-Magnetic	770 MHz	0.013 "	0.33 mm	100 MHz	0.012 in	0.024 in	0.3 mm	0.6 mm	Multilayer	4.5 Ohm	5 100 MHz	50 mA	0603 Metric	0201	Unshielded	0603 Metric	0201	-55 C	125 °C	3 %	Surface Mount		100 nH
TDK Corporation MLG1005S20NJTD25	Ceramic Non-Magnetic	1.9 GHz		0.55 mm	100 MHz	0.5 mm	1 mm	0.02 in	0.039 "	Multilayer			350 mA		0402 (1005 Metric)	Unshielded		0402 (1005 Metric)	-55 C	125 °C	5 %	Surface Mount	AEC-Q200	20 nH		8	100 MHz	0.022 in
TDK Corporation MLG0603S91NJTD25	Ceramic Non-Magnetic	770 MHz	0.013 "	0.33 mm	100 MHz	0.012 in	0.024 in	0.3 mm	0.6 mm	Multilayer	4.3 Ohm	5 100 MHz	50 mA	0603 Metric	0201	Unshielded	0603 Metric	0201	-55 C	125 °C	5 %	Surface Mount	AEC-Q200	91 nH
TDK Corporation MLG1005SR13JTD25	Ceramic Non-Magnetic	600 MHz		0.55 mm	100 MHz	0.5 mm	1 mm	0.02 in	0.039 "	Multilayer			150 mA		0402 (1005 Metric)	Unshielded		0402 (1005 Metric)	-55 C	125 °C	5 %	Surface Mount	AEC-Q200	130 nH	2.5 Ohm	8	100 MHz	0.022 in
TDK Corporation MLG1005S82NHTD25	Ceramic Non-Magnetic	700 MHz		0.55 mm	100 MHz	0.5 mm	1 mm	0.02 in	0.039 "	Multilayer	1.6 Ohm		0.2 A		0402 (1005 Metric)	Unshielded		0402 (1005 Metric)	-55 C	125 °C	3 %	Surface Mount	AEC-Q200	82 nH				0.022 in
TDK Corporation MLG1005S0N8BTD25	Ceramic Non-Magnetic	10 GHz		0.55 mm	100 MHz	0.5 mm	1 mm	0.02 in	0.039 "	Multilayer			1 A		0402 (1005 Metric)	Unshielded		0402 (1005 Metric)	-55 C	125 °C	0.1 nH	Surface Mount	AEC-Q200	0.8 nH	100 mOhm			0.022 in
TDK Corporation MLG1005S9N1JTD25	Ceramic Non-Magnetic	3 GHz		0.55 mm	100 MHz	0.5 mm	1 mm	0.02 in	0.039 "	Multilayer	300 mOhm		0.5 A		0402 (1005 Metric)	Unshielded		0402 (1005 Metric)	-55 C	125 °C	5 %	Surface Mount	AEC-Q200	9.1 nH		8	100 MHz	0.022 in
TDK Corporation MLG1005SR15JT000	Ceramic Non-Magnetic	550 MHz		0.55 mm	100 MHz	0.5 mm	1 mm	0.02 in	0.039 "	Multilayer	3.5 Ohm		150 mA		0402 (1005 Metric)	Unshielded		0402 (1005 Metric)	-55 C	125 °C	5 %	Surface Mount		150 nH		8	100 MHz	0.022 in
