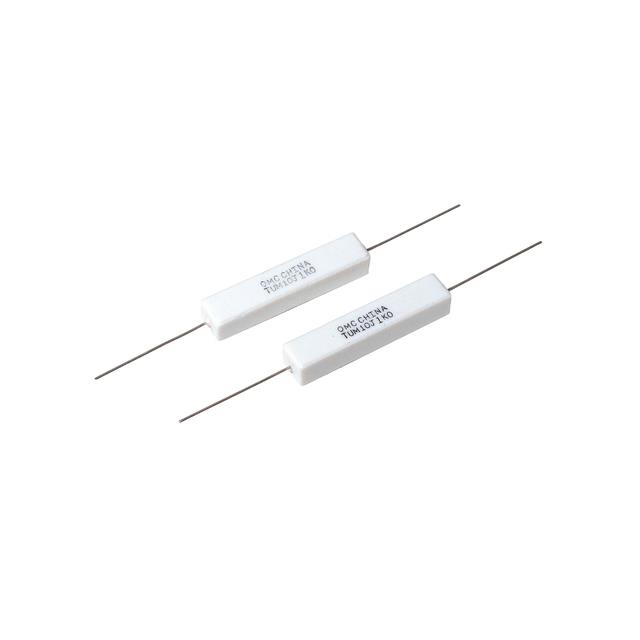

TUW Series

Manufacturer: Ohmite

Catalog

WIREWOUND RESISTORS - THROUGH HOLE 7WATT 1OHM 5% AXIAL

Part	Supplier Device Package	Features	Tolerance	Resistance	Composition	Power (Watts)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Temperature Coefficient	Number of Terminations [custom]	Package / Case	Operating Temperature	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Ohmite TUW7J1R0E	Axial	Flame Proof Safety	5 %	1 Ohms	Wirewound	7 W	9 mm	0.354 "	1.378 in	0.394 in	10 mm	35 mm	±400ppm/°C	2	Axial
Ohmite TUW15J15RE	Axial	Flame Proof Safety	5 %	15 Ohms	Wirewound	15 W	0.453 in 11.5 mm				0.492 in 12.5 mm	1.929 in 49 mm	±400ppm/°C	2	Axial
Ohmite TUW10J2R7E	Axial	Flame Proof Safety	5 %	2.7 Ohms	Wirewound	10 W	9 mm	0.354 "	1.929 "	0.394 "	10 mm	49 mm	±400ppm/°C	2	Axial
Ohmite TUW5JR10E	Axial	Flame Proof Safety	5 %	0.1 Ohms	Wirewound	5 W	9 mm 10 mm	0.354 in 0.394 in	0.866 "	0.394 in 0.866 "	10 mm 22 mm	22 mm	±400ppm/°C	2	Axial	275 °C	10 mm	0.394 in
Ohmite TUW10JR30E	Axial	Flame Proof Safety	5 %	0.3 Ohms	Wirewound	10 W	9 mm	0.354 "	1.929 "	0.394 "	10 mm	49 mm	±400ppm/°C	2	Axial
