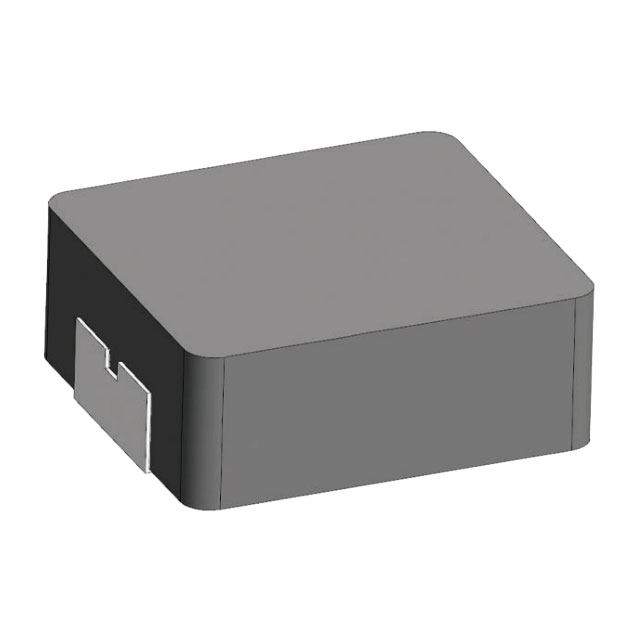

AMPLA7030S Series
Manufacturer: Abracon LLC
Beta
⌘K
POWER INDUCTORS - SMD IND 0.15 UH 27.000 A 1.90 MOHM
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Type | Shielding | Current Rating (Amps) | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Tolerance | Inductance Frequency - Test | Package / Case | DC Resistance (DCR) [Max] | Mounting Type | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Current - Saturation (Isat) | Material - Core | Inductance | DC Resistance (DCR) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Abracon LLC | -55 C | 125 °C | Molded | Shielded | 27 A | 0.118 " | 3 mm | 30 % | 100 kHz | Nonstandard | 1.9 mOhm | Surface Mount | 6.6 mm | 0.287 " | 0.26 in | 7.3 mm | 45 A | Carbonyl Powder | 150 nH | |
 Abracon LLC | -55 C | 125 °C | Molded | Shielded | 27 A | 0.118 " | 3 mm | 30 % | 100 kHz | Nonstandard | 1.9 mOhm | Surface Mount | 6.6 mm | 0.287 " | 0.26 in | 7.3 mm | 45 A | Carbonyl Powder | 160 nH | |
Abracon LLC | -55 C | 125 °C | Molded | Shielded | 25 A | 0.118 " | 3 mm | 30 % | 100 kHz | Nonstandard | Surface Mount | 6.6 mm | 0.287 " | 0.26 in | 7.3 mm | 43 A | Carbonyl Powder | 180 nH | 2.3 mOhm |
