AD5780 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

DIGITAL TO ANALOG CONVERTER, 18 BIT, 3 WIRE, MICROWIRE, QSPI, SERIAL, SPI

Part	Number of Bits	Mounting Type	Settling Time (Typical)	Package Name	Package Width	Package Length	Output Type	Differential Output	Number of D/A Converters	Data Interface	Reference Type	DNL (Max) (LSB)	INL (Max) (LSB)	Package / Case	Voltage - Supply, Analog (Range 2 Min)	Voltage - Supply, Analog (Range 1 Max)	Voltage - Supply, Analog (Range 2 Max)	Voltage - Supply, Analog (Range 1 Min)	Voltage - Supply, Digital (Min)	Voltage - Supply, Digital (Max)	Operating Temperature (Max)	Operating Temperature (Min)	Architecture	Number of DAC's	Settling Time	Contents	DAC Type	Utilized IC / Part
Analog Devices Inc./Maxim Integrated AD5780BCPZ	18 bits	Surface Mount	3.5 µs	24-LFCSP-VQ	5 mm	4 mm	Voltage - Unbuffered	No	1 count	DSP SPI	External	0.75 LSB	1 LSB	24-VFQFN Exposed Pad CSP	-2.5 V	16.5 V	16.5 V	7.5 V	2.7 V	5.5 V	125 °C	-40 °C	R-2R
Analog Devices Inc./Maxim Integrated AD5780ACPZ	18 bits	Surface Mount	3.5 µs	24-LFCSP-VQ	5 mm	4 mm	Voltage - Unbuffered	No	1 count	DSP SPI	External	1 LSB	2 LSB	24-VFQFN Exposed Pad CSP	-2.5 V	16.5 V	16.5 V	7.5 V	2.7 V	5.5 V	125 °C	-40 °C	R-2R
Analog Devices Inc./Maxim Integrated AD5780BCPZ-REEL7	18 bits	Surface Mount	3.5 µs	24-LFCSP-VQ	5 mm	4 mm	Voltage - Unbuffered	No	1 count	DSP SPI	External	0.75 LSB	1 LSB	24-VFQFN Exposed Pad CSP	-2.5 V	16.5 V	16.5 V	7.5 V	2.7 V	5.5 V	125 °C	-40 °C	R-2R

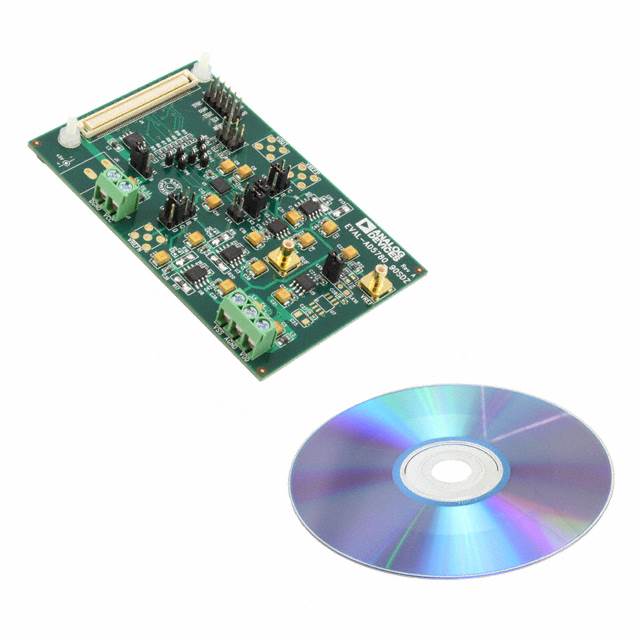

Analog Devices Inc./Maxim Integrated EVAL-AD5780SDZ	18 bits									DSP MICROWIRE™ QSPI™ Serial SPI™														1	2.5 µs	Board Cable	Voltage	AD5780
Analog Devices Inc./Maxim Integrated AD5780ACPZ-REEL7	18 bits	Surface Mount	3.5 µs	24-LFCSP-VQ	5 mm	4 mm	Voltage - Unbuffered	No	1 count	DSP SPI	External	1 LSB	2 LSB	24-VFQFN Exposed Pad CSP	-2.5 V	16.5 V	16.5 V	7.5 V	2.7 V	5.5 V	125 °C	-40 °C	R-2R
