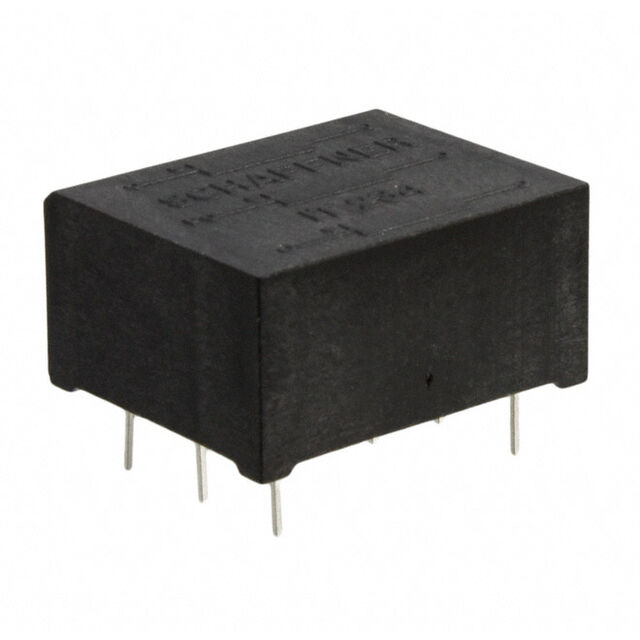

Schaffner IT-Series Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

XFRMR PULSE 1:1:1 DL 2.5MH .1A

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Inductance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Transformer Type	Turns Ratio - Primary:Secondary [custom]	Turns Ratio - Primary:Secondary [custom]	Turns Ratio - Primary:Secondary [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [x]	Size / Dimension [y]	Weight	Weight	Turns Ratio - Primary:Secondary	Weight [diameter]	Weight [diameter]	Turns Ratio - Primary:Secondary [custom]

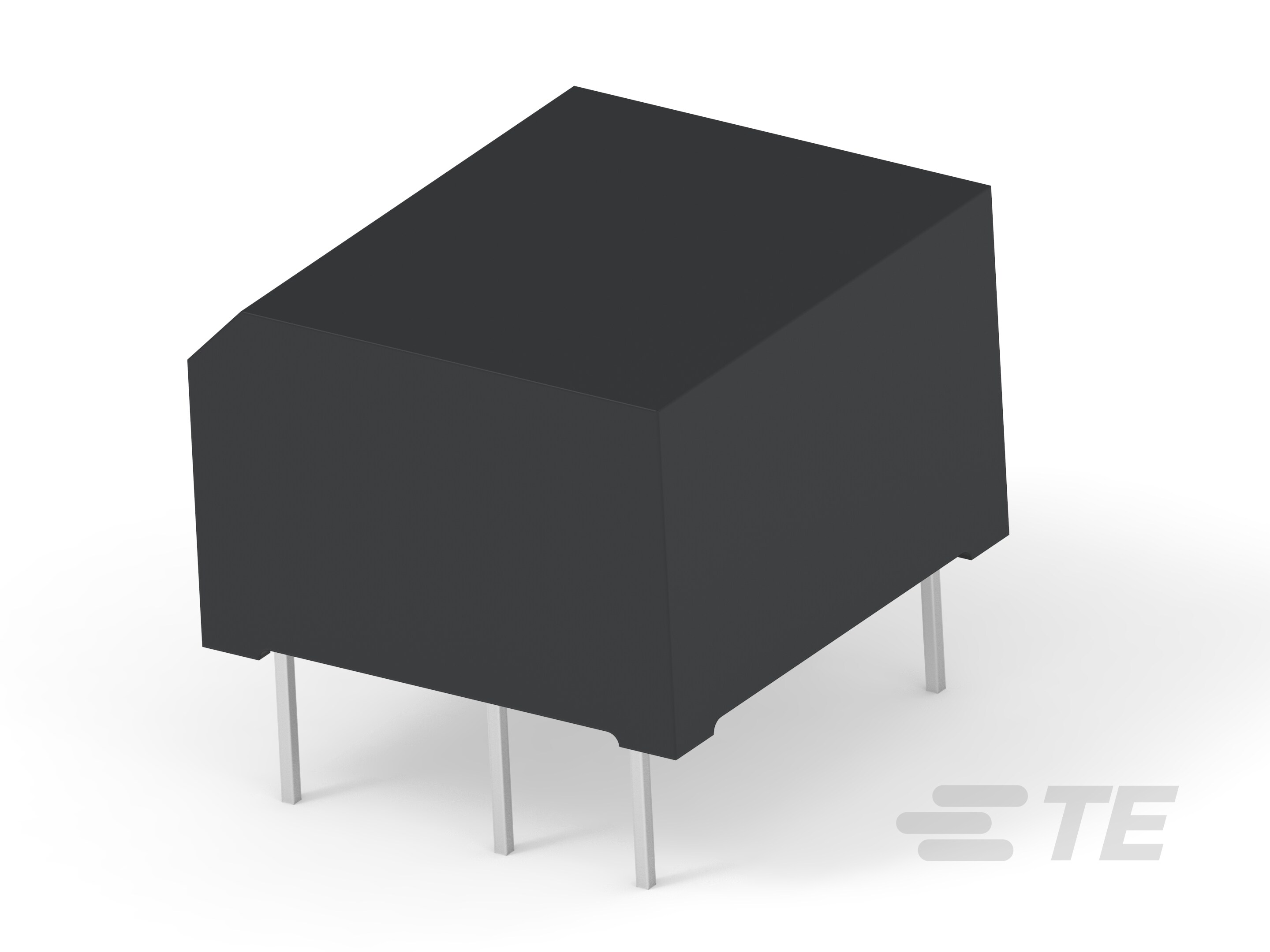

TE Connectivity AMP Connectors IT242	0.445 in	11.3 mm	2.5 mH	0.657 in	0.693 in	17.6 mm	16.7 mm	Data/Voice Coupling	1	1	1	-25 °C	70 °C	Through Hole

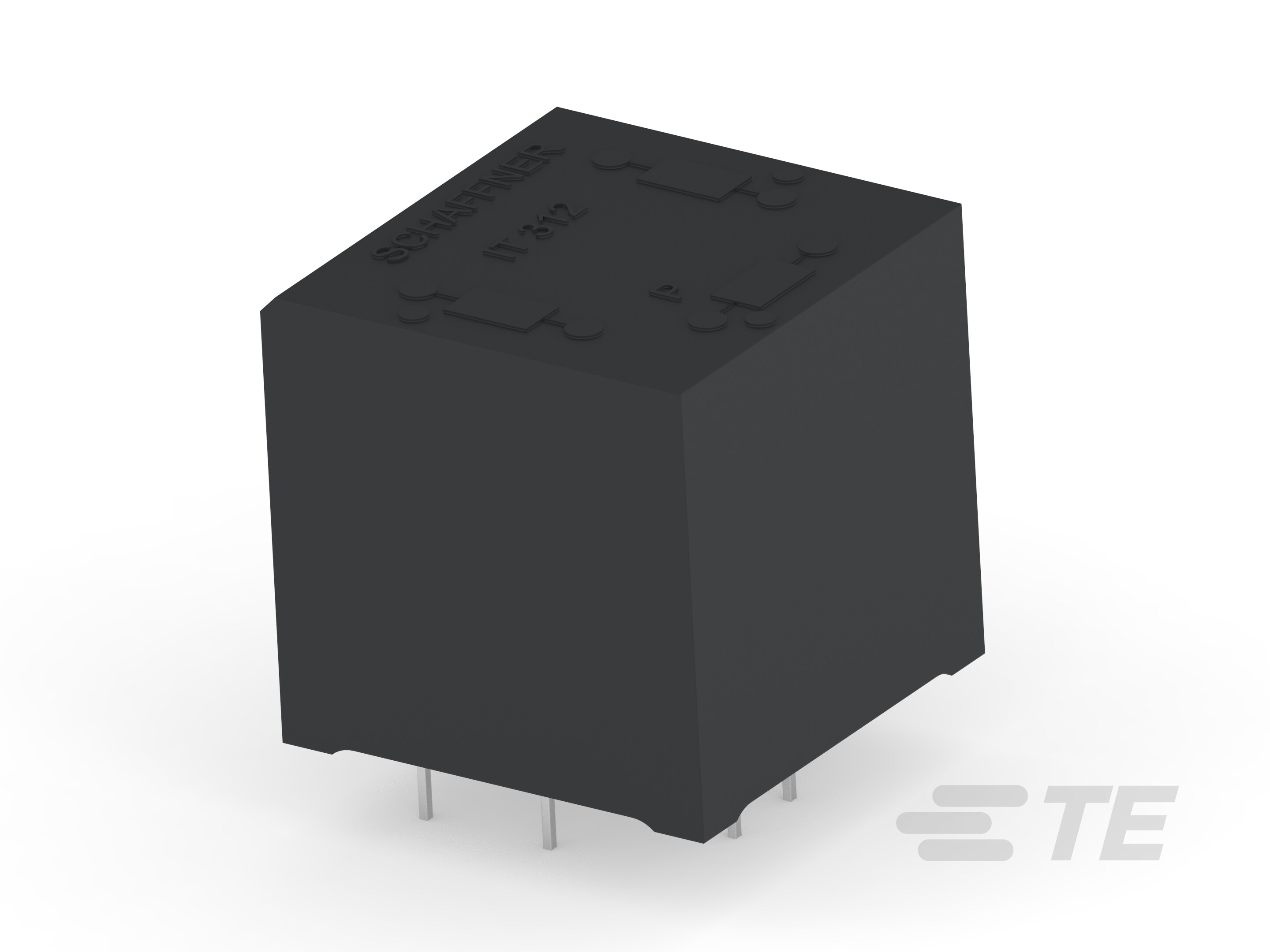

TE Connectivity AMP Connectors IT313			3 mH	1.004 "	1.004 in	25.5 mm	25.5 mm	Data/Voice Coupling	1	1	1	-25 °C	70 °C	Through Hole	0.992 in	25.2 mm

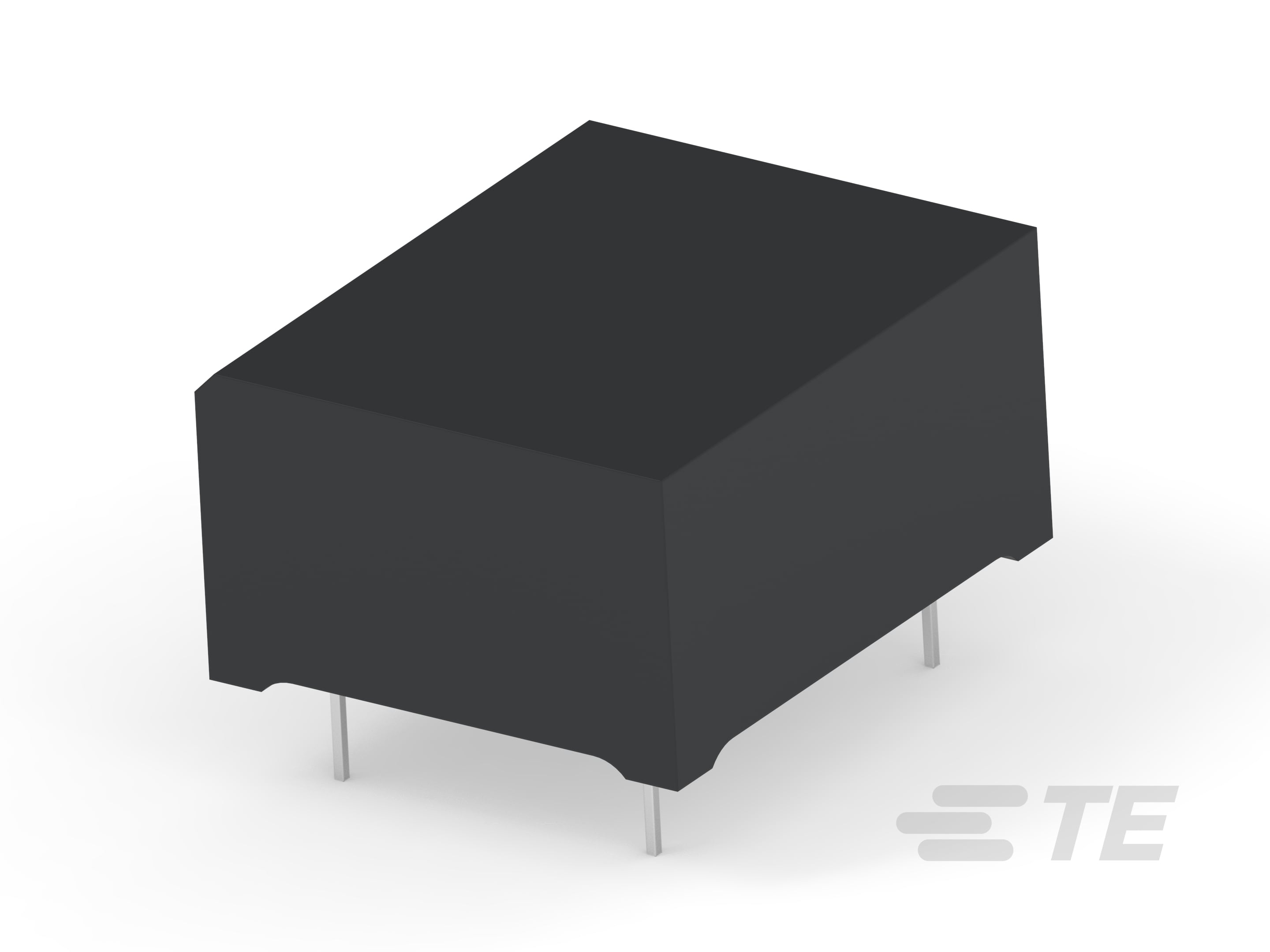

TE Connectivity AMP Connectors IT239			3 mH			27 mm	22.5 mm	Data/Voice Coupling				-25 °C	70 °C	Through Hole			1.063 in	0.886 in	0.46 oz	13.11 g	1:1
TE Connectivity AMP Connectors IT258	0.445 in	11.3 mm	2.5 mH	0.657 in	0.693 in	17.6 mm	16.7 mm	Data/Voice Coupling				-25 °C	70 °C	Through Hole							1:1	0.2 oz	5.7 g
TE Connectivity AMP Connectors IT249	0.445 in	11.3 mm	17 mH	0.657 in	0.693 in	17.6 mm	16.7 mm	Data/Voice Coupling	2	1		-25 °C	70 °C	Through Hole										1
TE Connectivity AMP Connectors IT143			15 mH			27 mm	22.5 mm	Data/Voice Coupling	1	1	1	-25 °C	70 °C	Through Hole			1.063 in	0.886 in	0.5 oz	14.25 g
TE Connectivity AMP Connectors IT253	0.445 in	11.3 mm	1.1 mH	0.657 in	0.693 in	17.6 mm	16.7 mm	Data/Voice Coupling	1	1	1	-25 °C	70 °C	Through Hole								0.2 oz	5.7 g
TE Connectivity AMP Connectors IT239			3 mH			27 mm	22.5 mm	Data/Voice Coupling				-25 °C	70 °C	Through Hole			1.063 in	0.886 in			1:1
TE Connectivity AMP Connectors IT237			25 mH			27 mm	22.5 mm	Data/Voice Coupling				-25 °C	70 °C	Through Hole			1.063 in	0.886 in	0.5 oz	14.25 g	1:1
TE Connectivity AMP Connectors IT242	0.445 in	11.3 mm	2.5 mH	0.657 in	0.693 in	17.6 mm	16.7 mm	Data/Voice Coupling	1	1	1	-25 °C	70 °C	Through Hole								0.2 oz	5.7 g
