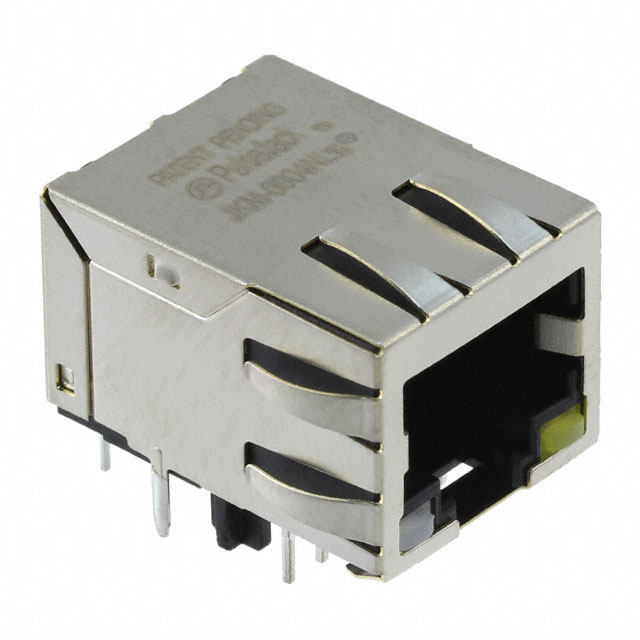

JKM Series
Modular Connectors / Ethernet Connectors 1000Base-T NonPoE 1-Port RJ45 THT
Manufacturer: Pulse Electronics
Catalog
Modular Connectors / Ethernet Connectors 1000Base-T NonPoE 1-Port RJ45 THT
Beta
⌘K
Modular Connectors / Ethernet Connectors 1000Base-T NonPoE 1-Port RJ45 THT
Modular Connectors / Ethernet Connectors 1000Base-T NonPoE 1-Port RJ45 THT
Modular Connectors / Ethernet Connectors 1000Base-T NonPoE 1-Port RJ45 THT
| Part | Housing Material | Contact Finish Thickness | Contact Finish Thickness | Shield Material | Height Above Board | Height Above Board | Applications | Connector Type | Termination | Orientation | Features | LED Color | Number of Cores per Jack | Contact Finish | Mounting Type | Shielding | Operating Temperature [Max] | Operating Temperature [Min] | Number of Rows | Tab Direction | Contact Material | Number of Ports |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pulse Electronics | Thermoplastic | 0.38 µm | 15 µin | Copper Alloy | 0.545 in | 13.84 mm | 10/100/1000 Base-T AutoMDIX | RJ45 | Solder | 90 ° | Board Guide | Green - Yellow | 8 | Gold | Through Hole | EMI Finger Shielded | 70 °C | 0 °C | 1 | Down | Phosphor Bronze | 1 |
