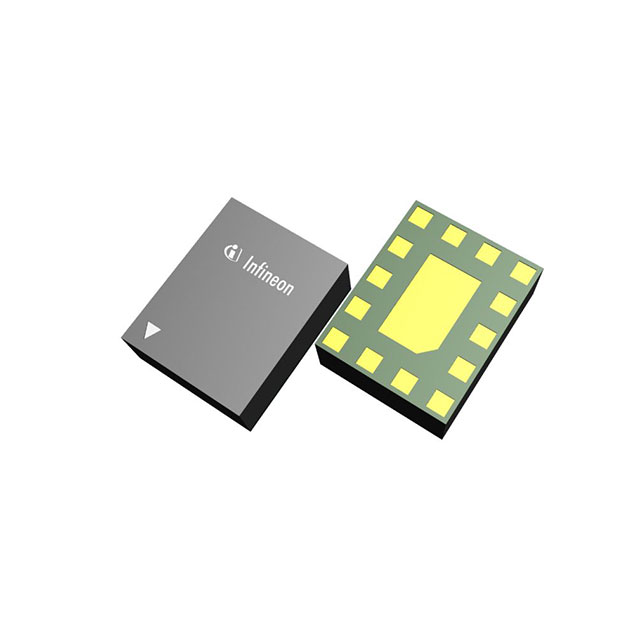

BGS15MU14 Series
Manufacturer: INFINEON
Beta
⌘K
RF SWITCH, 0.4-6GHZ, -40 TO 85DEG C ROHS COMPLIANT: YES
| Part | Package / Case | Impedance | Voltage - Supply [Max] | Voltage - Supply [Min] | Test Frequency | RF Type | Mounting Type | Frequency Range [Max] | Frequency Range [Min] | Supplier Device Package | Isolation | Circuit | Operating Temperature [Max] | Operating Temperature [Min] | Insertion Loss |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | 14-UFLGA Exposed Pad | 50 Ohms | 1.95 V | 1.65 V | 5.925 GHz | General Purpose | Surface Mount | 6 GHz | 400 MHz | PG-ULGA-14-1 | 48 dB | SP5T | 85 C | -40 ¯C | 1.05 dB |
