2204 Series

Catalog

RELAY REED SPST 500MA 12V

Part	Coil Resistance	Mounting Type	Release Time	Coil Voltage	Operate Time	Contact Rating (Current)	Contact Form	Must Operate Voltage	Coil Type	Must Release Voltage	Switching Voltage [Max]	Seal Rating	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Coil Current	Features
COTO TECHNOLOGY 2204-12-301	1.5 kOhms	Through Hole	0.1 ms	12 VDC	500 µs	0.5 A	SPST-NO (1 Form A)	9 VDC	Non Latching	1 VDC	200 VDC 200 VAC	Sealed - Hermetically	PC Pin	85 °C	-20 ░C

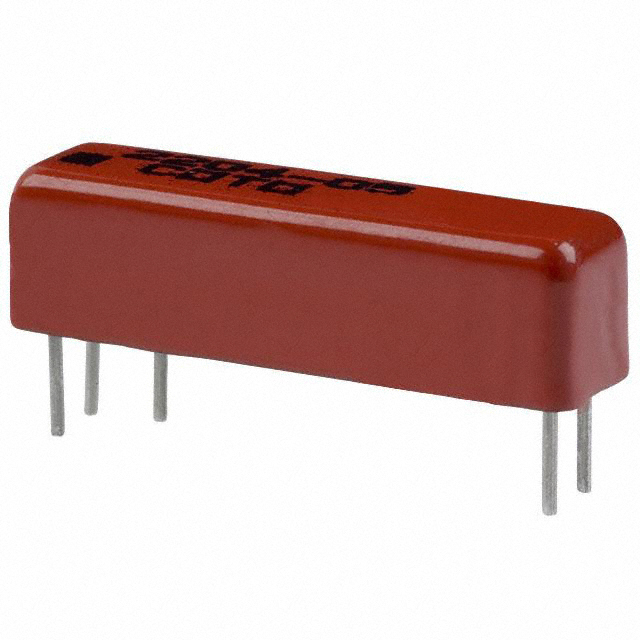

COTO TECHNOLOGY 2204-05-411	370 Ohms	Through Hole	0.1 ms	5 VDC	500 µs	0.5 A	SPST-NO (1 Form A)	3.8 VDC	Non Latching	0.4 VDC	200 VDC 200 VAC	Sealed - Hermetically	PC Pin	85 °C	-20 ░C	13.5 mA
COTO TECHNOLOGY 2204-05-401	370 Ohms	Through Hole	0.1 ms	5 VDC	500 µs	0.5 A	SPST-NO (1 Form A)	3.8 VDC	Non Latching	0.4 VDC	200 VDC 200 VAC	Sealed - Hermetically	PC Pin	85 °C	-20 ░C	13.5 mA
COTO TECHNOLOGY 2204-12-321	1.5 kOhms	Through Hole	0.1 ms	12 VDC	500 µs	0.5 A	SPST-NO (1 Form A)	9 VDC	Non Latching	1 VDC	200 VDC 200 VAC		PC Pin	85 °C	-20 ░C		Sealed - Hermetically
COTO TECHNOLOGY 2204-12-311	1.5 kOhms	Through Hole	0.1 ms	12 VDC	500 µs	0.5 A	SPST-NO (1 Form A)	9 VDC	Non Latching	1 VDC	200 VDC 200 VAC	Sealed - Hermetically	PC Pin	85 °C	-20 ░C
COTO TECHNOLOGY 2204-05-421	370 Ohms	Through Hole	0.1 ms	5 VDC	500 µs	0.5 A	SPST-NO (1 Form A)	3.8 VDC	Non Latching	0.4 VDC	200 VDC 200 VAC		PC Pin	85 °C	-20 ░C	13.5 mA	Sealed - Hermetically
