Power Inductors - SMD 36uH 6*6*3
Power Inductors - SMD 36uH 6*6*3
| Part | DC Resistance (DCR) | Current - Saturation (Isat) | Mounting Type | Type | Current Rating (Amps) | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Shielding | Inductance Frequency - Test | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Tolerance | Inductance | Material - Core |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

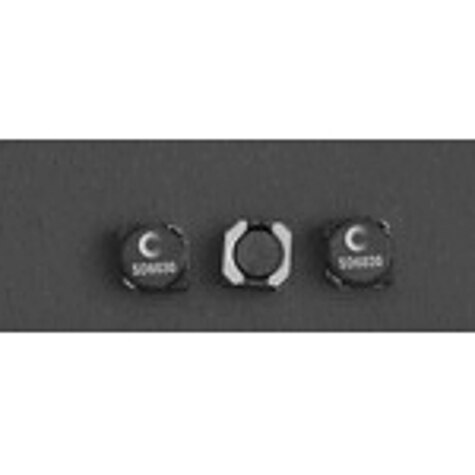

 Eaton - Electronics Division | 212 mOhm | 700 mA | Surface Mount | Drum Core Wirewound | 1.19 A | 0.236 " | 6 mm | 0.236 in | 6 mm | Shielded | 100 kHz | 0.118 " | 3 mm | 125 °C | -40 C | Nonstandard | 30 % | 34.4 µH | Ferrite |

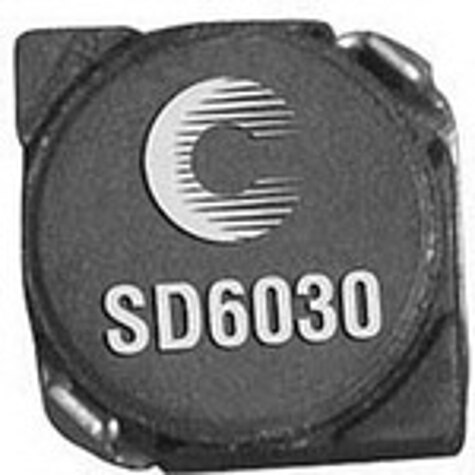

 Eaton - Electronics Division | 110 mOhm | 1 A | Surface Mount | Drum Core Wirewound | 1.65 A | 0.236 " | 6 mm | 0.236 in | 6 mm | Shielded | 100 kHz | 0.118 " | 3 mm | 125 °C | -40 C | Nonstandard | 30 % | 17.1 µH | Ferrite |
