TX25-100 Series

Catalog

CONN PLUG 100POS VERT GOLD

Part	Contact Finish	Features	Number of Positions	Mated Stacking Heights	Number of Rows [custom]	Mounting Type	Pitch	Pitch	Height Above Board [z]	Height Above Board [z]	Contact Finish Thickness	Contact Finish Thickness

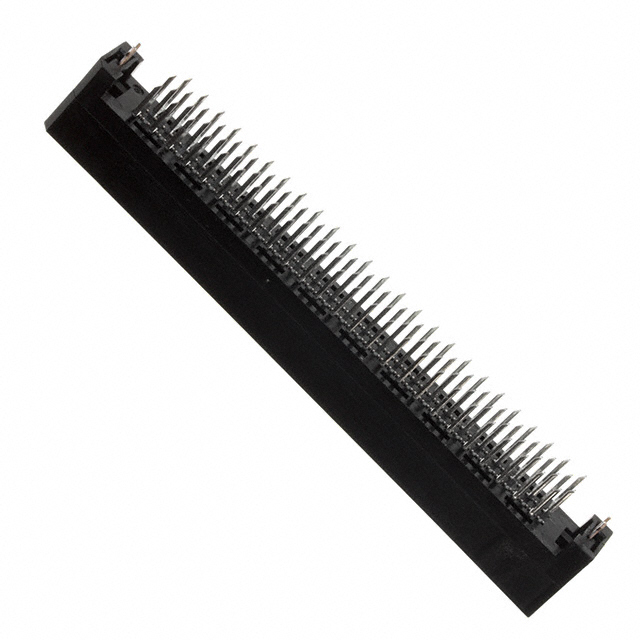

JAE Electronics TX25-100P-8ST-H1E	Gold	Board Lock	100	14 mm 18 mm 20 mm	2	Through Hole	0.05 in	1.27 mm	11.2 mm	0.441 in	0.1 Ám	4 Áin

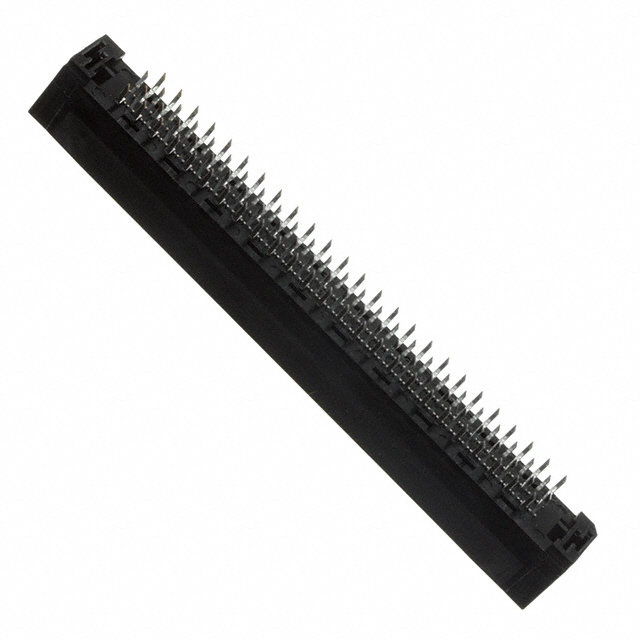

JAE Electronics TX25-100P-6ST-N1E	Gold		100	12 mm 16 mm 18 mm	2	Through Hole	0.05 in	1.27 mm	9.2 mm	0.362 in	0.1 Ám	4 Áin

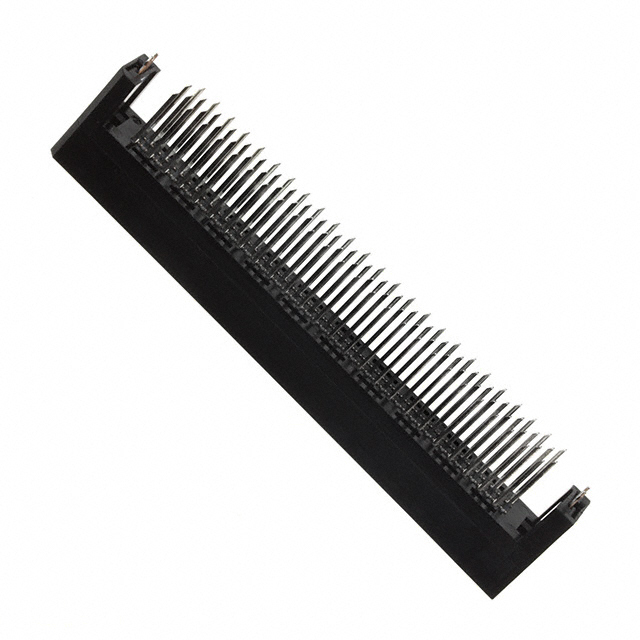

JAE Electronics TX25-100P-12ST-H1E	Gold	Board Lock	100	18 mm 22 mm 24 mm	2	Through Hole	0.05 in	1.27 mm	15.2 mm	0.598 "	0.1 Ám	4 Áin
JAE Electronics TX25-100P-LT-N1E	Gold		100		2	Right Angle Through Hole	0.05 in	1.27 mm	9 mm	0.354 in	0.1 Ám	4 Áin

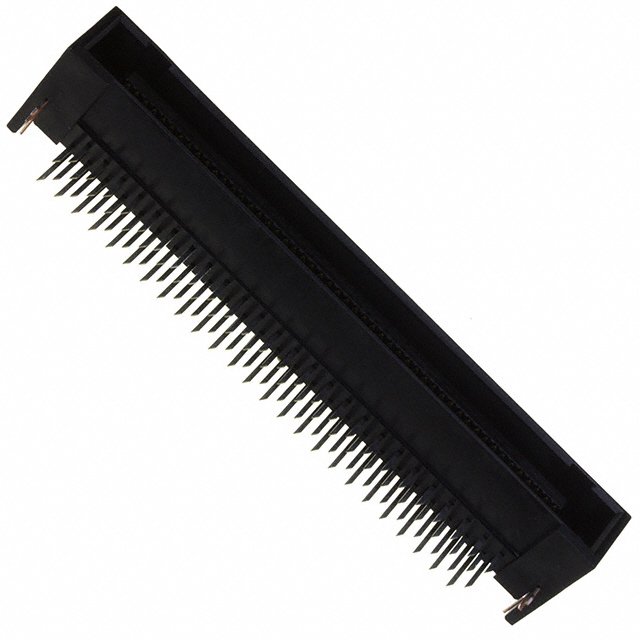

JAE Electronics TX25-100P-LT-H1E	Gold	Board Lock	100		2	Right Angle Through Hole	0.05 in	1.27 mm	9 mm	0.354 in	0.1 Ám	4 Áin

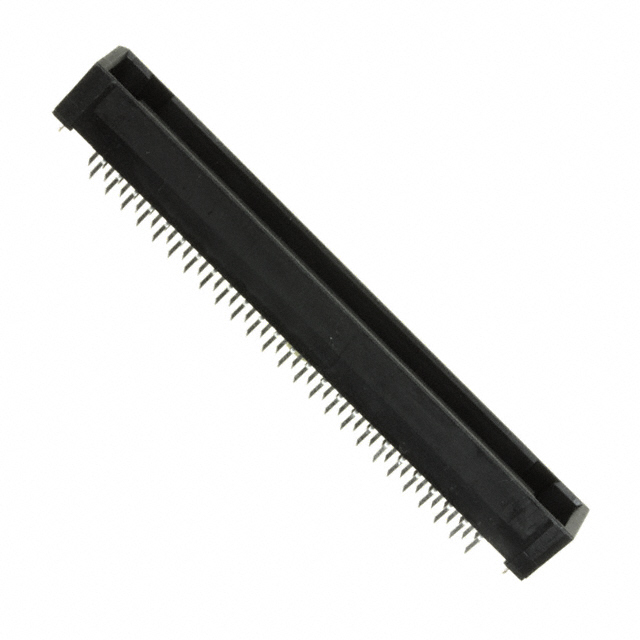

JAE Electronics TX25-100P-6ST-H1E	Gold	Board Lock	100	12 mm 16 mm 18 mm	2	Through Hole	0.05 in	1.27 mm	9.2 mm	0.362 in	0.1 Ám	4 Áin

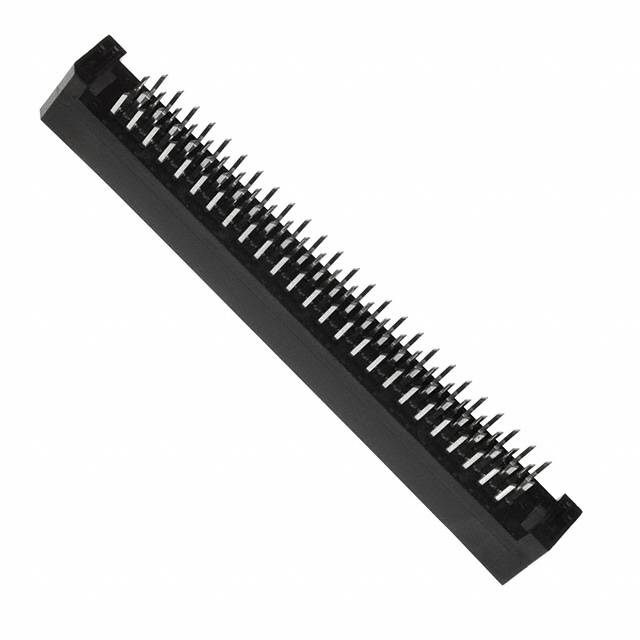

JAE Electronics TX25-100P-8ST-N1E	Gold		100	14 mm 18 mm 20 mm	2	Through Hole	0.05 in	1.27 mm	11.2 mm	0.441 in	0.1 Ám	4 Áin

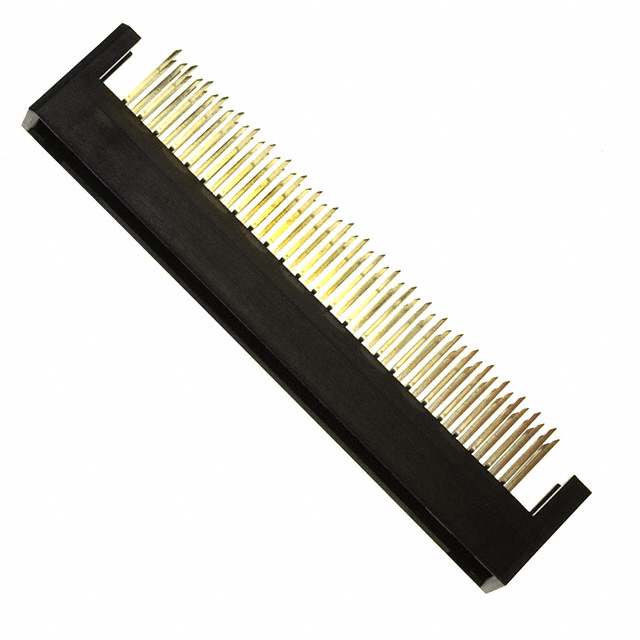

JAE Electronics TX25-100P-12ST-N1E	Gold		100	18 mm 22 mm 24 mm	2	Through Hole	0.05 in	1.27 mm	15.2 mm	0.598 "	0.1 Ám	4 Áin
