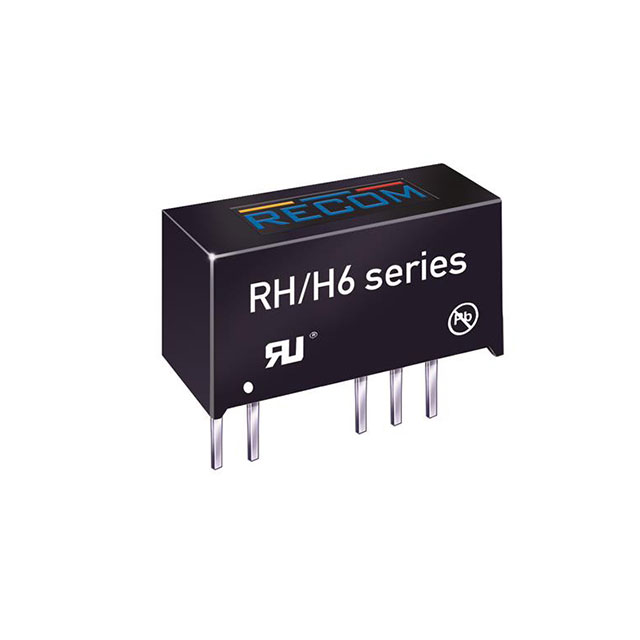

RH/H6 Series

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 1W 24VIN +/-5VOUT +/-100MA SIP7

Part	Efficiency	Features	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Package / Case	Voltage - Isolation	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Number of Outputs	Voltage - Output 2	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max)	Current - Output (Max)	Voltage - Output 1	Applications	Mounting Type	Type	Current - Output (Max)	Current - Output (Max) [Max]	Current - Output (Max) [Min]
Recom Power RH-2405D/H6	77 %	SCP	0.28 in	0.4 "	0.77 in	7 mm	19.6 mm	10.2 mm	7-SIP Module 5 Leads	6.4 kV	21.6 V	26.4 V	2	-5 V	90 °C	-40 C	100 mA	100 mA	5 V	ITE (Commercial)	Through Hole	Isolated Module

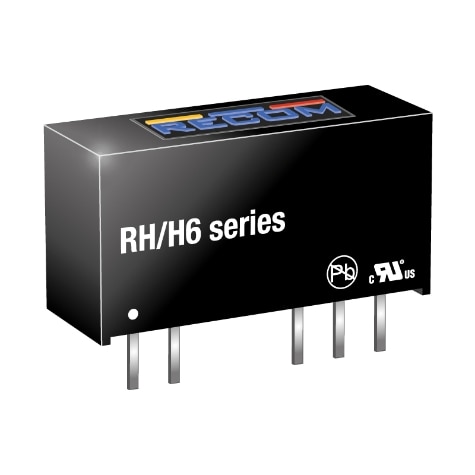

Recom Power RH-0505D/H6	77 %	SCP	0.28 in	0.4 "	0.77 in	7 mm	19.6 mm	10.2 mm	7-SIP Module 5 Leads	6.4 kV	4.5 V	5.5 V	2	-5 V	90 °C	-40 C	100 mA	100 mA	5 V	ITE (Commercial)	Through Hole	Isolated Module
Recom Power RH-1512D/H6	80 %	SCP	0.28 in	0.4 "	0.77 in	7 mm	19.6 mm	10.2 mm	7-SIP Module 5 Leads	6.4 kV	13.5 V	16.5 V	2	-12 V	90 °C	-40 C			12 V	ITE (Commercial)	Through Hole	Isolated Module	42 mA
Recom Power RH-153.3D/H6	74 %	SCP	0.28 in	0.4 "	0.77 in	7 mm	19.6 mm	10.2 mm	7-SIP Module 5 Leads	6.4 kV	13.5 V	16.5 V	2	-3.3 V	90 °C	-40 C		152 mA	3.3 V	ITE (Commercial)	Through Hole	Isolated Module	152 mA
Recom Power RH-123.3D/H6	74 %	SCP	0.28 in	0.4 "	0.77 in	7 mm	19.6 mm	10.2 mm	7-SIP Module 5 Leads	6.4 kV	10.8 V	13.2 V	2	-3.3 V	90 °C	-40 C		152 mA	3.3 V	ITE (Commercial)	Through Hole	Isolated Module	152 mA
Recom Power RH-1205D/H6	77 %	SCP	0.28 in	0.4 "	0.77 in	7 mm	19.6 mm	10.2 mm	7-SIP Module 5 Leads	6.4 kV	10.8 V	13.2 V	2	-5 V	90 °C	-40 C	100 mA	100 mA	5 V	ITE (Commercial)	Through Hole	Isolated Module
Recom Power RH-0515D/H6	80 %	SCP	0.28 in	0.4 "	0.77 in	7 mm	19.6 mm	10.2 mm	7-SIP Module 5 Leads	6.4 kV	4.5 V	5.5 V	2	-15 V	90 °C	-40 C			15 V	ITE (Commercial)	Through Hole	Isolated Module		33 mA	33 mA
Recom Power RH-1212D/H6	80 %	SCP	0.28 in	0.4 "	0.77 in	7 mm	19.6 mm	10.2 mm	7-SIP Module 5 Leads	6.4 kV	10.8 V	13.2 V	2	-12 V	90 °C	-40 C			12 V	ITE (Commercial)	Through Hole	Isolated Module	42 mA
Recom Power RH-0512D/H6	80 %	SCP	0.28 in	0.4 "	0.77 in	7 mm	19.6 mm	10.2 mm	7-SIP Module 5 Leads	6.4 kV	4.5 V	5.5 V	2	-12 V	90 °C	-40 C			12 V	ITE (Commercial)	Through Hole	Isolated Module	42 mA
Recom Power RH-2415D/H6	80 %	SCP	0.28 in	0.4 "	0.77 in	7 mm	19.6 mm	10.2 mm	7-SIP Module 5 Leads	6.4 kV	21.6 V	26.4 V	2	-15 V	90 °C	-40 C			15 V	ITE (Commercial)	Through Hole	Isolated Module		33 mA	33 mA
