SSF67A25 Series
Manufacturer: Sensata Technologies
Beta
⌘K

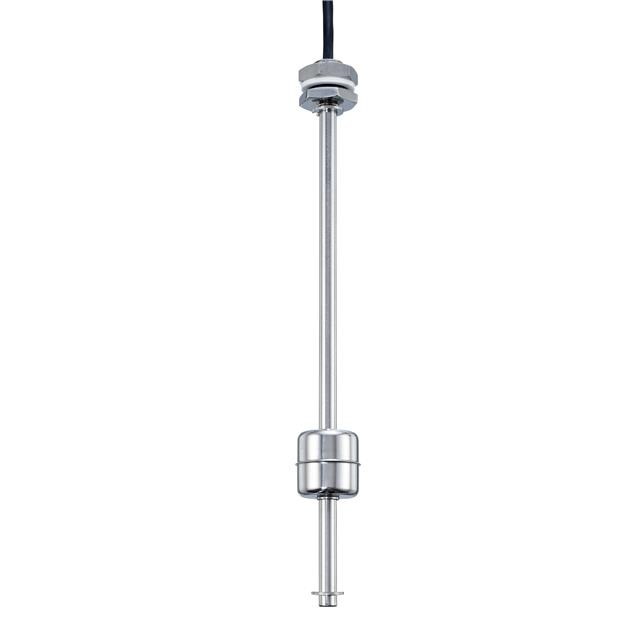

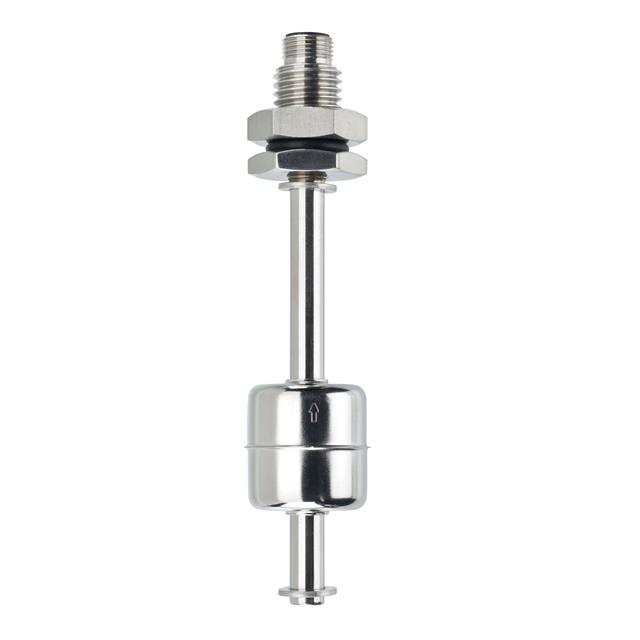

DL LVL FLOATSW 277MM TOTAL L
| Part | Minimum Liquid Specific Gravity [Min] | Switch Actuation Level | Switch Actuation Level | Operating Temperature | Voltage Rating | Mounting Type | Output Type | Material - Housing & Prism | Type | Output Configuration | Current |
|---|---|---|---|---|---|---|---|---|---|---|---|
 Sensata Technologies | 0.8 | 25 mm 250 mm | 0.984 in 9.842 in | 135 °C | 120 VDC 250 VAC | M16x2 Thread Panel Mount | Switch (2) (Single Float) | 316 Stainless Steel | Liquid | SPST-NC SPST-NO | 600 mA |
 Sensata Technologies | 0.8 | 0.984 in 3.937 " 25 mm 100 mm | 135 °C | 120 VDC 240 VAC | M16x2 Thread Panel Mount | Switch (2) (Single Float) | 316 Stainless Steel | Liquid | SPST-NC SPST-NO | 600 mA | |
 Sensata Technologies | 0.8 | 0.984 in 6.89 in 25 mm 175 mm | 135 °C | 120 VDC 250 VAC | M16x2 Thread Panel Mount | Switch (2) (Single Float) | 316 Stainless Steel | Liquid | SPST-NC SPST-NO | 600 mA | |
 Sensata Technologies | 0.8 | 0.984 in 2.953 " | 25 mm 75 mm | 135 °C | 120 VDC 240 VAC | M16x2 Thread Panel Mount | Switch (2) (Single Float) | 316 Stainless Steel | Liquid | SPST-NC SPST-NO | 600 mA |
 Sensata Technologies | 0.8 | 25 mm 150 mm | 0.984 in 5.906 in | 135 °C | 120 VDC 240 VAC | M16x2 Thread Panel Mount | Switch (2) (Single Float) | 316 Stainless Steel | Liquid | SPST-NC SPST-NO | 600 mA |
