1053-2 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT .032-.046 PRESSFIT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Socket Depth	Socket Depth	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Termination	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Tail Type	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Flange Diameter [diameter]	Flange Diameter [diameter]	Tail Diameter [diameter]	Tail Diameter [diameter]	Contact Finish	Length - Overall [x]	Length - Overall [x]
Mill-Max Manufacturing Corp. 1053-2-17-01-34-01-02-0	-55 C	125 °C	0.22 in	5.59 mm	0.083 in	2.11 mm	Press-Fit	1.63 mm	0.064 in	Wire Wrap	Beryllium Copper	200 Áin	5.08 Ám	1.17 mm	0.81 mm	0.046 "	0.032 "	0.09 in	2.29 mm	0.025 in	0.64 mm	Tin-Lead	15.5 mm	0.61 in
Mill-Max Manufacturing Corp. 1053-2-17-01-34-27-02-0	-55 C	125 °C	0.22 in	5.59 mm	0.083 in	2.11 mm	Press-Fit	1.63 mm	0.064 in	Wire Wrap	Beryllium Copper	30 Áin	0.76 Ám	1.17 mm	0.81 mm	0.046 "	0.032 "	0.09 in	2.29 mm	0.025 in	0.64 mm	Gold	15.5 mm	0.61 in
Mill-Max Manufacturing Corp. 1053-2-17-15-34-27-02-0	-55 C	125 °C	0.22 in	5.59 mm	0.083 in	2.11 mm	Press-Fit	1.63 mm	0.064 in	Wire Wrap	Beryllium Copper	30 Áin	0.76 Ám	1.17 mm	0.81 mm	0.046 "	0.032 "	0.09 in	2.29 mm	0.025 in	0.64 mm	Gold	15.5 mm	0.61 in
Mill-Max Manufacturing Corp. 1053-2-17-80-34-14-02-0	-55 C	125 °C	0.22 in	5.59 mm	0.083 in	2.11 mm	Press-Fit	1.63 mm	0.064 in	Wire Wrap	Beryllium Copper	10 Áin	0.25 Ám	1.17 mm	0.81 mm	0.046 "	0.032 "	0.09 in	2.29 mm	0.025 in	0.64 mm	Gold	15.5 mm	0.61 in
Mill-Max Manufacturing Corp. 1053-2-17-80-34-27-02-0	-55 C	125 °C	0.22 in	5.59 mm	0.083 in	2.11 mm	Press-Fit	1.63 mm	0.064 in	Wire Wrap	Beryllium Copper	30 Áin	0.76 Ám	1.17 mm	0.81 mm	0.046 "	0.032 "	0.09 in	2.29 mm	0.025 in	0.64 mm	Gold	15.5 mm	0.61 in
Mill-Max Manufacturing Corp. 1053-2-17-15-34-14-02-0	-55 C	125 °C	0.22 in	5.59 mm	0.083 in	2.11 mm	Press-Fit	1.63 mm	0.064 in	Wire Wrap	Beryllium Copper	10 Áin	0.25 Ám	1.17 mm	0.81 mm	0.046 "	0.032 "	0.09 in	2.29 mm	0.025 in	0.64 mm	Gold	15.5 mm	0.61 in

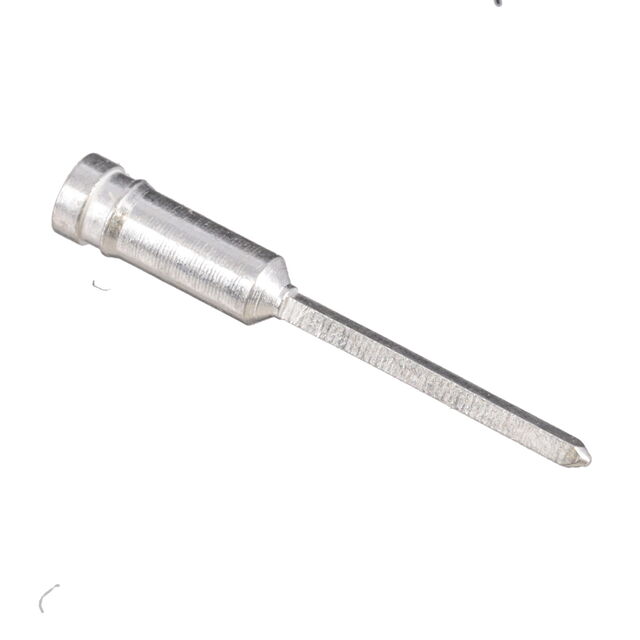

Mill-Max Manufacturing Corp. 1053-2-17-80-34-80-02-0	-55 C	125 °C	0.22 in	5.59 mm	0.083 in	2.11 mm	Press-Fit	1.63 mm	0.064 in	Wire Wrap	Beryllium Copper	200 Áin	5.08 Ám	1.17 mm	0.81 mm	0.046 "	0.032 "	0.09 in	2.29 mm	0.025 in	0.64 mm	Tin	15.5 mm	0.61 in
