6000UH Series
Manufacturer: Belden Inc.
Beta
⌘K

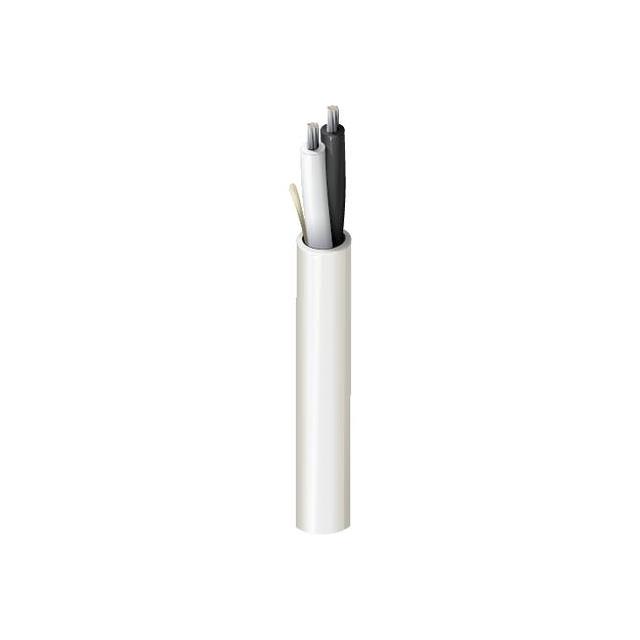

CABLE 2COND 12AWG NATURAL
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Strand [custom] | Conductor Strand [custom] | Jacket Color | Ratings | Conductor Insulation | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Conductor Material | Number of Conductors | Features | Usage | Voltage | Jacket (Insulation) Material | Wire Gauge | Length | Length | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 75 ░C | 0 °C | 19 | 25 AWG | Natural | UL Style CL2P | Low Smoke Poly-Vinyl Chloride (LSPVC) | 0.252 in | 6.4 mm | Multi-Conductor | Copper Tinned | 2 | Rip Cord | Security Sound | 150 V | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | 12 AWG | 304.8 m | 1000 ft | 0.381 mm | 0.015 in |
Belden Inc. | 75 ░C | 0 °C | 19 | 25 AWG | Black | UL Style CL2P | Low Smoke Poly-Vinyl Chloride (LSPVC) | 0.252 in | 6.4 mm | Multi-Conductor | Copper Tinned | 2 | Rip Cord | Security Sound | 150 V | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | 12 AWG | 304.8 m | 1000 ft | 0.381 mm | 0.015 in |
Belden Inc. | 75 ░C | 0 °C | 19 | 25 AWG | Natural | UL Style CL2P | Low Smoke Poly-Vinyl Chloride (LSPVC) | 0.252 in | 6.4 mm | Multi-Conductor | Copper Tinned | 2 | Rip Cord | Security Sound | 150 V | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | 12 AWG | 152.4 m | 500 ft | 0.381 mm | 0.015 in |
