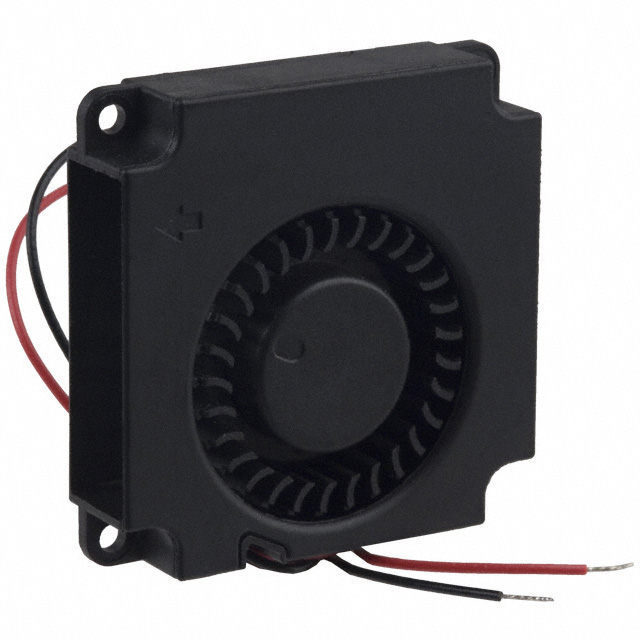

BFB0405 Series

Catalog

FAN BLOWER, 5 VDC, DC, 40 MM, 10 MM, 3 CFM

Part	Voltage Range [Max]	Voltage Range [Min]	Material - Frame	Material - Blade	Lifetime @ Temp.	Voltage - Rated	Bearing Type	Operating Temperature [Max]	Operating Temperature [Min]	Noise	RPM	Features	Air Flow	Air Flow	Size / Dimension [x]	Size / Dimension [z]	Width [y]	Static Pressure	Static Pressure	Power (Watts)	Termination	Weight [custom]	Weight [custom]	Fan Type	Approval Agency	Current Rating (Amps)

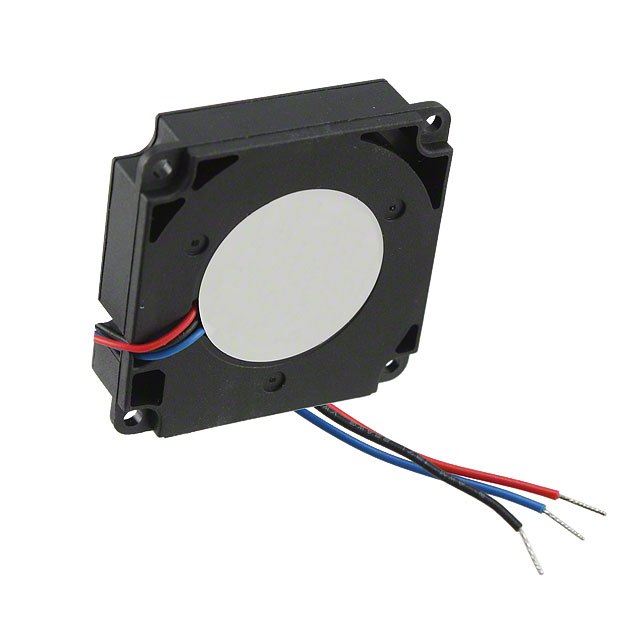

Delta Electronics BFB0405HHA-AF00	5.5 V	4 VDC	Plastic	Plastic	30000 Hrs	5 V	Ball	70 °C	-10 °C	34.5 dB(A)	8500 RPM	Locked Rotor Protection Speed Sensor (Tach)	3 CFM	0.084 mł/min	40 mm	40 mm	10 mm	0.564 in H2O	140.5 Pa	0.8 W	3 Wire Leads	12.25 g	0.027 lb	Blower	CE CSA UL VDE
Delta Electronics BFB0405LA-A	5.5 V	4 VDC	Plastic	Plastic	30000 Hrs	5 V	Ball	70 °C	-10 °C	28 dB	5500 RPM		1.9 CFM	0.053 mł/min	40 mm	40 mm	10 mm	0.211 in H2O	52.6 Pa	350 mW	2 Wire Leads	12.25 g	0.027 lb	Blower	CE CSA UL VDE	60 mA
Delta Electronics BFB0405HHA-AR00	5.5 V	4 VDC	Plastic	Plastic	30000 Hrs	5 V	Ball	70 °C	-10 °C	34.5 dB(A)	8500 RPM	Locked Rotor Sensor	3 CFM	0.084 mł/min	40 mm	40 mm	10 mm	0.564 in H2O	140.5 Pa	0.8 W	3 Wire Leads	12.25 g	0.027 lb	Blower	CE CSA UL VDE

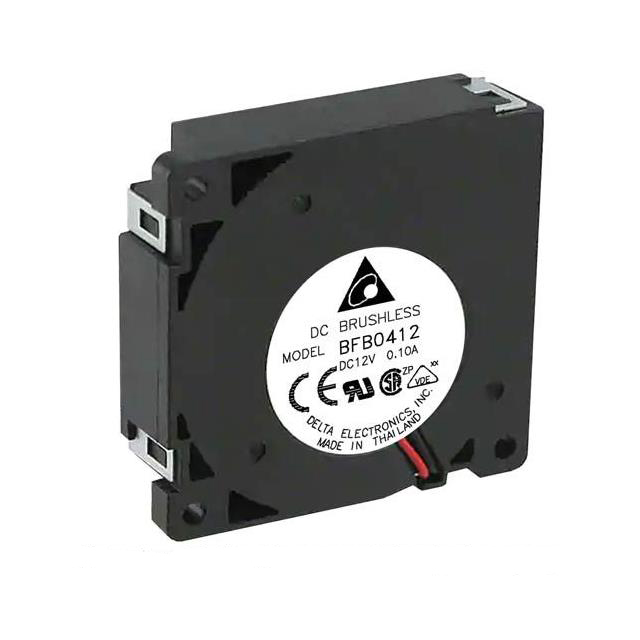

Delta Electronics BFB0405MA-A	5.5 V	4.5 V	Plastic	Plastic	30000 Hrs	5 V	Ball	70 °C	-10 °C	29.5 dB(A)	6500 RPM		2.3 CFM	0.064 m³/min	40 mm	40 mm	10 mm	0.312 in H2O	77.7 Pa	0.4 W	2 Wire Leads	12.25 g	0.027 lb	Blower	CE CSA UL VDE
Delta Electronics BFB0405HHA-A	5.5 V	4 VDC	Plastic	Plastic	30000 Hrs	5 V	Ball	70 °C	-10 °C	34.5 dB(A)	8500 RPM		3 CFM	0.084 mł/min	40 mm	40 mm	10 mm	0.564 in H2O	140.5 Pa	0.8 W	2 Wire Leads	12.25 g	0.027 lb	Blower	CE CSA UL VDE
Delta Electronics BFB0405HA-A	5.5 V	4.5 V	Plastic	Plastic	30000 Hrs	5 V	Ball	70 °C	-10 °C	32.5 dB	7500 RPM		2.6 CFM	0.073 mł/min	40 mm	40 mm	10 mm	0.427 in H2O	106.4 Pa	550 mW	2 Wire Leads	12.25 g	0.027 lb	Blower	CE CSA UL VDE	110 mA
