FAN53526 Series

3.0A, 2.4MHz, Digitally Programmable TinyBuck® Regulator

Catalog

3.0A, 2.4MHz, Digitally Programmable TinyBuck® Regulator

Part	Frequency - Switching	Mounting Type	Package / Case	Topology	Number of Outputs	Output Configuration	Supplier Device Package	Supplier Device Package [x]	Supplier Device Package [y]	Output Type	Voltage - Output (Min/Fixed)	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Function	Voltage - Output (Max) [Max]	Current - Output	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output (Max)

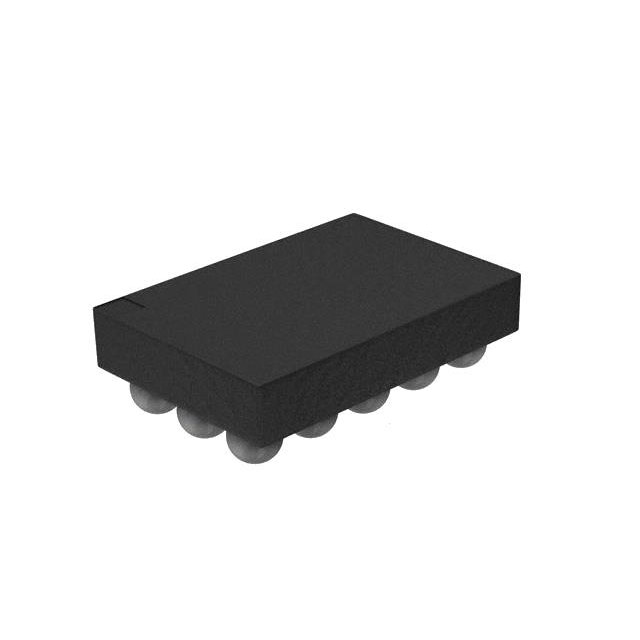

ON Semiconductor FAN53526UC106X	2.4 MHz	Surface Mount	15-UFBGA WLCSP	Buck	1	Positive	15-WLCSP	2.02	1.31	Programmable	1.26 V	2.5 V	5.5 V	Step-Down	1.26 V	3 A	85 °C	-40 °C
ON Semiconductor FAN53526UC00X	2.4 MHz	Surface Mount	15-UFBGA WLCSP	Buck	1	Positive	15-WLCSP	2.02	1.31	Programmable	0.6 V	2.5 V	5.5 V	Step-Down		3 A	85 °C	-40 °C	0.6 V
ON Semiconductor FAN53526UC100X	2.4 MHz	Surface Mount	15-UFBGA WLCSP	Buck	1	Positive	15-WLCSP	2.02	1.31	Programmable	1.225 V	2.5 V	5.5 V	Step-Down	1.23 V	3 A	85 °C	-40 °C
ON Semiconductor FAN53526UC128X	2.4 MHz	Surface Mount	15-UFBGA WLCSP	Buck	1	Positive	15-WLCSP	2.02	1.31	Programmable	1.2 V	2.5 V	5.5 V	Step-Down	1.2 V	3 A	85 °C	-40 °C
ON Semiconductor FAN53526UC84X	2.4 MHz	Surface Mount	15-UFBGA WLCSP	Buck	1	Positive	15-WLCSP	2.02	1.31	Programmable	1.125 V	2.5 V	5.5 V	Step-Down		3 A	85 °C	-40 °C
ON Semiconductor FAN53526UC128X	2.4 MHz	Surface Mount	15-UFBGA WLCSP	Buck	1	Positive	15-WLCSP	2.02	1.31	Programmable	1.2 V	2.5 V	5.5 V	Step-Down	1.2 V	3 A	85 °C	-40 °C
ON Semiconductor FAN53526UC64X	2.4 MHz	Surface Mount	15-UFBGA WLCSP	Buck	1	Positive	15-WLCSP	2.02	1.31	Programmable	0.6 V	2.5 V	5.5 V	Step-Down	1.394 V	3 A	85 °C	-40 °C
ON Semiconductor FAN53526UC288X	2.4 MHz	Surface Mount	15-UFBGA WLCSP	Buck	1	Positive	15-WLCSP	2.02	1.31	Programmable	0.6 V	2.5 V	5.5 V	Step-Down	1.39375 V	3 A	85 °C	-40 °C

Catalog

3.0A, 2.4MHz, Digitally Programmable TinyBuck® Regulator

Key Features

• Fixed Frequency Operation: 2.4MHz

• Best-in-Class Load Transient

• I2C−Compatible Interface Up to 3.4Mbps

• Continuous Output Current: 3.0A

• 2.5 V to 5.5 V Input Voltage Range

• Digitally Programmable Output Voltage: 0.6V to 1.39375V in 6.25mV steps

• Programmable Slew Rate for Voltage Transitions

• PFM Mode for High Efficiency in Light-Load

• Quiescent Current in PFM Mode: 50A (Typical)

• Input Under−Voltage Lockout (UVLO)

• Thermal Shutdown and Overload Protection

Description

The FAN53526 is a step-down switching voltage regulator that delivers a digitally programmable output from an input voltage supply of 2.5V to 5.5V. The output voltage is programmed through an I2C interface capable of operating up to 3.4MHz.Using a proprietary architecture with synchronous rectification, the FAN53526is capable of delivering 3.0A continuous at over 80% efficiency, maintaining that efficiency at load currents as low as 10mA. The regulator operates at a nominal fixed frequency of 2.4MHz, which reduces the value of the external components. Additional output capacitance can be added to improve regulation during load transients without affecting stability. At moderate and light loads, Pulse Frequency Modulation (PFM) is used to operate in Power-Save Mode with a typical quiescent current of 50μAat room temperature. Even with such a low quiescent current, the part exhibits excellent transient response during large load swings. At higher loads, the system automatically switches to fixed-frequency control, operating at 2.4MHz. In Shutdown Mode, the supply current drops below 1μA, reducing power consumption. PFM Mode can be disabled if fixed frequency is desired. The FAN53526is available in a 15-bump, 1.310mmx 2.015mm, 0.4mm ball pitch WLCSP.
