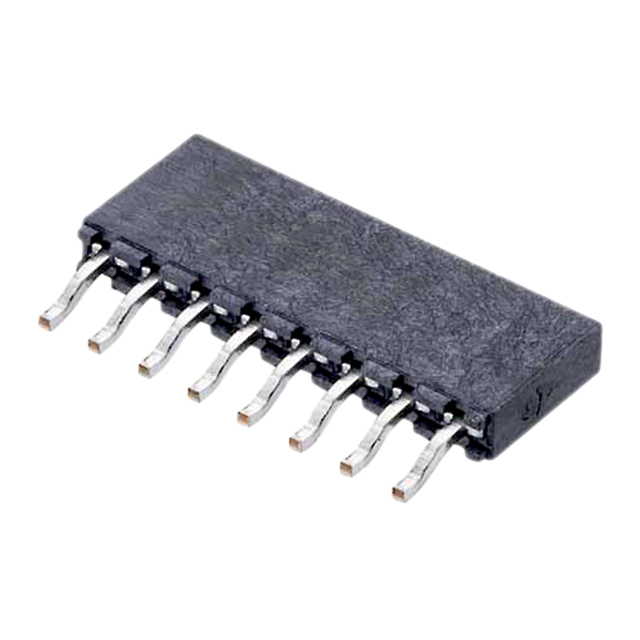

M20-791 Series

Catalog

CONNECTOR, RCPT, 4POS, 2.54MM, 1ROW

Part	Contact Shape	Applications	Insulation Material	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Material Flammability Rating	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Contact Type	Termination	Current Rating (Amps)	Fastening Type	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Connector Type	Contact Finish - Mating	Insulation Color

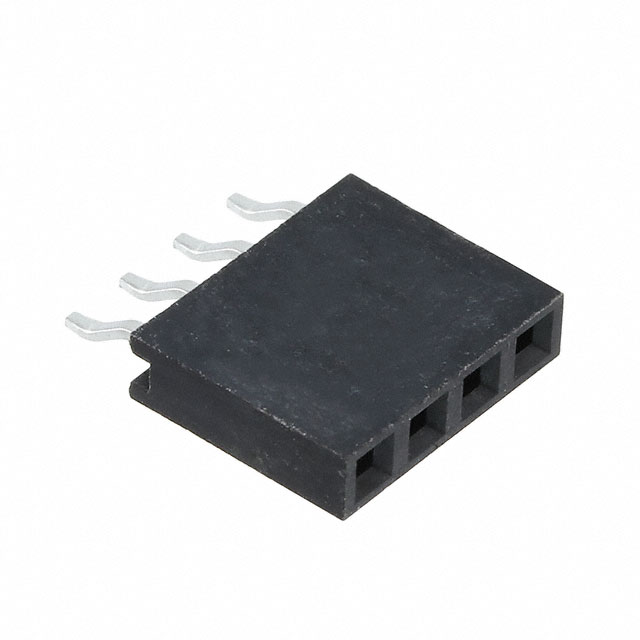

Harwin Inc. M20-7910442R	Square	General Purpose	Glass Filled Nylon 9T Polyamide (PA9T)	Phosphor Bronze	2.03 µm	80 µin	Right Angle Surface Mount	0.1 "	2.54 mm	0.098 "	2.5 mm	UL94 V-0	All	0.015 µm	0.59 µin	4	Forked	Solder	3 A	Push-Pull	Tin	-40 C	105 ░C	1	Receptacle	Gold	Black

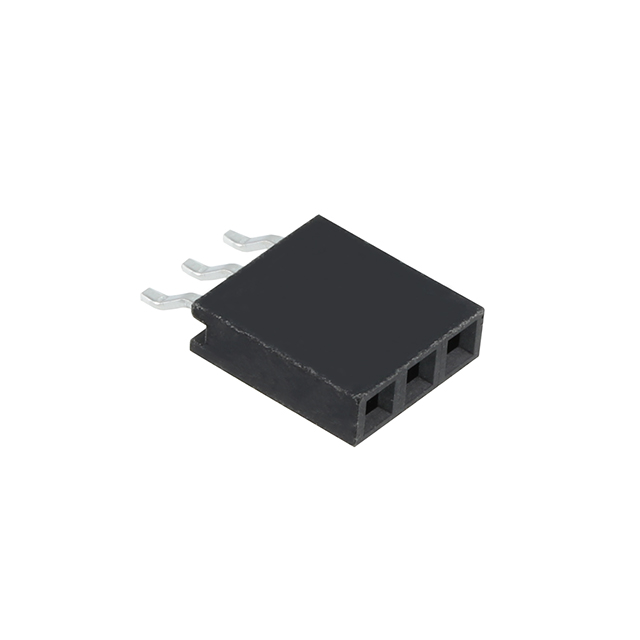

Harwin Inc. M20-7910342R	Square	General Purpose	Glass Filled Nylon 9T Polyamide (PA9T)	Phosphor Bronze	2.03 µm	80 µin	Right Angle Surface Mount	0.1 "	2.54 mm	0.098 "	2.5 mm	UL94 V-0	All	0.015 µm	0.59 µin		Forked	Solder	3 A	Push-Pull	Tin	-40 C	105 ░C	1	Receptacle	Gold	Black

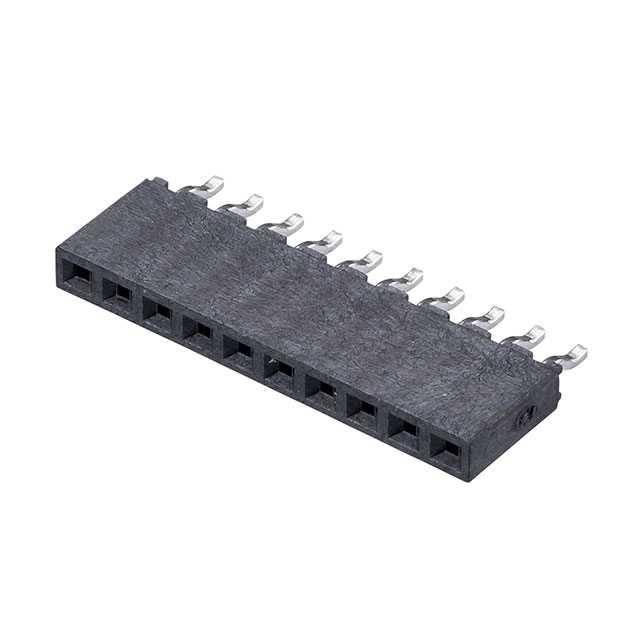

Harwin Inc. M20-7911042R	Square	General Purpose	Glass Filled Nylon 9T Polyamide (PA9T)	Phosphor Bronze	2.03 µm	80 µin	Right Angle Surface Mount	0.1 "	2.54 mm	0.098 "	2.5 mm	UL94 V-0	All	0.015 µm	0.59 µin	10	Forked	Solder	3 A	Push-Pull	Tin	-40 C	105 ░C	1	Receptacle	Gold	Black

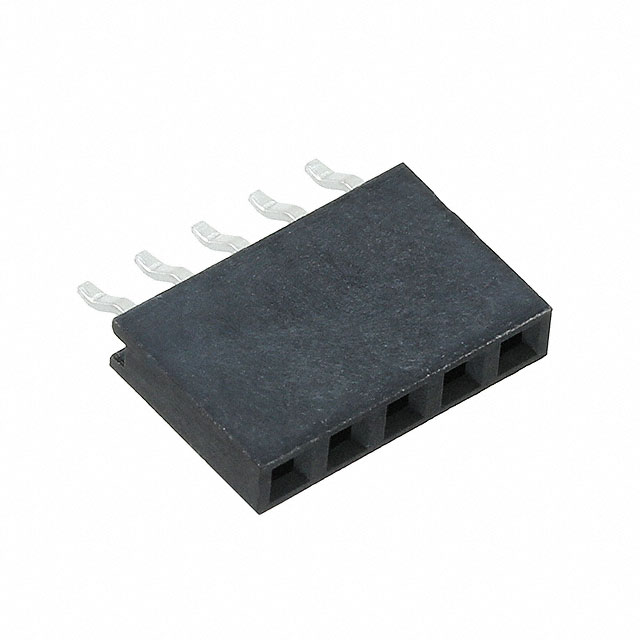

Harwin Inc. M20-7910542R	Square	General Purpose	Glass Filled Nylon 9T Polyamide (PA9T)	Phosphor Bronze	2.03 µm	80 µin	Right Angle Surface Mount	0.1 "	2.54 mm	0.098 "	2.5 mm	UL94 V-0	All	0.015 µm	0.59 µin	5	Forked	Solder	3 A	Push-Pull	Tin	-40 C	105 ░C	1	Receptacle	Gold	Black
Harwin Inc. M20-7910842R	Square	General Purpose	Glass Filled Nylon 9T Polyamide (PA9T)	Phosphor Bronze	2.03 µm	80 µin	Right Angle Surface Mount	0.1 "	2.54 mm	0.098 "	2.5 mm	UL94 V-0	All	0.015 µm	0.59 µin	8	Forked	Solder	3 A	Push-Pull	Tin	-40 C	105 ░C	1	Receptacle	Gold	Black
