ACDA02 Series

Catalog

DISPLAY 7-SEG 0.2" DBL RED 20SMD

Part	Power Dissipation (Max) [Max]	Voltage - Forward (Vf) (Typ)	Color	Display Type	Number of Characters	Common Pin	Millicandela Rating	Current - Test	Package / Case	Digit/Alpha Size	Digit/Alpha Size	Wavelength - Peak	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]
Kingbright ACDA02-41EWA-F01	75 mw	2.5 V	Red	7-Segment	2	Common Anode	3.2 mcd	10 mA	20-SMD No Lead	0.2 in	5.08 mm	627 nm	3 mm	0.118 "	10 mm	14.1 mm	0.394 "	0.555 in

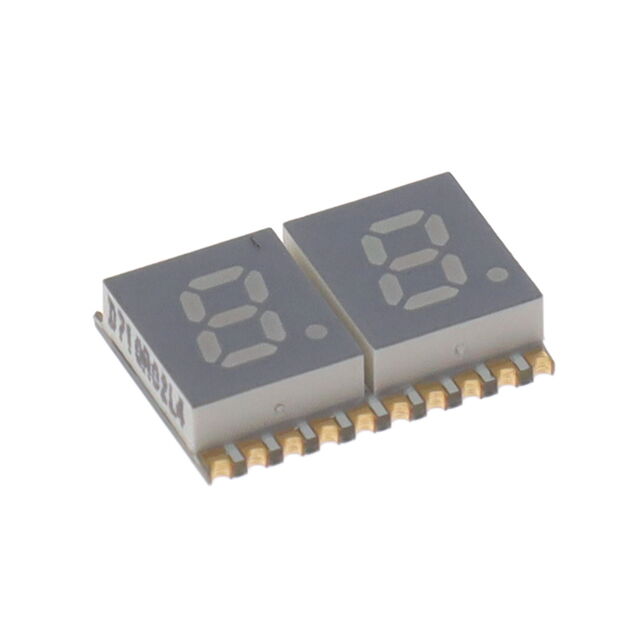

Kingbright ACDA02-41SGWA-F01	62.5 mW	2.2 V	Green	7-Segment	2	Common Anode	3.9 mcd	20 mA	20-SMD No Lead	0.2 in	5.08 mm	565 nm	8 mm	0.315 in	3 mm	14.1 mm	0.118 in	0.555 in
Kingbright ACDA02-41CGKWA-F01	75 mw	2.1 V	Green	7-Segment	2	Common Anode	12 mcd	20 mA	20-SMD No Lead	0.2 in	5.08 mm		8 mm	0.315 in	3 mm	14.1 mm	0.118 in	0.555 in

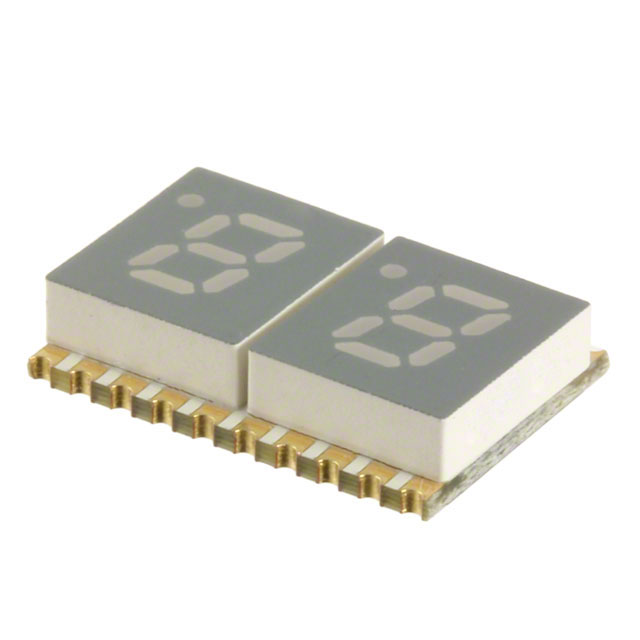

Kingbright ACDA02-41SURKWA-F01	75 mw	1.95 V	Red	7-Segment	2	Common Anode	30 mcd	20 mA	20-SMD No Lead	0.2 in	5.08 mm	650 nm	8 mm	0.315 in	3 mm	14.1 mm	0.118 in	0.555 in
Kingbright ACDA02-41SYKWA-F01	75 mw	2 V	Yellow	7-Segment	2	Common Anode	50 mcd	20 mA	20-SMD No Lead	0.2 in	5.08 mm	590 nm	8 mm	0.315 in	3 mm	14.1 mm	0.118 in	0.555 in
Kingbright ACDA02-41SEKWA-F01	75 mw	2.1 V		7-Segment	2	Common Anode	37 mcd	20 mA	20-SMD No Lead	0.2 in	5.08 mm	610 nm	8 mm	0.315 in	3 mm	14.1 mm	0.118 in	0.555 in
