Mega-Fit Test Plug, Dual Row, 12 Circuits
Mega-Fit Test Plug, Dual Row, 12 Circuits
| Part | Fastening Type | Contact Finish | Number of Rows [custom] | Row Spacing | Row Spacing | Wire Type | Mounting Type | Number of Positions | Pitch | Pitch | Color | Connector Type | Wire Gauge [Min] | Wire Gauge [Max] | Cable Termination | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Latch Holder | Gold | 2 | 5.7 mm | 0.224 in | Discrete | Free Hanging (In-Line) | 4 | 5.7 mm | 0.224 in | Black | Plug | 10 AWG | 16 AWG | Solder Cup | Piston |
 Molex | Locking Ramp | Gold | 2 | 5.7 mm | 0.224 in | Discrete | Free Hanging (In-Line) | 6 | 5.7 mm | 0.224 in | Black | Plug | 10 AWG | 16 AWG | Solder Cup | Piston |
 Molex | Locking Ramp | Gold | 2 | 5.7 mm | 0.224 in | Discrete | Free Hanging (In-Line) | 8 | 5.7 mm | 0.224 in | Black | Plug | 10 AWG | 16 AWG | Solder Cup | Piston |

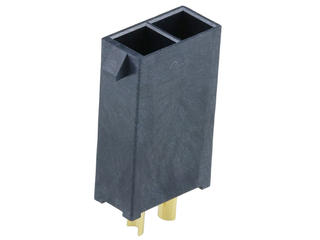

 Molex | Locking Ramp | Gold | 2 | 5.7 mm | 0.224 in | Discrete | Free Hanging (In-Line) | 2 | 5.7 mm | 0.224 in | Black | Plug | 10 AWG | 16 AWG | Solder Cup | Piston |

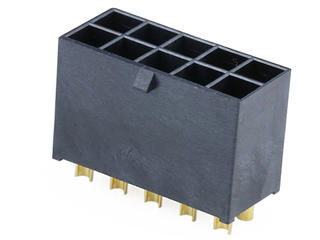

 Molex | Locking Ramp | Gold | 2 | 5.7 mm | 0.224 in | Discrete | Free Hanging (In-Line) | 10 | 5.7 mm | 0.224 in | Black | Plug | 10 AWG | 16 AWG | Solder Cup | Piston |
