202K153 Series

Manufacturer: TE Connectivity Aerospace, Defense and Marine

Catalog

HEATSHRINK BOOT SZ53 BLACK

Part	Small Recovered Length [x]	Small Recovered Length	Small Diameter Recovered [diameter]	Small Diameter Recovered [diameter]	Large Diameter Recovered [diameter]	Large Diameter Recovered [diameter]	Large Diameter Supplied [diameter]	Large Diameter Supplied [diameter]	Shell Size - Insert	Large Recovered Length	Large Recovered Length	Features	Color	Material	Type	Total Length Recovered	Total Length Recovered	Small Recovered Length	Small Diameter Supplied [diameter]	Small Diameter Supplied [diameter]
TE Connectivity Aerospace, Defense and Marine 202K153-100-01/86-0	0.768 in	19.51 mm	8.41 mm	0.331 "	22.4 mm	0.882 in	1.42 in	36.07 mm	53	0.87 in	22.1 mm	Adhesive Coating Lip	Black	Polyolefin (PO) Semi-Flexible Halogen Free	Boot	2.362 in	59.99 mm

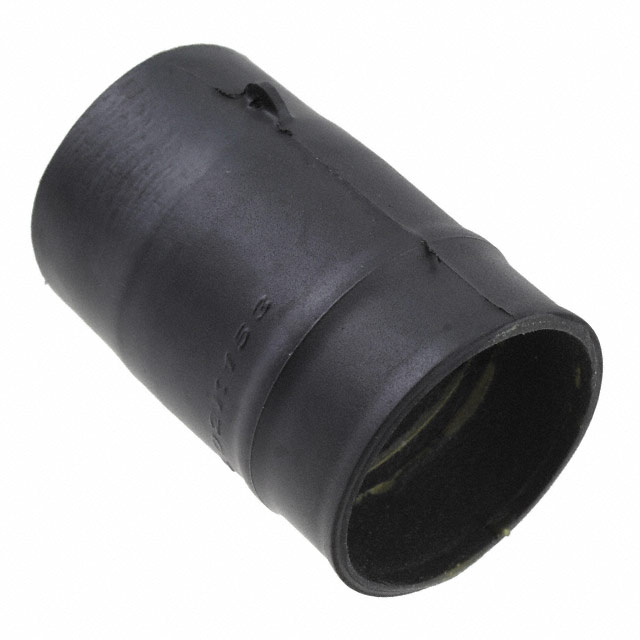

TE Connectivity Aerospace, Defense and Marine 202K153-3/86-0		29.97 mm	8.41 mm	0.331 "	22.4 mm	0.882 in	1.42 in	36.07 mm	53	1.654 in	42.01 mm	Adhesive Coating Flame Retardant Lip	Black	Polyolefin (PO) Semi-Rigid	Boot	3.15 in	80.01 mm	1.18 in

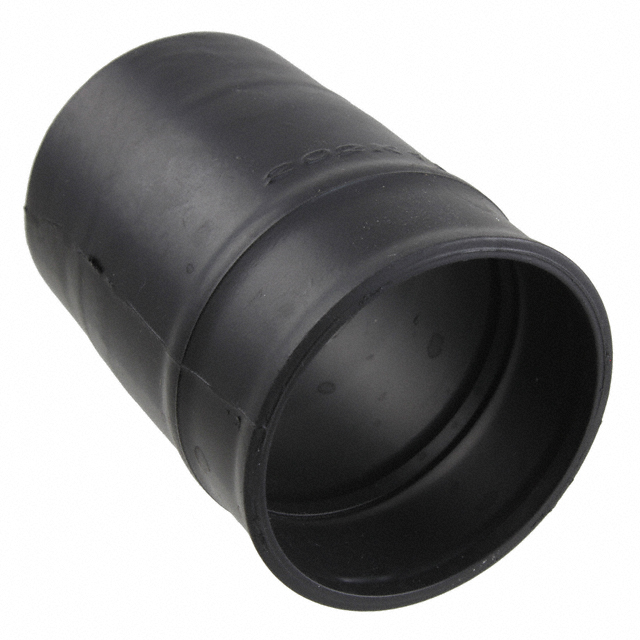

TE Connectivity Aerospace, Defense and Marine 202K153-3-0		29.97 mm	8.41 mm	0.331 "	22.4 mm	0.882 in	1.42 in	36.07 mm	53	1.654 in	42.01 mm	Flame Retardant Lip	Black	Polyolefin (PO) Semi-Rigid	Boot	3.15 in	80.01 mm	1.18 in
TE Connectivity Aerospace, Defense and Marine 202K153-25-01-0	0.768 in	19.51 mm	8.41 mm	0.331 "	22.4 mm	0.882 in	1.42 in	36.07 mm	53	0.87 in	22.1 mm	Fluid Resistant Lip	Black	Elastomer Semi-Rigid	Boot	2.362 in	59.99 mm
TE Connectivity Aerospace, Defense and Marine 202K153-100-CS-2065-0		29.97 mm	8.41 mm	0.331 "	22.4 mm	0.882 in	1.42 in	36.07 mm	53	1.654 in	42.01 mm	Fluid Resistant Lip	Black	Polyolefin (PO) Semi-Flexible Halogen Free	Boot	3.15 in	80.01 mm	1.18 in	21.08 mm	0.83 in
TE Connectivity Aerospace, Defense and Marine 202K153-25-CS-1825-0		29.97 mm	8.41 mm	0.331 "	22.4 mm	0.882 in	1.42 in	36.07 mm	53	1.654 in	42.01 mm	Fluid Resistant Lip	Black	Elastomer Semi-Rigid	Boot	3.15 in	80.01 mm	1.18 in
TE Connectivity Aerospace, Defense and Marine 202K153-4/42-0		29.97 mm	8.41 mm	0.331 "	22.4 mm	0.882 in	1.42 in	36.07 mm	53	1.654 in	42.01 mm	Adhesive Coating Flame Retardant Lip	Black	Polyolefin (PO) Flexible	Boot	3.15 in	80.01 mm	1.18 in
TE Connectivity Aerospace, Defense and Marine 202K153-12/225-0		29.97 mm	8.41 mm	0.331 "	22.4 mm	0.882 in	1.42 in	36.07 mm	53	1.654 in	42.01 mm	Adhesive Coating Chemical Resistant Lip	Black	Fluoroelastomer (FKM) Flexible	Boot	3.15 in	80.01 mm	1.18 in	18.03 mm	0.71 in

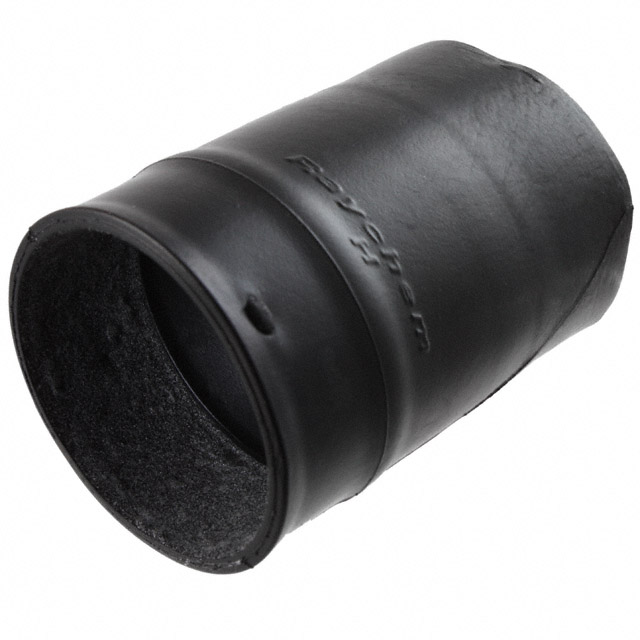

TE Connectivity Aerospace, Defense and Marine 202K153-25/225-0		29.97 mm	8.41 mm	0.331 "	22.4 mm	0.882 in	1.42 in	36.07 mm	53	1.654 in	42.01 mm	Adhesive Coating Fluid Resistant Lip	Black	Elastomer Semi-Rigid	Boot	3.15 in	80.01 mm	1.18 in
TE Connectivity Aerospace, Defense and Marine 202K153-100/184-0		29.97 mm	8.41 mm	0.331 "	22.4 mm	0.882 in	1.42 in	36.07 mm	53	1.654 in	42.01 mm	Adhesive Coating Lip	Black	Polyolefin (PO) Semi-Flexible Halogen Free	Boot	3.15 in	80.01 mm	1.18 in	21.08 mm	0.83 in
