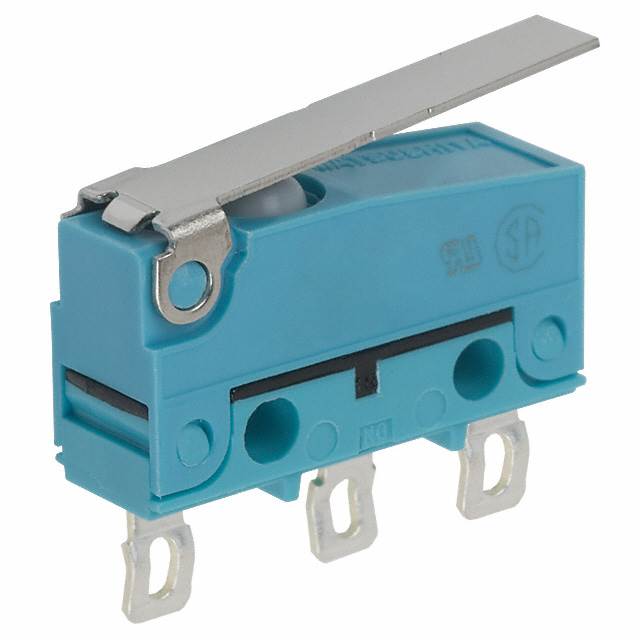

ABS141 Series

Manufacturer: Panasonic Electronic Components

Catalog

SWITCH SNAP ACTION SPDT 2A 125V

Part	Switch Function	Voltage Rating - AC	Operating Position	Operating Position	Actuator Type	Operating Force	Current Rating (Amps)	Pretravel	Pretravel	Termination Style	Differential Travel	Differential Travel	Electrical Life	Overtravel	Overtravel	Mounting Type	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life	Ingress Protection	Release Force	Circuit	Overtravel [custom]	Overtravel [custom]
Panasonic Electronic Components ABS1412403	On-Mom	125 V	0.345 in	8.8 mm	Lever Straight	35 gf	2 A	0.11 in	2.8 mm	Solder Lug	0.031 in	0.8 mm	50000 Cycles	1.2 mm	0.047 "	Chassis Mount	30 V	85 °C	-40 C	5000000 Cycles	IP50 - Dust Protected	3.059 gf	SPDT

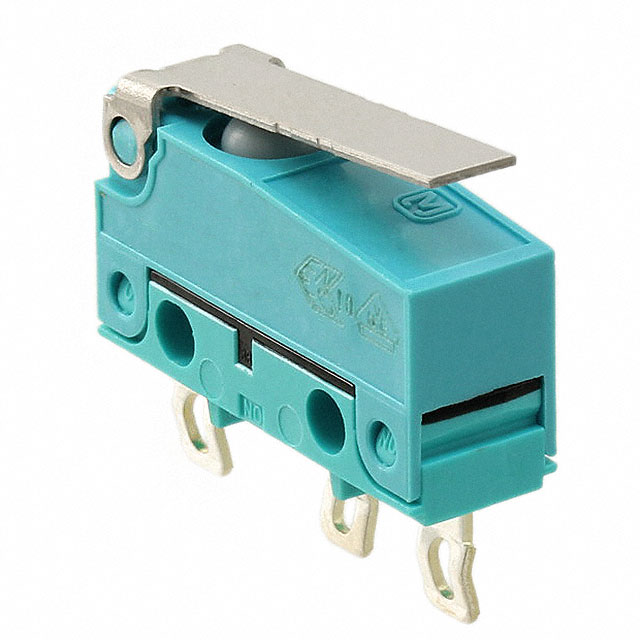

Panasonic Electronic Components ABS1411503	On-Mom	125 V	0.345 in	8.8 mm	Lever Straight	60 gf	2 A	0.1 in	2.5 mm	Solder Lug	0.02 in	0.5 mm	50000 Cycles			Chassis Mount	30 V	85 °C	-40 C	5000000 Cycles	IP50 - Dust Protected	4.079 gf	SPDT	0.032 "	0.81 mm

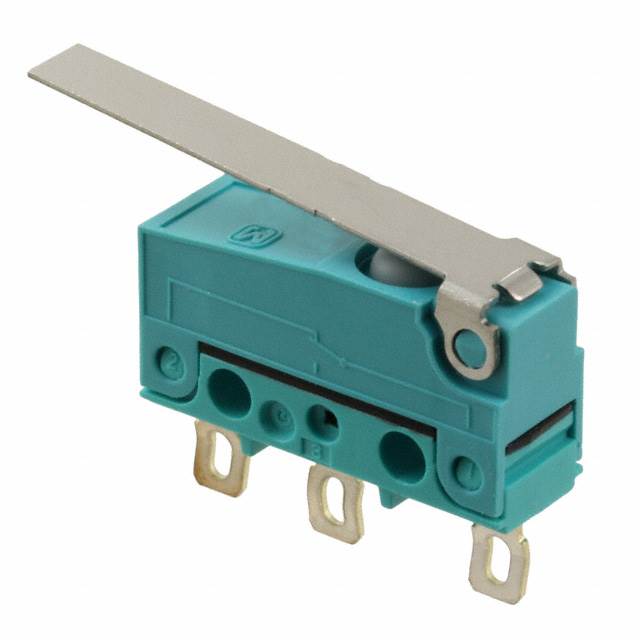

Panasonic Electronic Components ABS1413403	On-Mom	125 V	0.345 in	8.8 mm	Lever Straight		2 A	0.138 in	3.5 mm	Solder Lug	0.04 in	1 mm	50000 Cycles			Chassis Mount	30 V	85 °C	-40 C	5000000 Cycles	IP50 - Dust Protected	2.5 gf	SPDT	0.062 "	1.6 mm

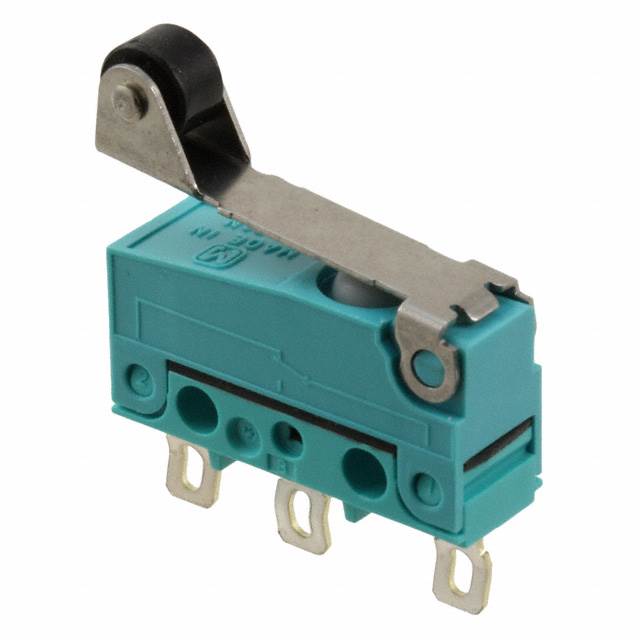

Panasonic Electronic Components ABS1416449	On-Mom		0.571 in	14.5 mm	Lever Roller	40 gf	100 mA	0.1 in	2.5 mm	Solder Lug	0.02 in	0.5 mm	200000 Cycles			Chassis Mount	30 V	85 °C	-40 C	5000000 Cycles	IP50 - Dust Protected	3.5 gf	SPDT	0.032 "	0.81 mm
Panasonic Electronic Components ABS1413409	On-Mom	125 V	0.345 in	8.8 mm	Lever Straight		2 A	0.138 in	3.5 mm	Solder Lug	0.04 in	1 mm	50000 Cycles			Chassis Mount	30 V	85 °C	-40 C	5000000 Cycles	IP50 - Dust Protected	2.5 gf	SPDT	0.062 "	1.6 mm

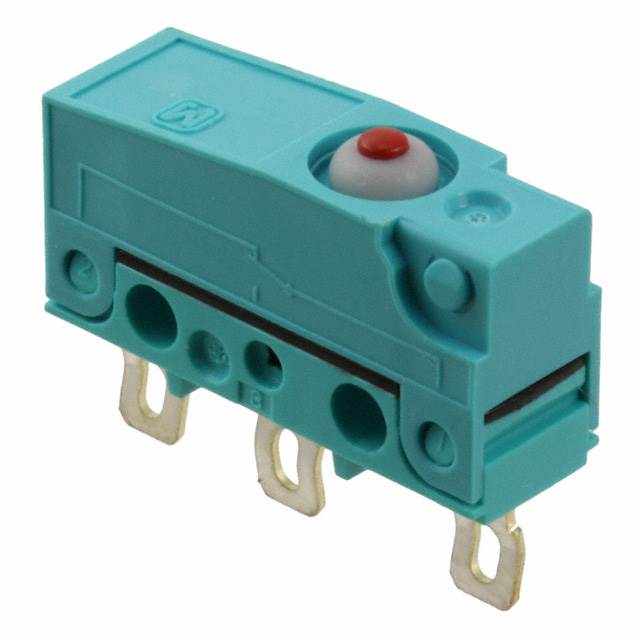

Panasonic Electronic Components ABS1410419	On-Mom	125 V	0.33 in	8.4 mm	Round (Pin Plunger)	100 gf	100 mA	0.024 in	0.6 mm	Solder Lug	0.004 in	0.1 mm	200000 Cycles			Chassis Mount	30 V	85 °C	-40 C	5000000 Cycles	IP50 - Dust Protected	15 gf	SPDT	0.015 "	0.4 mm
Panasonic Electronic Components ABS1411549	On-Mom		0.345 in	8.8 mm	Lever Straight	60 gf	100 mA	0.1 in	2.5 mm	Solder Lug	0.02 in	0.5 mm	200000 Cycles			Chassis Mount	30 V	85 °C	-40 C	5000000 Cycles	IP50 - Dust Protected	4.079 gf	SPDT	0.032 "	0.81 mm
Panasonic Electronic Components ABS1410449	On-Mom		0.33 in	8.4 mm	Round (Pin Plunger)	100 gf	100 mA	0.024 in	0.6 mm	Solder Lug	0.004 in	0.1 mm	200000 Cycles			Chassis Mount	30 V	85 °C	-40 C	5000000 Cycles	IP50 - Dust Protected	15 gf	SPDT	0.015 "	0.4 mm
Panasonic Electronic Components ABS1416413	On-Mom	125 V	0.571 in	14.5 mm	Lever Roller	40 gf	100 mA	0.1 in	2.5 mm	Solder Lug	0.02 in	0.5 mm	200000 Cycles			Chassis Mount	30 V	85 °C	-40 C	5000000 Cycles	IP50 - Dust Protected	3.5 gf	SPDT	0.032 "	0.81 mm
Panasonic Electronic Components ABS1412513	On-Mom	125 V	0.345 in	8.8 mm	Lever Straight	55 gf	100 mA	0.11 in	2.8 mm	Solder Lug	0.031 in	0.8 mm	200000 Cycles	1.2 mm	0.047 "	Chassis Mount	30 V	85 °C	-40 C	5000000 Cycles	IP50 - Dust Protected	3.5 gf	SPDT
