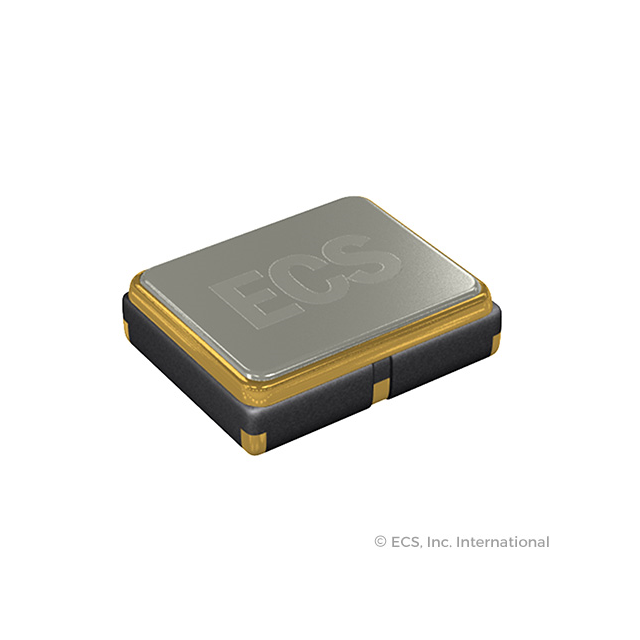

2520MVLC Series
Manufacturer: ECS Inc.
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
STANDARD CLOCK OSCILLATORS MULTIVOLT ECS-2520MVLC,ACTIVE,XO (STANDARD),16MHZ,ENABLE/DISABLE,CMOS,1.8V, 2.5V, 3.3V,+/-50PPM,-40C - 85C,SURFACE MOUNT,4-SMD, NO LEAD,0.098" L X 0.079" W (2.50MM X 2.00MM),0.035" (0.90MM)
| Part | Function | Current - Supply (Max) | Size / Dimension Width | Size / Dimension Length | Package Width | Package Name | Package Length | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | Mounting Type | Frequency Stability | Output | Frequency | Operating Temperature (Min) | Operating Temperature (Max) | Package / Case | Type | Height - Seated (Max) | Base Resonator | Current - Supply (Disable) (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ECS Inc. | Disable Enable | 1.8 mA | 0.079 in | 0.098 in | 2 mm | 4-SMD | 2.5 mm | 3.6 V | 1.6 V | Surface Mount | 50 ppm | CMOS | 16 MHz | -40 °C | 85 °C | 4-SMD No Lead | XO (Standard) | 0.035 in | Crystal | 10 µA |
