MU14 Series

Catalog

CONN QC RCPT 14-16AWG 0.187

Part	Gender	Tab Width [x]	Tab Width [x]	Tab Thickness	Tab Thickness	Mounting Type	Length - Overall [x]	Length - Overall [x]	Termination	Insulation	Terminal Type	Wire Gauge [Min]	Wire Gauge [Max]	Features	Contact Material	Contact Finish	Thickness	Thickness	Width - Outer Edges	Width - Outer Edges	Stud/Tab Size	Number of Wire Entries	Width - Outer Edges [x]	Width - Outer Edges [x]	Length - Termination [x]	Length - Termination [x]	Length - Ring Center to Termination [custom]	Length - Ring Center to Termination [custom]
3M Electronic Specialty MU14-187DFK	Female	0.187 in	4.75 mm	0.02 in	0.51 mm	Free Hanging (In-Line)	0.58 "	14.73 mm	Crimp	Non-Insulated	Standard	14 AWG	16 AWG	Butted Seam	Brass	Tin

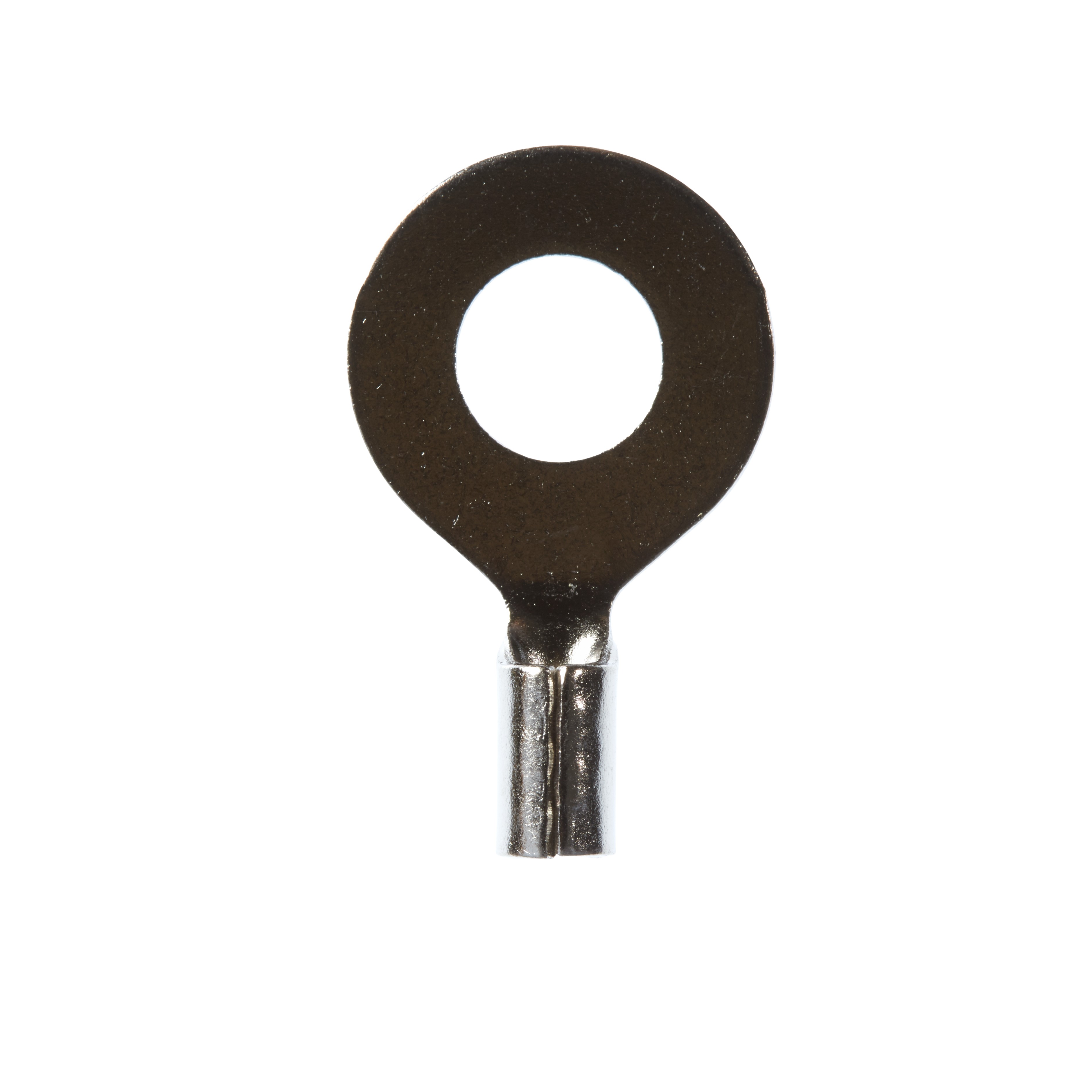

3M Electronic Specialty MU14-14RHTK						Free Hanging (In-Line)	0.93 in	23.62 mm	Crimp	Non-Insulated	Circular	14 AWG	16 AWG		Steel	Nickel	0.76 mm	0.03 in	0.56 in	14.22 mm	0.25 Stud

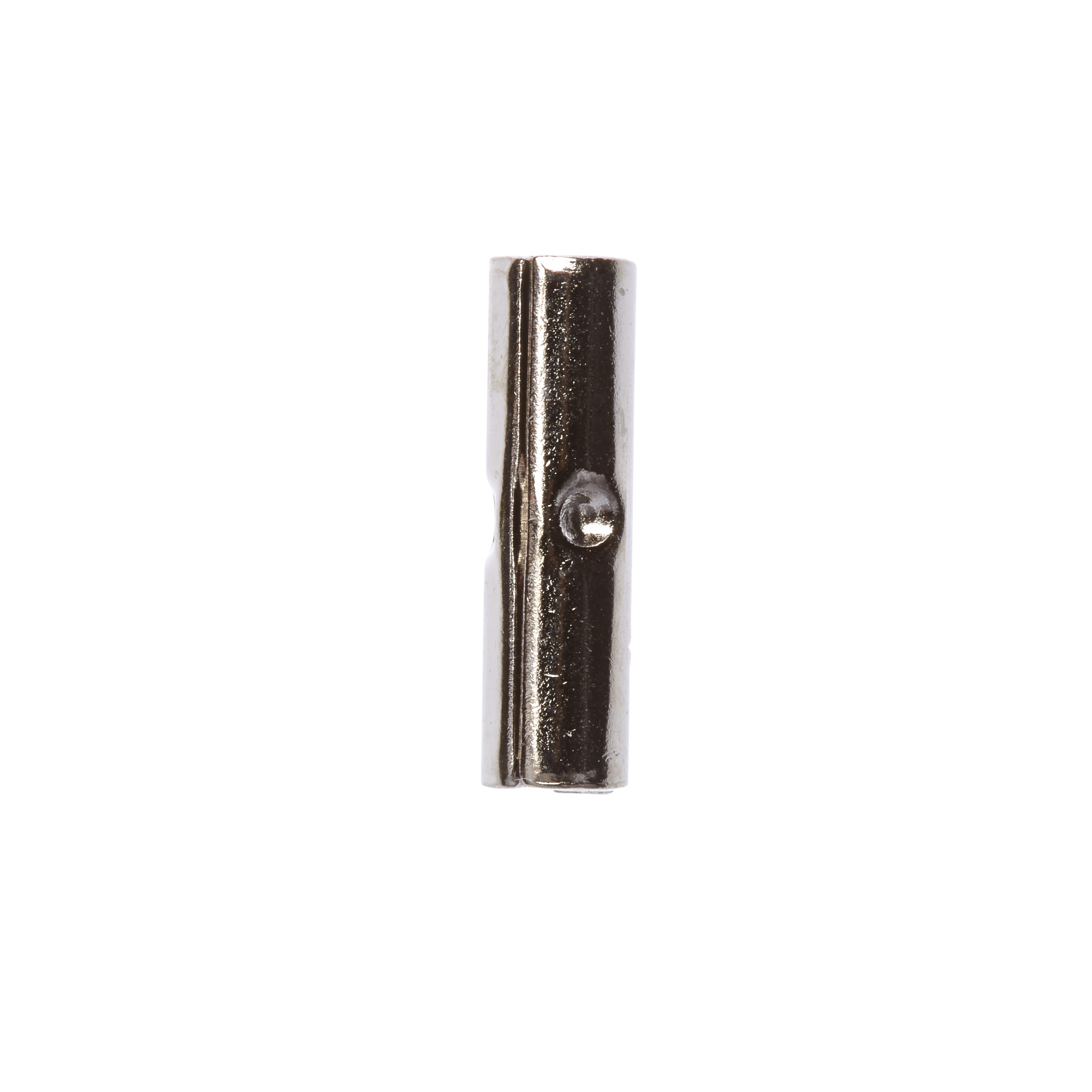

3M Electronic Specialty MU14BCHTK									Crimp	Non-Insulated	Butt Splice Individual Openings Inline	14 AWG	16 AWG									2

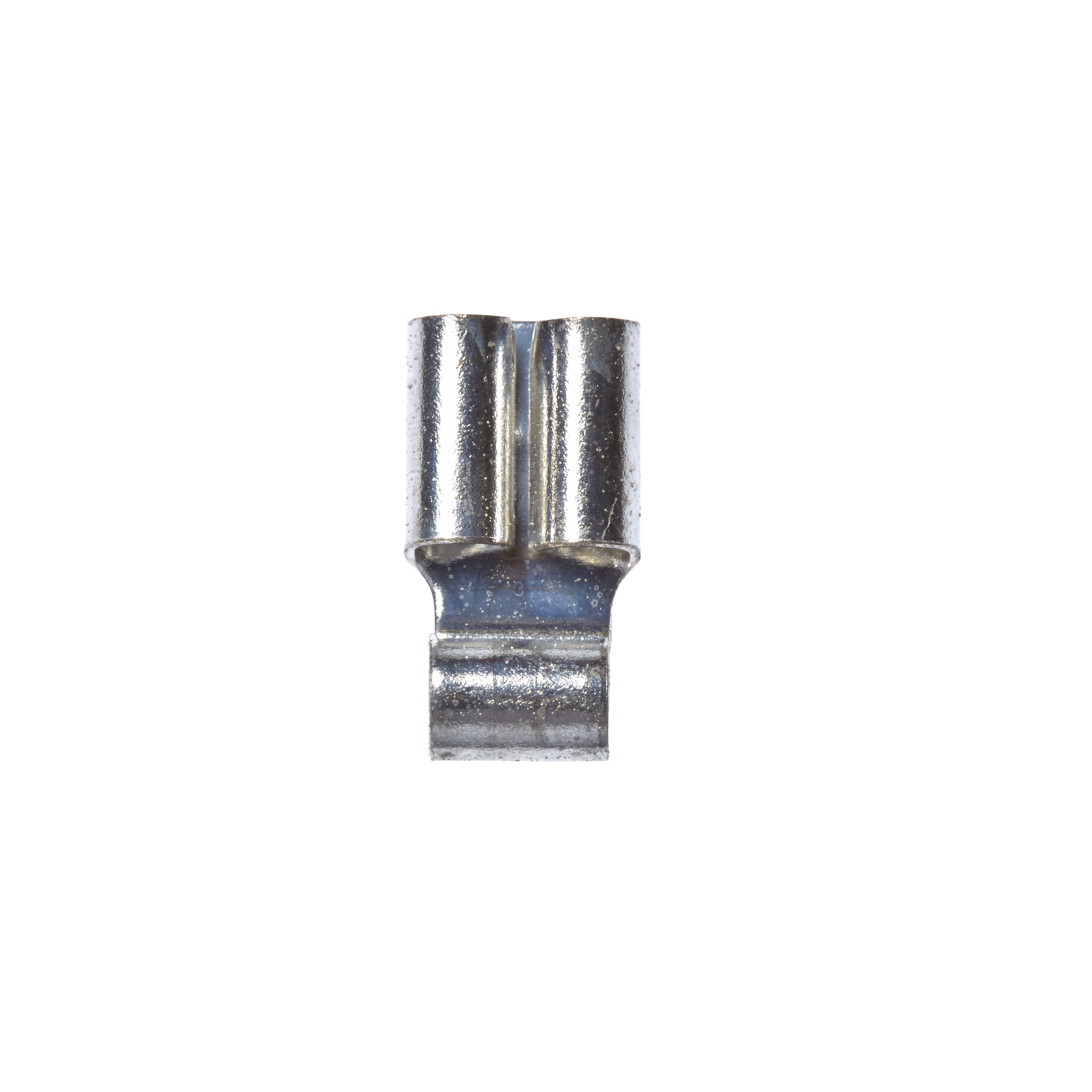

3M Electronic Specialty MU14-187DF/FLAGX-BOTTLE	Female	0.187 in	4.75 mm	0.02 in	0.51 mm	Free Hanging (In-Line) Right Angle			Crimp	Non-Insulated	Angled - 90° Flag	14 AWG	16 AWG	Butted Seam	Brass	Tin
3M Electronic Specialty MU14-4R/SK						Free Hanging (In-Line)	0.6 in	15.24 mm	Crimp	Non-Insulated	Circular	14 AWG	16 AWG		Copper ETP	Tin	0.76 mm	0.03 in			4 Stud		6.35 mm	0.25 "
3M Electronic Specialty MU14-8RLX-BOTTLE						Free Hanging (In-Line)	0.74 in	18.8 mm	Crimp	Non-Insulated	Circular	14 AWG	16 AWG		Copper ETP	Tin	0.76 mm	0.03 in			8 Stud		6.35 mm	0.25 "
3M Electronic Specialty MU14-14RHTX-BOTTLE						Free Hanging (In-Line)	0.93 in	23.62 mm	Crimp	Non-Insulated	Circular	14 AWG	16 AWG		Steel	Nickel	0.76 mm	0.03 in	0.56 in	14.22 mm	0.25 Stud
3M Electronic Specialty MU14-6R/SK						Free Hanging (In-Line)	0.6 in	15.24 mm	Crimp	Non-Insulated	Circular	14 AWG	16 AWG		Copper ETP	Tin	0.76 mm	0.03 in			6 Stud		6.35 mm	0.25 "
3M Electronic Specialty MU14-4FLK						Free Hanging (In-Line)	0.68 "	17.27 mm	Crimp	Non-Insulated	Snap Spring	14 AWG	16 AWG	Butted Seam	Copper ETP	Tin					4 Stud		6.35 mm	0.25 "	0.25 in	6.35 mm	6.35 mm	0.25 "

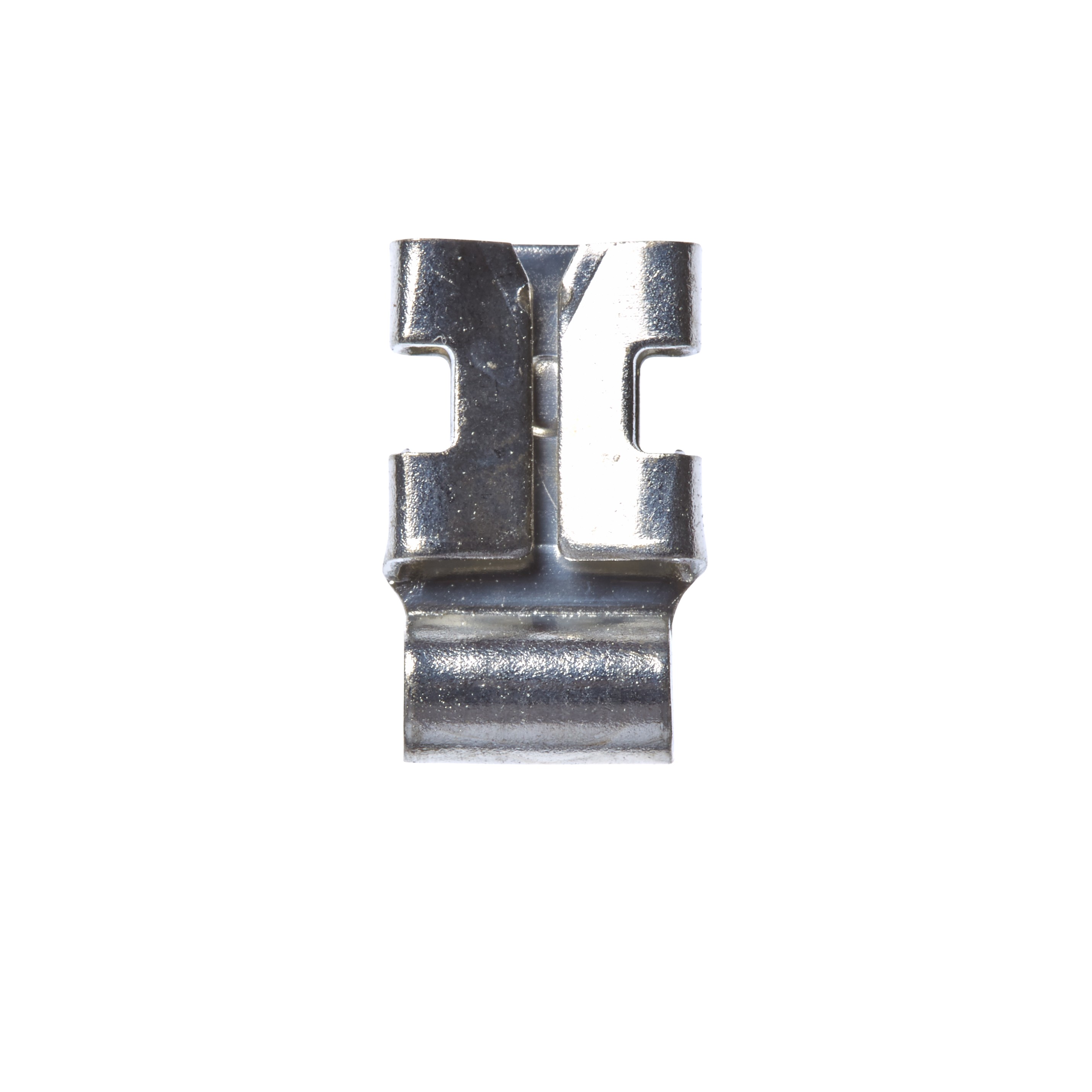

3M Electronic Specialty MU14-250DF/FLAGX-BOTTLE	Female	0.25 in	6.35 mm	0.032 in	0.81 mm	Free Hanging (In-Line) Right Angle			Crimp	Non-Insulated	Angled - 90° Flag	14 AWG	16 AWG	Butted Seam	Brass	Tin
