3010-50 Series

Manufacturer: CNC Tech

Catalog

CONN HEADER 50POS IDC GOLD

Part	Mounting Type	Number of Rows [custom]	Number of Positions	Cable Termination	Contact Finish Thickness	Contact Finish	Features	Connector Type	Contact Type	Pitch	Pitch	Row Spacing	Row Spacing	Fastening Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Shape	Contact Finish - Mating	Contact Finish Thickness - Mating	Termination	Insulation Height	Insulation Height	Material Flammability Rating	Contact Length - Post [x]	Contact Length - Post	Style	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Contact Material	Shrouding	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Voltage Rating

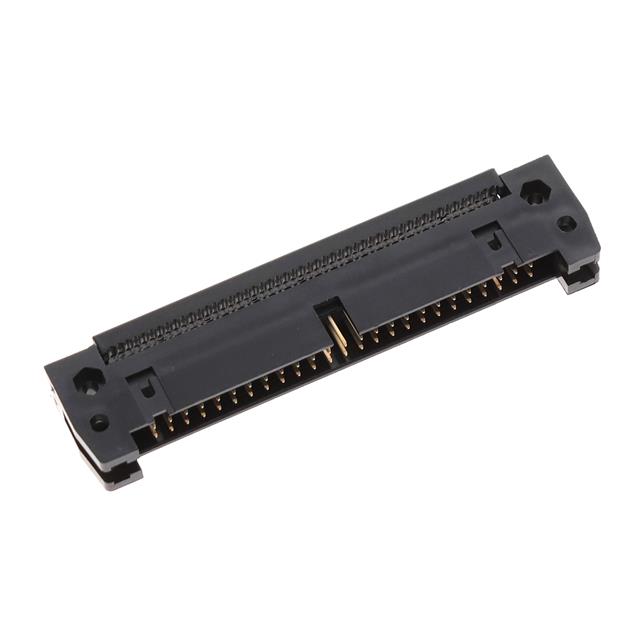

CNC Tech 3010-50-041-11-00	Free Hanging (In-Line)	2	50	IDC	Flash	Gold	Polarizing Key	Header	Male Pin	0.1 "	2.54 mm	2.54 mm	0.1 "	Push-Pull
CNC Tech 3010-50-001-13-00	Through Hole	2	50				Keying Slot	Header	Male Pin					Latch Lock/Eject Hooks Long	0.1 in	2.54 mm	Square	Gold	Flash	Solder	17 mm	0.669 in	UL94 V-0	0.134 "	3.4 mm	Board to Cable/Wire	0.1 "	2.54 mm	All	Brass	Shrouded - 4 Wall	Polybutylene Terephthalate (PBT)	-40 C	105 ░C
CNC Tech 3010-50-003-12-00	Surface Mount	2	50				Keying Slot	Header	Male Pin					Latch Lock/Eject Hooks	0.1 in	2.54 mm	Square	Gold	Flash	Solder	17 mm	0.669 in	UL94 V-0			Board to Cable/Wire	0.1 "	2.54 mm	All	Brass	Shrouded - 4 Wall	Nylon 9T Polyamide (PA9T)	-40 C	105 ░C	3 A	250 VAC
CNC Tech 3010-50-001-12-00	Through Hole	2	50				Keying Slot	Header	Male Pin					Latch Lock/Eject Hooks	0.1 in	2.54 mm	Square	Gold	Flash	Solder	17 mm	0.669 in	UL94 V-0	0.134 "	3.4 mm	Board to Cable/Wire	0.1 "	2.54 mm	All	Brass	Shrouded - 4 Wall	Polybutylene Terephthalate (PBT)	-40 C	105 ░C
