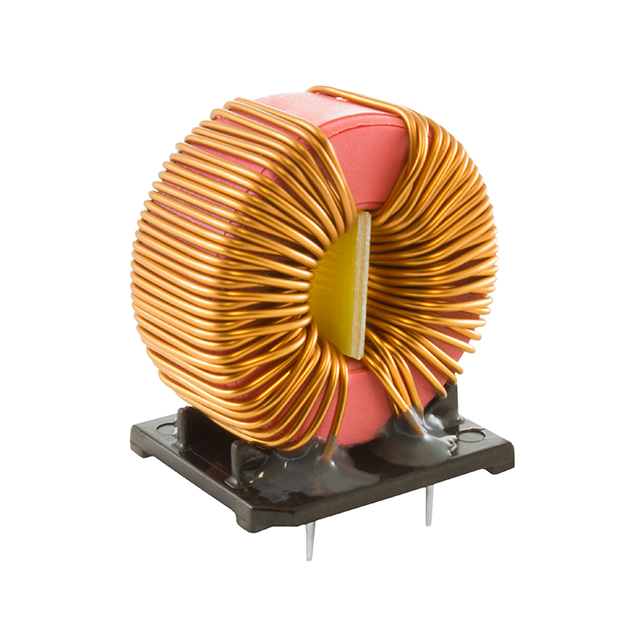

Common Mode Chokes / Filters 9A 7mH NPB SRF 1.52MHz
Common Mode Chokes / Filters 9A 7mH NPB SRF 1.52MHz
| Part | Inductance @ Frequency | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Mounting Type | Voltage Rating - AC | Current Rating (Max) [Max] | DC Resistance (DCR) (Max) [Max] | Height (Max) [Max] [z] | Height (Max) [Max] [z] | Number of Lines | Impedance @ Frequency | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pulse Electronics | 4.5 mH | 19 mm | 30 mm | 0.748 in | 1.181 in | Through Hole | 250 V | 12 A | 8.5 mOhm | 1.102 in | 28 mm | 2 | 4.4 kOhms | Vertical 4 PC Pin | 125 °C | -40 C |
 Pulse Electronics | 6.5 mH | 19 mm | 30 mm | 0.748 in | 1.181 in | Through Hole | 250 V | 9 A | 14 mOhm | 1.102 in | 28 mm | 2 | 6.4 kOhms | Vertical 4 PC Pin | 125 °C | -40 C |
Pulse Electronics | 1 mH 15.94 MHz | 19 mm | 30 mm | 0.748 in | 1.181 in | Through Hole | 250 V | 22 A | 2.1 mOhm | 1.102 in | 28 mm | 2 | 1.5 kOhms | Vertical 4 PC Pin | 125 °C | -40 C |
