917845 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

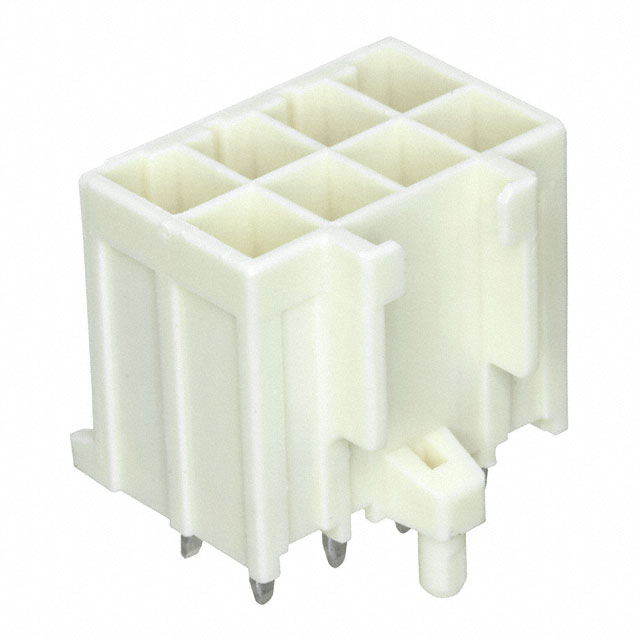

CONN HEADER VERT 8POS 3.96MM
| Part | Insulation Material | Number of Positions Loaded | Contact Material | Features | Number of Positions | Insulation Color | Termination | Insulation Height [z] | Insulation Height | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Finish - Post | Mounting Type | Style | Contact Length - Post [x] | Contact Length - Post [x] | Number of Rows [custom] | Pitch - Mating | Pitch - Mating | Fastening Type | Connector Type | Material Flammability Rating | Contact Type | Contact Shape | Shrouding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Glass Filled Nylon 6/6 Polyamide (PA66) | All | Copper Alloy | Board Guide | 8 | Natural | Kinked Pin Solder | 0.575 in | 14.6 mm | 0.181 in | 4.6 mm | Tin | Through Hole | Board to Cable/Wire | 3.81 mm | 0.15 in | 2 | 3.96 mm | 0.156 in | Locking Ramp | Header | UL94 V-0 | Tab | Rectangular | Shrouded - 4 Wall |
