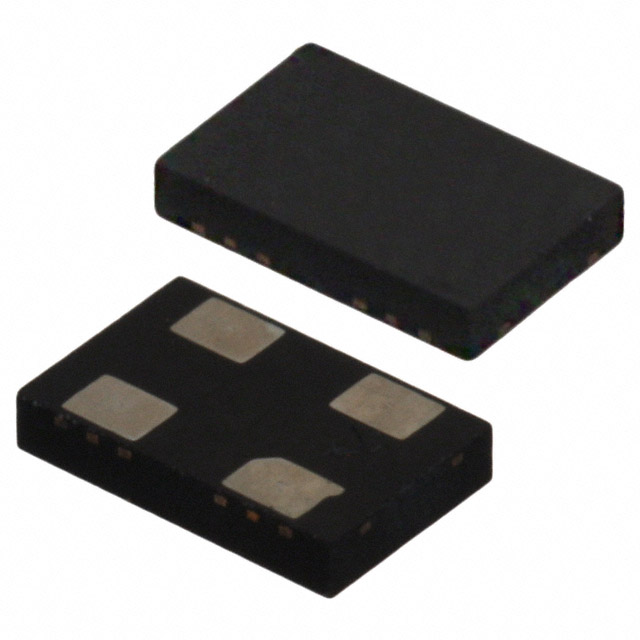

ASFLMB Series

Catalog

STANDARD CLOCK OSCILLATORS OSCILLATOR 5032 4-SMD 24MHZ +/-10PPM -40°C ~ 85°C CMOS 1.8V ~ 3.3V

Part	Current - Supply (Disable) (Max) [Max]	Output	Function	Base Resonator	Package / Case	Frequency Stability	Current - Supply (Max) [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Type
Abracon LLC ASFLMB-24.000MHZ-LY-T	15 çA	LVCMOS	Standby (Power Down)	MEMS	4-SMD No Lead	10 ppm	16 mA	3.2 mm	0.126 in	5 mm	0.197 in	Surface Mount	3.3 V	1.8 V	0.035 in	0.9 mm	24 MHz	85 °C	-40 C	XO (Standard)
Abracon LLC ASFLMB-24.576MHZ-LY-T		LVCMOS	Standby (Power Down)	MEMS	4-SMD No Lead	10 ppm	16 mA	3.2 mm	0.126 in	5 mm	0.197 in	Surface Mount	3.3 V	1.8 V	0.035 in	0.9 mm	24.576 MHz	85 °C	-40 C	XO (Standard)
Abracon LLC ASFLMB-27.000MHZ-LC-T		LVCMOS	Standby (Power Down)	MEMS	4-SMD No Lead	50 ppm	16 mA	3.2 mm	0.126 in	5 mm	0.197 in	Surface Mount	3.3 V	1.8 V	0.035 in	0.9 mm	27 MHz	85 °C	-40 C	XO (Standard)
Abracon LLC ASFLMB-106.250MHZ-LR-T	15 çA	LVCMOS	Standby (Power Down)	MEMS	4-SMD No Lead	25 ppm	16 mA	3.2 mm	0.126 in	5 mm	0.197 in	Surface Mount	3.3 V	1.8 V	0.035 in	0.9 mm	106.25 MHz	85 °C	-40 C	XO (Standard)
Abracon LLC ASFLMB-11.0592MHZ-LC-T	15 çA	LVCMOS	Standby (Power Down)	MEMS	4-SMD No Lead	50 ppm	16 mA	3.2 mm	0.126 in	5 mm	0.197 in	Surface Mount	3.3 V	1.8 V	0.035 in	0.9 mm	11.0592 MHz	85 °C	-40 C	XO (Standard)
Abracon LLC ASFLMB-14.7456MHZ-XY-T	15 çA	LVCMOS	Standby (Power Down)	MEMS	4-SMD No Lead	10 ppm	16 mA	3.2 mm	0.126 in	5 mm	0.197 in	Surface Mount	3.3 V	1.8 V	0.035 in	0.9 mm	14.7456 MHz	105 ░C	-40 C	XO (Standard)
Abracon LLC ASFLMB-24.576MHZ-LR-T	15 çA	LVCMOS	Standby (Power Down)	MEMS	4-SMD No Lead	25 ppm	16 mA	3.2 mm	0.126 in	5 mm	0.197 in	Surface Mount	3.3 V	1.8 V	0.035 in	0.9 mm	24.576 MHz	85 °C	-40 C	XO (Standard)
Abracon LLC ASFLMB-14.31818MHZ-XY-T	15 çA	LVCMOS	Standby (Power Down)	MEMS	4-SMD No Lead	10 ppm	16 mA	3.2 mm	0.126 in	5 mm	0.197 in	Surface Mount	3.3 V	1.8 V	0.035 in	0.9 mm	14.31818 MHz	105 ░C	-40 C	XO (Standard)
Abracon LLC ASFLMB-20.000MHZ-LR-T	15 çA	LVCMOS	Standby (Power Down)	MEMS	4-SMD No Lead	25 ppm	16 mA	3.2 mm	0.126 in	5 mm	0.197 in	Surface Mount	3.3 V	1.8 V	0.035 in	0.9 mm	20 MHz	85 °C	-40 C	XO (Standard)
Abracon LLC ASFLMB-120.000MHZ-LY-T		LVCMOS	Standby (Power Down)	MEMS	4-SMD No Lead	10 ppm	16 mA	3.2 mm	0.126 in	5 mm	0.197 in	Surface Mount	3.3 V	1.8 V	0.035 in	0.9 mm	120 MHz	85 °C	-40 C	XO (Standard)
