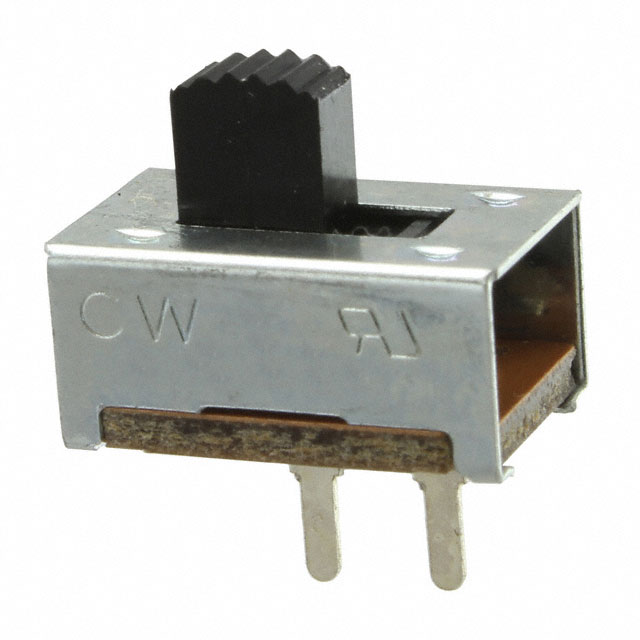

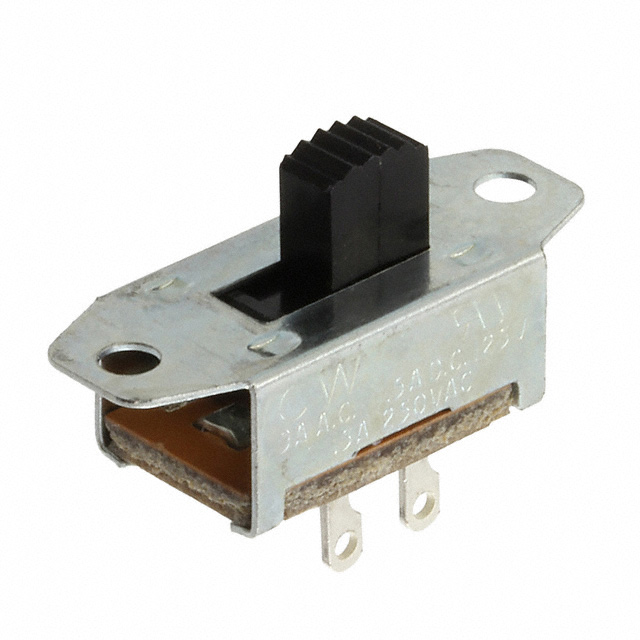

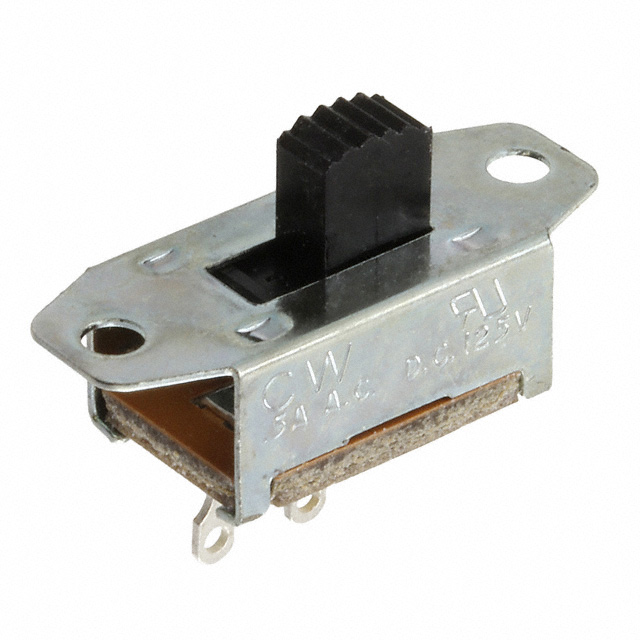

GF-123 Series
Manufacturer: CW Industries
Beta
⌘K
SWITCH SLIDE SPST 8.5A 125V
| Part | Electrical Life | Actuator Material | Switch Travel | Mechanical Life | Voltage Rating - AC | Switch Function | Actuator Length [x] | Circuit | Contact Material | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating - DC | Current Rating (Amps) | Termination Style | Contact Finish | Contact Timing | Actuator Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CW Industries | 6000 Cycles | Nylon 6/6 Polyamide (PA66) | 3.61 mm | 10000 Steps | 125 V | On-Off | 5.08 mm | SPST | Copper | Through Hole | -10 °C | 104 °C | 125 VDC | 8.5 A 500 mA | PC Pin | Silver | Not Specified | Standard |
 CW Industries | 6000 Cycles | Nylon 6/6 Polyamide (PA66) | 3.61 mm | 10000 Steps | 125 V | On-Off | 5.08 mm | SPST | Copper | Panel Mount | -10 °C | 104 °C | 125 VDC | 500 mA | Solder Lug | Silver | Not Specified | Standard |
 CW Industries | 6000 Cycles | Nylon 6/6 Polyamide (PA66) | 3.61 mm | 10000 Steps | 125 V | On-Off | 5.08 mm | SPST | Copper | Panel Mount | -10 °C | 104 °C | 125 VDC | 3 A 500 mA | Solder Lug | Silver | Not Specified | Standard |
 CW Industries | 6000 Cycles | Nylon 6/6 Polyamide (PA66) | 3.61 mm | 10000 Steps | 125 V | On-Off | 3.18 mm | SPST | Copper | Panel Mount | -10 °C | 104 °C | 125 VDC | 500 mA | Solder Lug | Silver | Not Specified | Standard |
CW Industries | 6000 Cycles | Nylon 6/6 Polyamide (PA66) | 3.61 mm | 10000 Steps | 125 V | On-Off | 11.5 mm | SPST | Copper | Panel Mount | -10 °C | 104 °C | 125 VDC | 3 A 500 mA | PC Pin | Silver | Not Specified | Standard |
CW Industries | 6000 Cycles | Nylon 6/6 Polyamide (PA66) | 3.61 mm | 10000 Steps | 125 V | On-Off | 3.18 mm | SPST | Copper | Panel Mount | -10 °C | 104 °C | 125 VDC | 3 A 500 mA | Solder Lug | Silver | Not Specified | Standard |
