ANT-B13 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

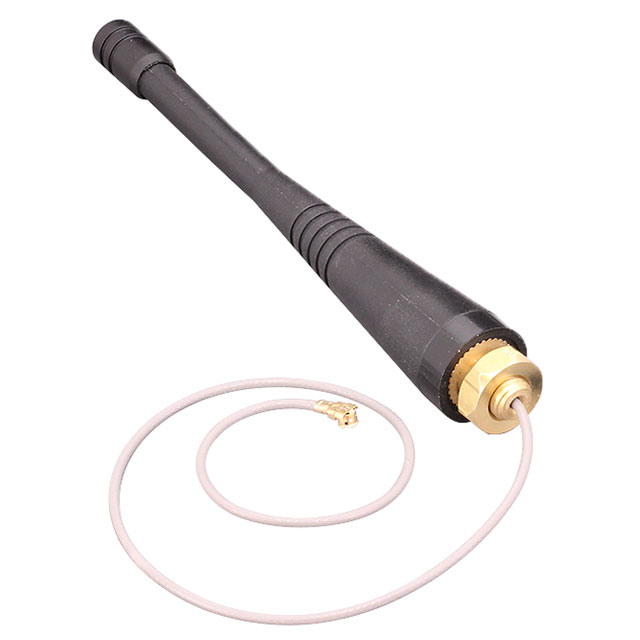

ANTENNA 1/4 WAVE WHIP LTE B13 1.32 UFL
| Part | Frequency (Center/Band) | Features | Gain | Mounting Type | RF Family/Standard | Termination | Power - Max [Max] | Number of Bands | Frequency Range [Max] | Frequency Range [Min] | VSWR | Frequency Group [Max] | Frequency Group | Frequency Group [Min] | Antenna Type | Applications | Height (Max) [Max] [z] | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 765 MHz | Cable - 216mm O-Ring Compatible | 1.7 dBi | Panel Mount | Cellular | I-PEX MHF1 U.FL (UMCC) | 10 W | 1 | 790 MHz | 740 MHz | 1.9 | 1 GHz | UHF | 300 MHz | Whip Straight | Cellular LTE NB-IoT UMTS | 3.874 in | 98.4 mm |
 TE Connectivity AMP Connectors | 765 MHz | Cable - 216mm O-Ring Compatible | 1.7 dBi | Panel Mount | Cellular | Solder | 10 W | 1 | 790 MHz | 740 MHz | 1.9 | 1 GHz | UHF | 300 MHz | Whip Straight | Cellular LTE NB-IoT UMTS | 3.874 in | 98.4 mm |
