DS90UB901Q-Q1 Series

10 - 43MHz 14 Bit Color FPD-Link III Serializer with Bidirectional Control Channel

Catalog

10 - 43MHz 14 Bit Color FPD-Link III Serializer with Bidirectional Control Channel

Part	Output Type	Function	Number of Outputs	Data Rate	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Supplier Device Package	Input Type	Qualification	Grade

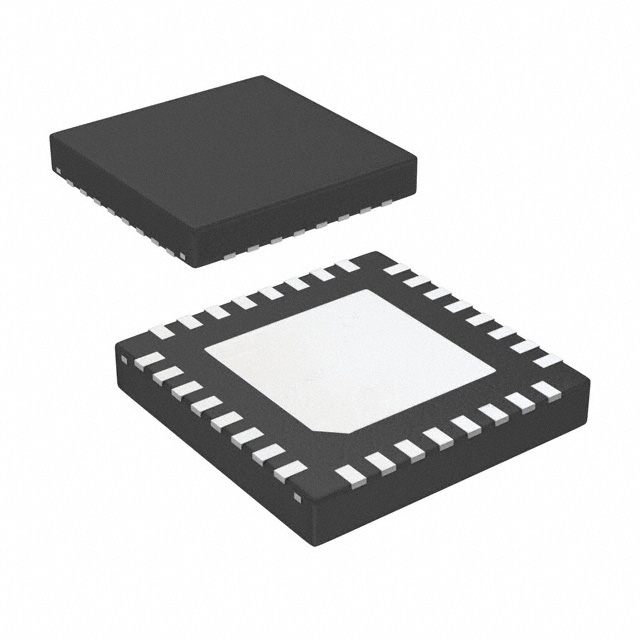

Texas Instruments DS90UB901QSQ/NOPB	FPD-Link III LVDS	Serializer	1	688 Mbps	1.89 V 3.6 V	1.71 V 3 V	105 °C	-40 °C	Surface Mount	32-WQFN (5x5)	LVCMOS	AEC-Q100	Automotive
Texas Instruments DS90UB901QSQE/NOPB	FPD-Link III LVDS	Serializer	1	688 Mbps	1.89 V 3.6 V	1.71 V 3 V	105 °C	-40 °C	Surface Mount	32-WQFN (5x5)	LVCMOS	AEC-Q100	Automotive
Texas Instruments DS90UB901QSQX/NOPB	FPD-Link III LVDS	Serializer	1	688 Mbps	1.89 V 3.6 V	1.71 V 3 V	105 °C	-40 °C	Surface Mount	32-WQFN (5x5)	LVCMOS	AEC-Q100	Automotive

Catalog

10 - 43MHz 14 Bit Color FPD-Link III Serializer with Bidirectional Control Channel

Key Features

• 10 MHz to 43 MHz Input PCLK Support160 Mbps to 688 Mbps Data ThroughputSingle Differential Pair InterconnectBidirectional Control Interface Channel with I2C SupportEmbedded Clock with DC Balanced Coding to Support AC-Coupled InterconnectsCapable to Drive up to 10 Meters Shielded Twisted-PairI2C Compatible Serial InterfaceSingle Hardware Device Addressing Pin16-bit Data Payload with CRC (Cyclic Redundancy Check) for Checking Data IntegrityUp to 6 Programmable GPIO'sLOCK Output Reporting Pin and AT-SPEED BIST Diagnosis Feature to Validate Link IntegrityIntegrated Termination Resistors1.8V- or 3.3V-Compatible Parallel Bus InterfaceSingle Power Supply at 1.8VISO 10605 ESD and IEC 61000-4-2 ESD CompliantAutomotive Grade Product: AEC-Q100 Grade 2 QualifiedTemperature Range −40°C to +105°CNo Reference Clock Required on DeserializerProgrammable Receive EqualizationEMI/EMC MitigationDES Programmable Spread Spectrum (SSCG) OutputsDES Receiver Staggered OutputsAll trademarks are the property of their respective owners.10 MHz to 43 MHz Input PCLK Support160 Mbps to 688 Mbps Data ThroughputSingle Differential Pair InterconnectBidirectional Control Interface Channel with I2C SupportEmbedded Clock with DC Balanced Coding to Support AC-Coupled InterconnectsCapable to Drive up to 10 Meters Shielded Twisted-PairI2C Compatible Serial InterfaceSingle Hardware Device Addressing Pin16-bit Data Payload with CRC (Cyclic Redundancy Check) for Checking Data IntegrityUp to 6 Programmable GPIO'sLOCK Output Reporting Pin and AT-SPEED BIST Diagnosis Feature to Validate Link IntegrityIntegrated Termination Resistors1.8V- or 3.3V-Compatible Parallel Bus InterfaceSingle Power Supply at 1.8VISO 10605 ESD and IEC 61000-4-2 ESD CompliantAutomotive Grade Product: AEC-Q100 Grade 2 QualifiedTemperature Range −40°C to +105°CNo Reference Clock Required on DeserializerProgrammable Receive EqualizationEMI/EMC MitigationDES Programmable Spread Spectrum (SSCG) OutputsDES Receiver Staggered OutputsAll trademarks are the property of their respective owners.

Description

The DS90UB901Q/DS90UB902Q chipset offers a FPD-Link III interface with a high-speed forward channel and a bidirectional control channel for data transmission over a single differential pair. The Serializer/Deserializer pair is targeted for direct connections between automotive camera systems and Host Controller/Electronic Control Unit (ECU). The primary transport sends 16 bits of image data over a single high-speed serial stream together with a low latency bidirectional control channel transport that supports I2C. Included with the 16-bit payload is a selectable data integrity option for CRC (Cyclic Redundancy Check) to monitor transmission link errors. Using TI’s embedded clock technology allows transparent full-duplex communication over a single differential pair, carrying asymmetrical bidirectional control information without the dependency of video blanking intervals. This single serial stream simplifies transferring a wide data bus over PCB traces and cable by eliminating the skew problems between parallel data and clock paths. This significantly saves system cost by narrowing data paths that in turn reduce PCB layers, cable width, and connector size and pins. In addition, the Deserializer inputs provide equalization control to compensate for loss from the media over longer distances. Internal DC balanced encoding/decoding is used to support AC-Coupled interconnects. A Serializer standby function provides a low power-savings mode with a remote wake up capability for signaling of a remote device. The Serializer is offered in a 32-pin WQFN (5mm x 5mm) package, and Deserializer is offered in a 40-pin WQFN (6mm x 6mm) package. The DS90UB901Q/DS90UB902Q chipset offers a FPD-Link III interface with a high-speed forward channel and a bidirectional control channel for data transmission over a single differential pair. The Serializer/Deserializer pair is targeted for direct connections between automotive camera systems and Host Controller/Electronic Control Unit (ECU). The primary transport sends 16 bits of image data over a single high-speed serial stream together with a low latency bidirectional control channel transport that supports I2C. Included with the 16-bit payload is a selectable data integrity option for CRC (Cyclic Redundancy Check) to monitor transmission link errors. Using TI’s embedded clock technology allows transparent full-duplex communication over a single differential pair, carrying asymmetrical bidirectional control information without the dependency of video blanking intervals. This single serial stream simplifies transferring a wide data bus over PCB traces and cable by eliminating the skew problems between parallel data and clock paths. This significantly saves system cost by narrowing data paths that in turn reduce PCB layers, cable width, and connector size and pins. In addition, the Deserializer inputs provide equalization control to compensate for loss from the media over longer distances. Internal DC balanced encoding/decoding is used to support AC-Coupled interconnects. A Serializer standby function provides a low power-savings mode with a remote wake up capability for signaling of a remote device. The Serializer is offered in a 32-pin WQFN (5mm x 5mm) package, and Deserializer is offered in a 40-pin WQFN (6mm x 6mm) package.
