AGC Series
Manufacturer: Pulse Electronics
Beta
⌘K

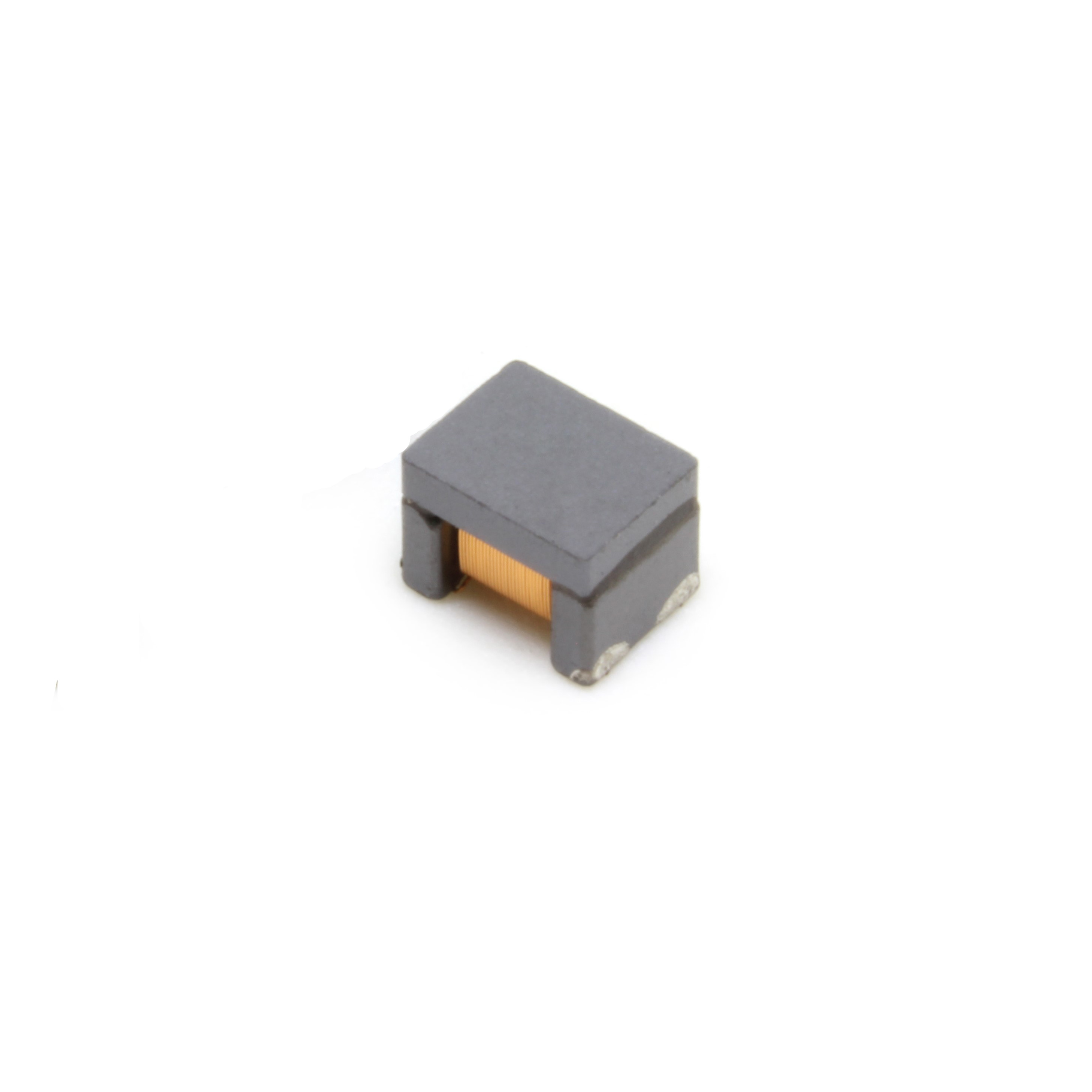

COMMON MODE CHOKES / FILTERS 2500OHMS 80V 0.23A RDC=1 -40 / + 125C AEC-Q200
| Part | Current Rating (Max) [Max] | DC Resistance (DCR) (Max) | Package / Case | Voltage Rating - DC | Operating Temperature [Max] | Operating Temperature [Min] | Ratings | Impedance @ Frequency | Filter Type | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Number of Lines | Height (Max) [z] | Height (Max) [z] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pulse Electronics | 230 mA | 1 Ohm | Horizontal 4 PC Pad | 50 VDC | 125 °C | -40 C | AEC-Q200 | 3.5 kOhms | Signal Line | 0.177 in | 4.5 mm | 3.2 mm | 0.126 in | 2 | 0.128 in | 3.25 mm | Surface Mount |
Pulse Electronics | 360 mA | 600 mOhm | Horizontal 4 PC Pad | 50 VDC | 125 °C | -40 C | AEC-Q200 | 600 Ohms | Signal Line | 0.177 in | 4.5 mm | 3.2 mm | 0.126 in | 2 | 0.128 in | 3.25 mm | Surface Mount |
