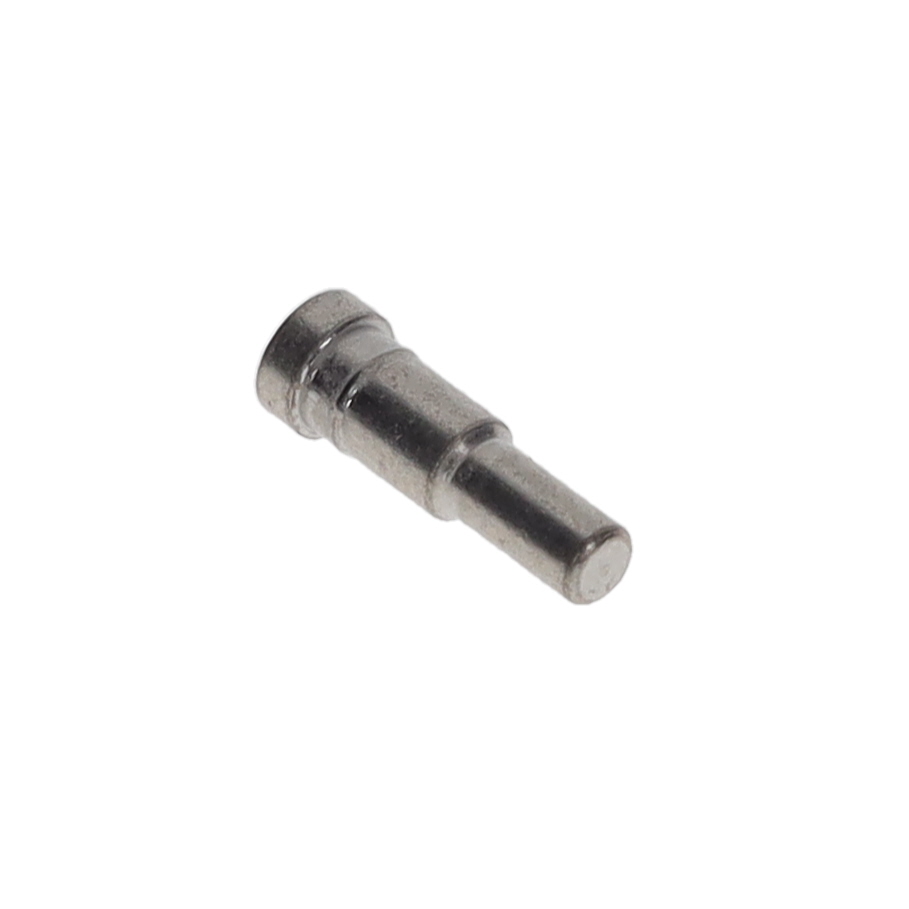

8853-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONN PIN RCPT
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Pin Hole Diameter [diameter] | Pin Hole Diameter [diameter] | Tail Type | Termination | Contact Finish Thickness | Contact Finish Thickness | Length - Overall | Length - Overall | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Flange Diameter [diameter] | Flange Diameter [diameter] | Contact Material | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Socket Depth [z] | Socket Depth [z] | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 1.63 mm | 0.064 in | No Tail | Press-Fit | 30 Áin | 0.76 Ám | 6.6 mm | 0.26 in | 1.17 mm | 0.81 mm | 0.046 " | 0.032 " | 2.16 mm | 0.085 " | Beryllium Copper | 1.8 mm | 0.071 in | 0.21 in | 5.33 mm | Gold |
Mill-Max Manufacturing Corp. | -55 C | 125 °C | 1.63 mm | 0.064 in | No Tail | Press-Fit | 200 Áin | 5.08 Ám | 6.6 mm | 0.26 in | 1.17 mm | 0.81 mm | 0.046 " | 0.032 " | 2.16 mm | 0.085 " | Beryllium Copper | 1.8 mm | 0.071 in | 0.21 in | 5.33 mm | Tin |
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 1.63 mm | 0.064 in | No Tail | Press-Fit | 10 Áin | 0.25 Ám | 6.6 mm | 0.26 in | 1.17 mm | 0.81 mm | 0.046 " | 0.032 " | 2.16 mm | 0.085 " | Beryllium Copper | 1.8 mm | 0.071 in | 0.21 in | 5.33 mm | Gold |
