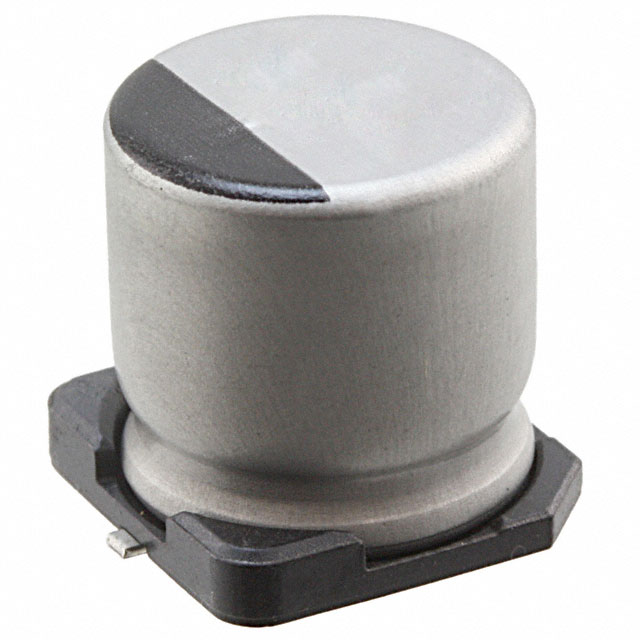

JZV Series

Manufacturer: Rubycon

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - SMD LOW IMPEDANCE ELECTROLYTIC CAPACITORS

Part	Ripple Current @ Low Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Mounting Type	Applications	Impedance	Voltage - Rated	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Capacitance	Ratings	Ripple Current @ High Frequency	Lifetime @ Temp.	Package / Case	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Min]	Operating Temperature [Max]	Polarization	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Rubycon 16JZV47M5X6.1	54.4 mA	0.197 in	5 mm	Surface Mount	Automotive High Temperature Reflow	700 mOhms	16 V	0.209 in 5.3 mm	0.209 in 5.3 mm	47 µF	AEC-Q200	170 mA	2000 Hrs	Radial Can - SMD	20 %	6.1 mm	0.24 "	-55 C	105 ░C	Polar
Rubycon 6.3JZV330M6.3X8	180 mA	0.248 "	6.3 mm	Surface Mount	Automotive High Temperature Reflow	0.34 Ohms	6.3 VDC	6.6 mm	6.6 mm	330 µF	AEC-Q200		2000 Hrs	Radial Can - SMD	20 %			-55 C	105 ░C	Polar	0.26 in	0.26 in	8 mm	0.315 in
Rubycon 25JZV330M8X10.5	360 mA	0.315 in	8 mm	Surface Mount	Automotive High Temperature Reflow	0.16 Ohms	25 VDC	8.3 mm	8.3 mm	330 µF	AEC-Q200	600 mA	2000 Hrs	Radial Can - SMD	20 %			-55 C	105 ░C	Polar	0.327 in	0.327 in	10.5 mm	0.413 "
Rubycon 10JZV470M8X10.5	360 mA	0.315 in	8 mm	Surface Mount	Automotive High Temperature Reflow	0.16 Ohms	10 V	8.3 mm	8.3 mm	470 µF	AEC-Q200	600 mA	2000 Hrs	Radial Can - SMD	20 %			-55 C	105 ░C	Polar	0.327 in	0.327 in	10.5 mm	0.413 "
Rubycon 10JZV1000M10X10.5	510 mA	0.394 in	10 mm	Surface Mount	Automotive High Temperature Reflow	80 mOhms	10 V	10.3 mm	10.3 mm	1000 µF	AEC-Q200	850 mA	2000 Hrs	Radial Can - SMD	20 %			-55 C	105 ░C	Polar	0.406 in	0.406 "	10.5 mm	0.413 "
