THB1212 Series
Manufacturer: Delta Electronics
Beta
⌘K

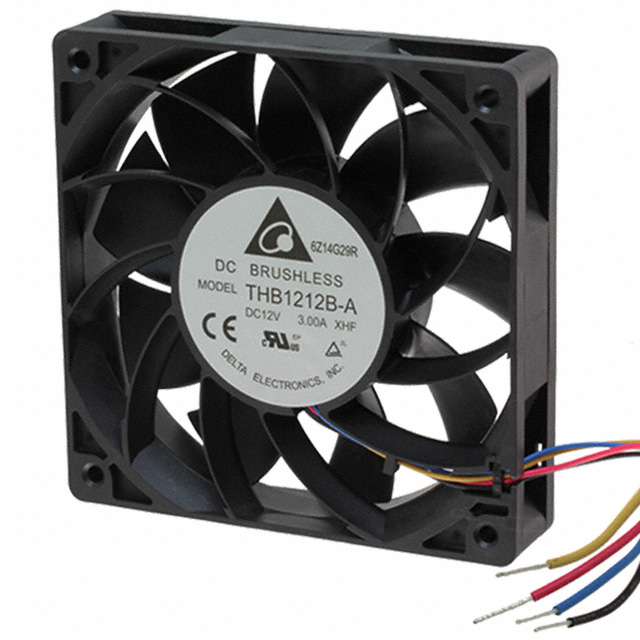

FAN AXIAL 120X25.4MM 12VDC WIRE
| Part | Current Rating (Amps) | Material - Blade | Voltage Range [Min] | Voltage Range [Max] | Material - Frame | Lifetime @ Temp. | Bearing Type | Fan Type | Termination | Size / Dimension [z] | Size / Dimension [x] | Approval Agency | Width [y] | Noise | Static Pressure | Static Pressure | Power (Watts) | Weight | Weight | Air Flow | Air Flow | Operating Temperature [Max] | Operating Temperature [Min] | Features | RPM | Voltage - Rated |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | 1.6 A | Plastic | 7 V | 15 V | Plastic | 70000 Hrs | Ball | Tubeaxial | 4 Wire Leads | 120 mm | 120 mm | CE cURus TUV | 25.4 mm | 59 dB(A) | 0.899 in H2O | 223.9 Pa | 19.2 W | 0.437 lb | 198 g | 5.16 m³/min | 184.2 CFM | 70 °C | -10 °C | Locked Rotor Protection PWM Control Speed Sensor (Tach) | 5300 RPM | 12 VDC |
