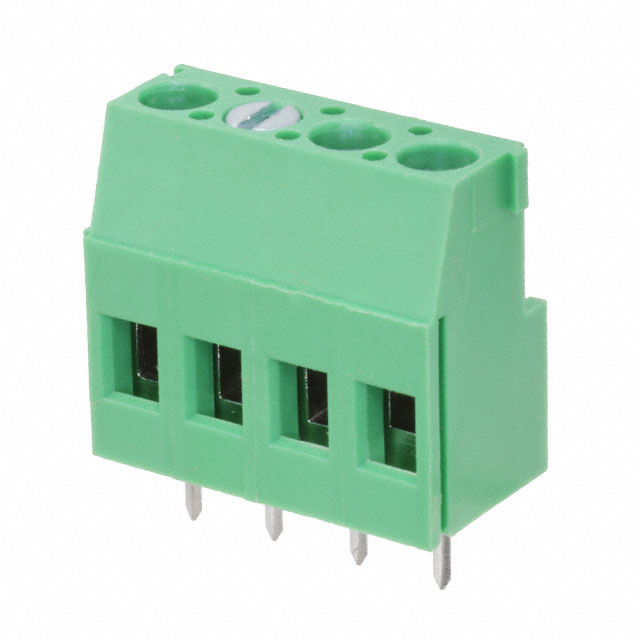

EB147A Series
Manufacturer: Adam Tech
Beta
⌘K
EURO BLOCK, 3 POSITION
| Part | Screw Material - Plating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material - Plating | Torque - Screw | Torque - Screw | Clamp Material - Plating | Screw Thread | Voltage | Mating Orientation | Pitch | Pitch | Features | Wire Termination | Color | Wire Gauge [Min] | Wire Gauge [Max] | Number of Levels | Current | Mounting Type | Positions Per Level |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

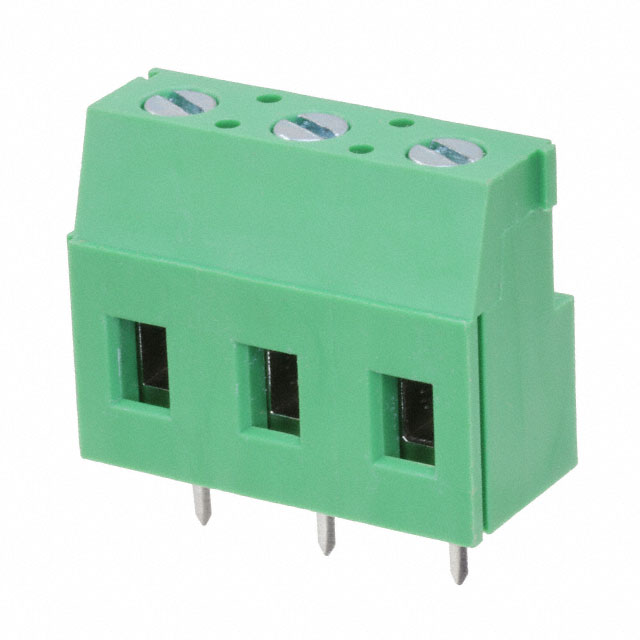

 Adam Tech | Steel - Zinc Plated | -40 C | 105 ░C | Brass - Tin Plated | 4.4 Lb-In | 0.5 Nm | Brass - Nickel Plated | M3 | 300 VDC | Horizontal with Board | 0.295 in | 7.5 mm | Interlocking (Side) | Screw - Rising Cage Clamp | Green | 12 AWG | 26 AWG | 1 | 16 A | Through Hole | 3 |

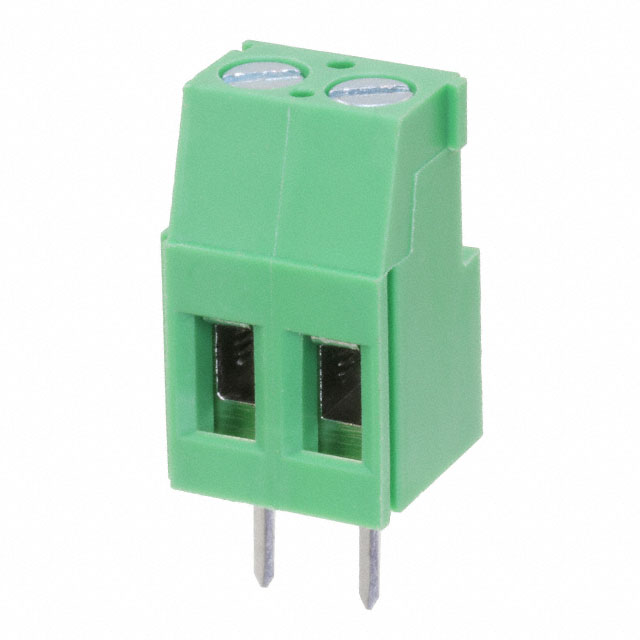

 Adam Tech | Steel - Zinc Plated | -40 C | 105 ░C | Brass - Tin Plated | 4.4 Lb-In | 0.5 Nm | Brass - Nickel Plated | M3 | 300 VDC | Horizontal with Board | 0.2 in | 5.08 mm | Interlocking (Side) | Screw - Rising Cage Clamp | Green | 12 AWG | 26 AWG | 1 | 16 A | Through Hole | 2 |

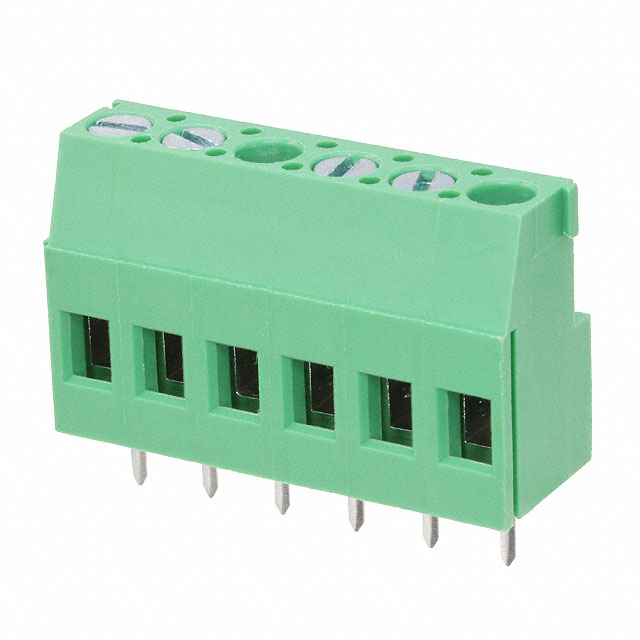

 Adam Tech | Steel - Zinc Plated | -40 C | 105 ░C | Brass - Tin Plated | 4.4 Lb-In | 0.5 Nm | Brass - Nickel Plated | M3 | 300 VDC | Horizontal with Board | 0.197 in | 5 mm | Interlocking (Side) | Screw - Rising Cage Clamp | Green | 12 AWG | 26 AWG | 1 | 16 A | Through Hole | 6 |

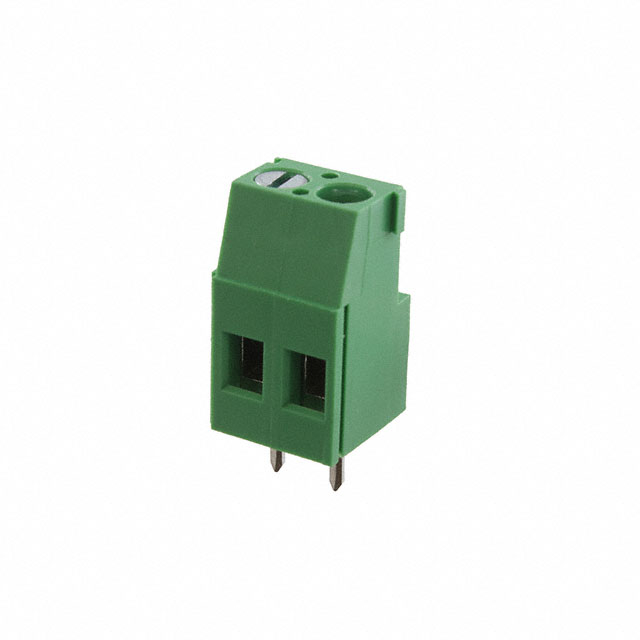

 Adam Tech | Steel - Zinc Plated | -40 C | 105 ░C | Brass - Tin Plated | 4.4 Lb-In | 0.5 Nm | Brass - Nickel Plated | M3 | 300 VDC | Horizontal with Board | 0.197 in | 5 mm | Interlocking (Side) | Screw - Rising Cage Clamp | Green | 12 AWG | 26 AWG | 1 | 16 A | Through Hole | 2 |
 Adam Tech | Steel - Zinc Plated | -40 C | 105 ░C | Brass - Tin Plated | 4.4 Lb-In | 0.5 Nm | Brass - Nickel Plated | M3 | 300 VDC | Horizontal with Board | 0.197 in | 5 mm | Interlocking (Side) | Screw - Rising Cage Clamp | Green | 12 AWG | 26 AWG | 1 | 16 A | Through Hole | 4 |

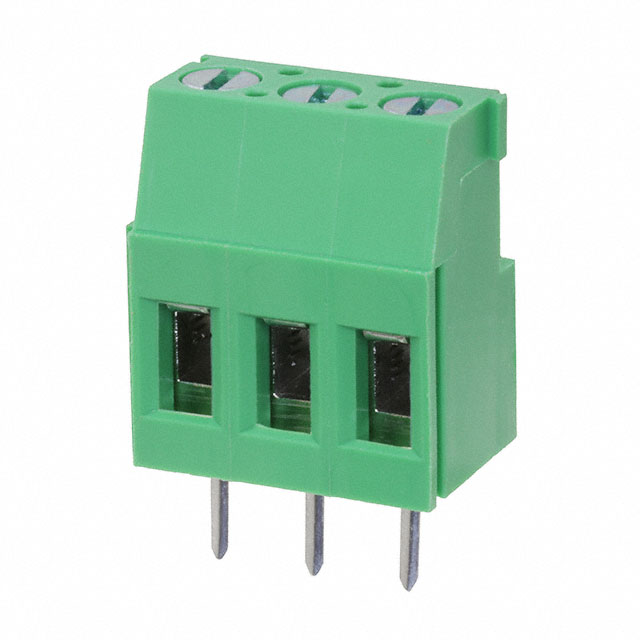

 Adam Tech | Steel - Zinc Plated | -40 C | 105 ░C | Brass - Tin Plated | 4.4 Lb-In | 0.5 Nm | Brass - Nickel Plated | M3 | 300 VDC | Horizontal with Board | 0.2 in | 5.08 mm | Interlocking (Side) | Screw - Rising Cage Clamp | Green | 12 AWG | 26 AWG | 1 | 16 A | Through Hole | 3 |

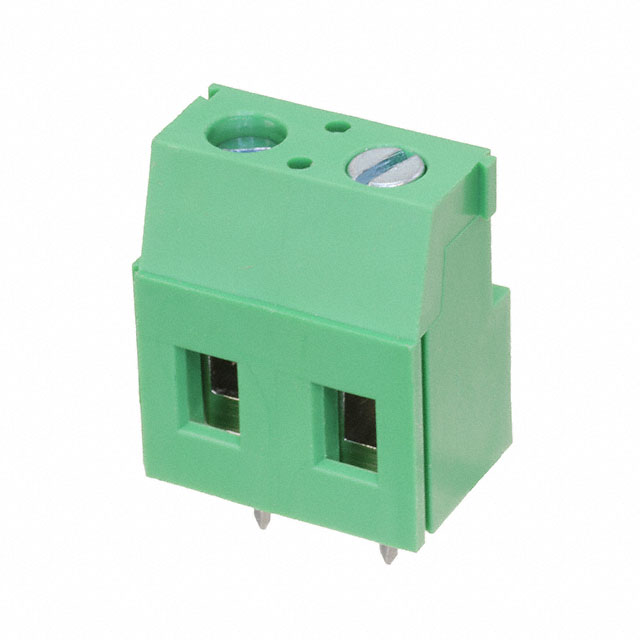

 Adam Tech | Steel - Zinc Plated | -40 C | 105 ░C | Brass - Tin Plated | 4.4 Lb-In | 0.5 Nm | Brass - Nickel Plated | M3 | 300 VDC | Horizontal with Board | 0.295 in | 7.5 mm | Interlocking (Side) | Screw - Rising Cage Clamp | Green | 12 AWG | 26 AWG | 1 | 16 A | Through Hole | 2 |

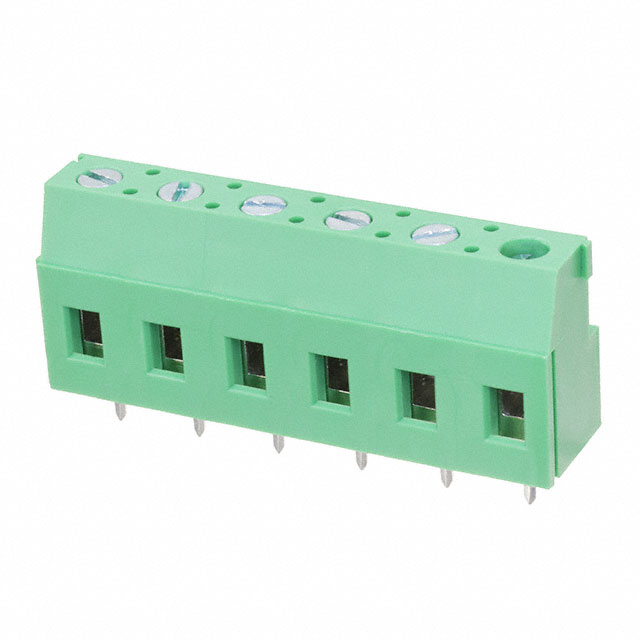

 Adam Tech | Steel - Zinc Plated | -40 C | 105 ░C | Brass - Tin Plated | 4.4 Lb-In | 0.5 Nm | Brass - Nickel Plated | M3 | 300 VDC | Horizontal with Board | 0.295 in | 7.5 mm | Interlocking (Side) | Screw - Rising Cage Clamp | Green | 12 AWG | 26 AWG | 1 | 16 A | Through Hole | 6 |
