Cr0 Series Series

Round Single Pole Specialty Rocker Switch

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Round Single Pole Specialty Rocker Switch

Part	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Current Rating (Amps)	Termination Style	Circuit	Panel Cutout Dimensions [diameter]	Actuator Type	Electrical Life	Color - Actuator/Cap	Actuator Marking	Mounting Type	Voltage Rating - AC	Approval Agency	Illumination Voltage (Nominal)	Illumination Type, Color	Features

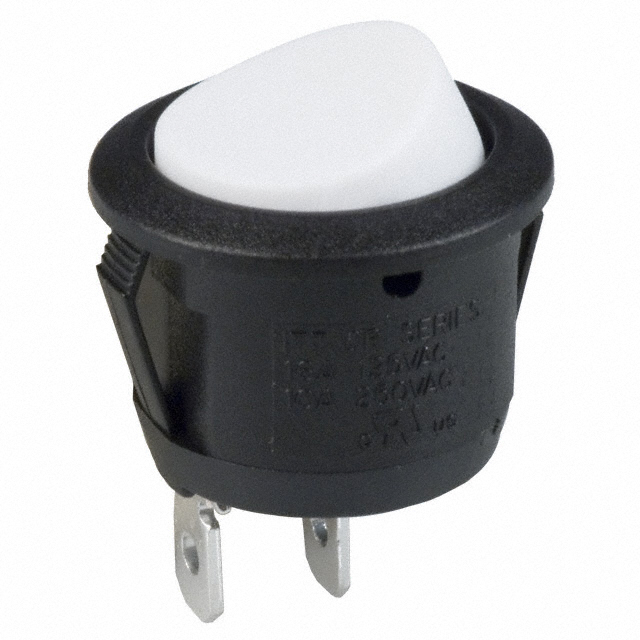

Littelfuse/Commercial Vehicle Products CR102J11S215QF	85 °C	-20 C	On-Off	16 A	Quick Connect - 0.187" (4.7mm)	SPST	20.2 mm	Round	10000 Cycles	White	No Marking	Panel Mount Snap-In	125 V	cULus

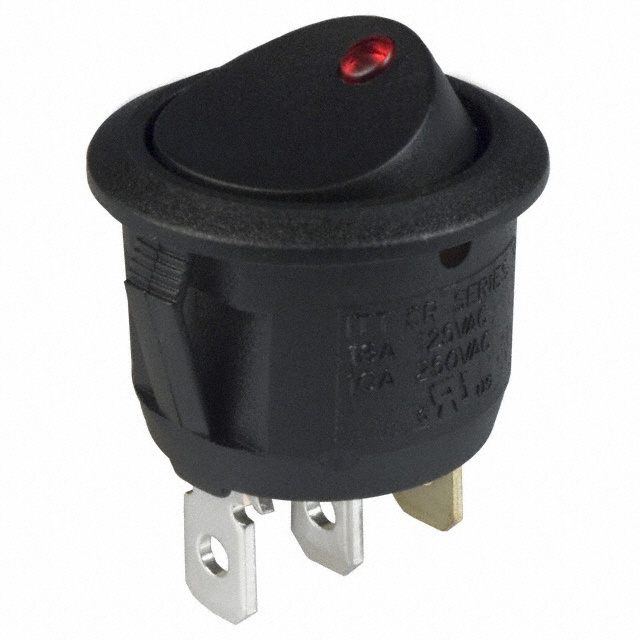

Littelfuse/Commercial Vehicle Products CR102J4RS215QF7	85 °C	-20 C	On-Off	16 A	Quick Connect - 0.187" (4.7mm)	SPST	20.2 mm	Round - Illuminated	10000 Cycles	Red	No Marking	Panel Mount Snap-In	125 V	cULus	125 VAC	Neon Red

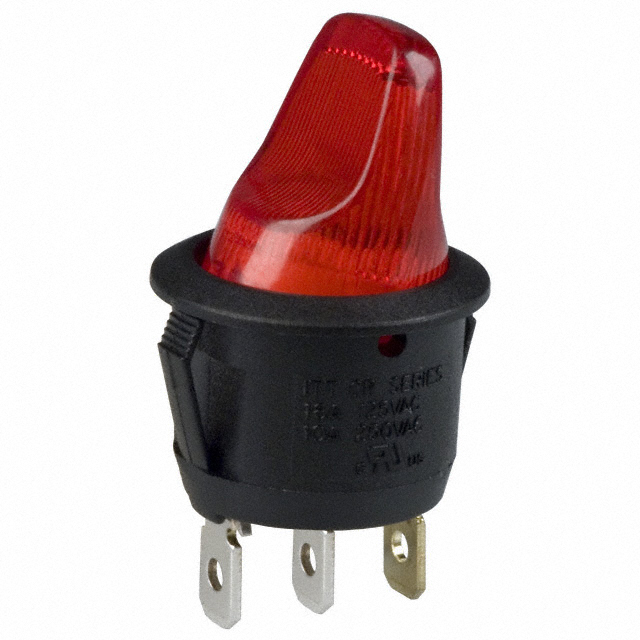

Littelfuse/Commercial Vehicle Products CR102JPRS215QF8	85 °C	-20 C	On-Off	10 A	Quick Connect - 0.187" (4.7mm)	SPST	20.2 mm	Paddle - Illuminated	10000 Cycles	Red	No Marking	Panel Mount Snap-In	125 V	cULus	250 VAC	Neon Red

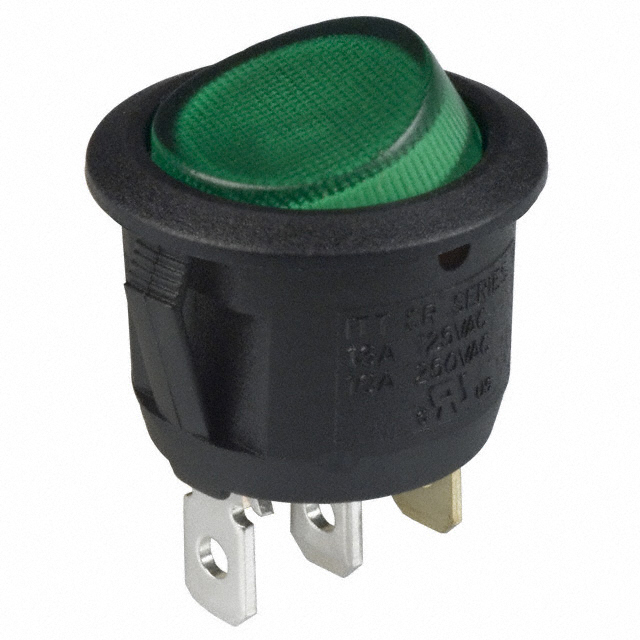

Littelfuse/Commercial Vehicle Products CR102J3GS215QF7	85 °C	-20 C	On-Off	16 A	Quick Connect - 0.187" (4.7mm)	SPST	20.2 mm	Round - Illuminated	10000 Cycles	Green	No Marking	Panel Mount Snap-In	125 V	cULus	125 VAC	Green Neon

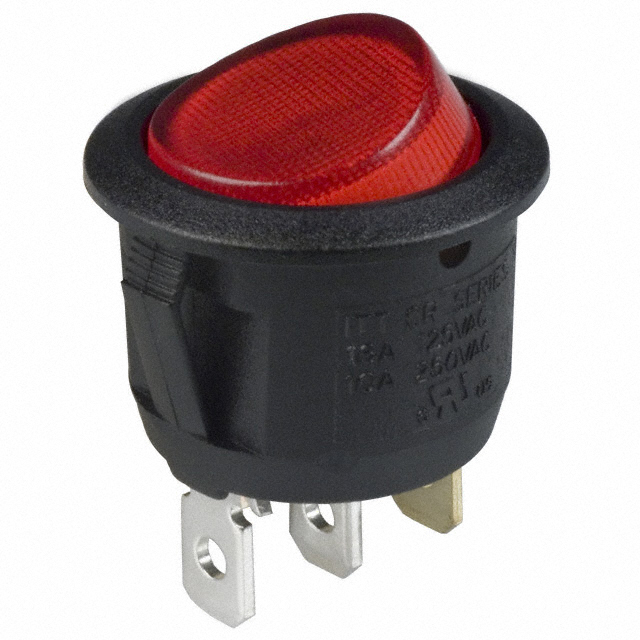

Littelfuse/Commercial Vehicle Products CR102J3RS215QF8	85 °C	-20 C	On-Off	16 A	Quick Connect - 0.187" (4.7mm)	SPST	20.2 mm	Round - Illuminated	10000 Cycles	Red	No Marking	Panel Mount Snap-In	125 V	cULus	250 VAC	Neon Red

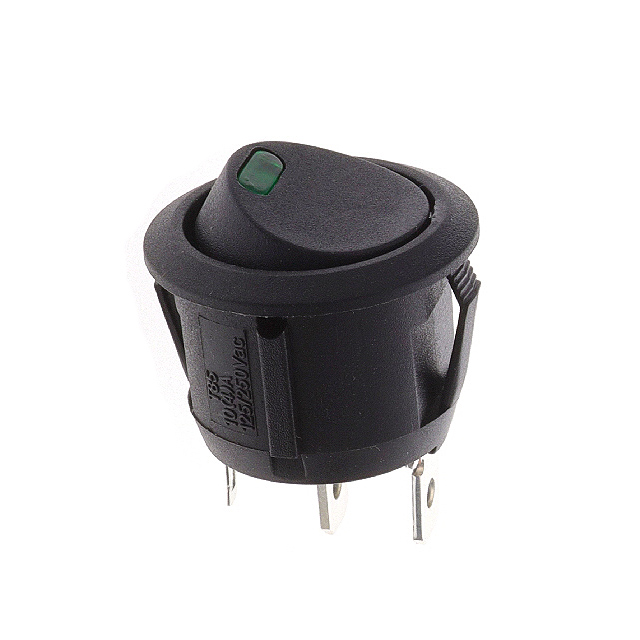

Littelfuse/Commercial Vehicle Products CR102J5GS215QF6	85 °C	-20 C	On-Off	16 A	Quick Connect - 0.187" (4.7mm)	SPST	20.2 mm	Round - Illuminated	10000 Cycles	Red	No Marking	Panel Mount Snap-In	125 V	cULus	1.85 VDC	Green LED
Littelfuse/Commercial Vehicle Products CR102J25S215QF	85 °C	-20 C	On-Off	16 A	Quick Connect - 0.187" (4.7mm)	SPST	20.2 mm	Round	10000 Cycles	Black Red	No Marking	Panel Mount Snap-In	125 V	cULus			Two-Tone Rocker
Littelfuse/Commercial Vehicle Products CR102J3GS215QF8	85 °C	-20 C	On-Off	16 A	Quick Connect - 0.187" (4.7mm)	SPST	20.2 mm	Round - Illuminated	10000 Cycles	Green	No Marking	Panel Mount Snap-In	125 V	cULus	250 VAC	Green Neon
Littelfuse/Commercial Vehicle Products CR102J5AS215QF6	85 °C	-20 C	On-Off	16 A	Quick Connect - 0.187" (4.7mm)	SPST	20.2 mm	Round - Illuminated	10000 Cycles	Red	No Marking	Panel Mount Snap-In	125 V	cULus	1.85 VDC	Amber LED

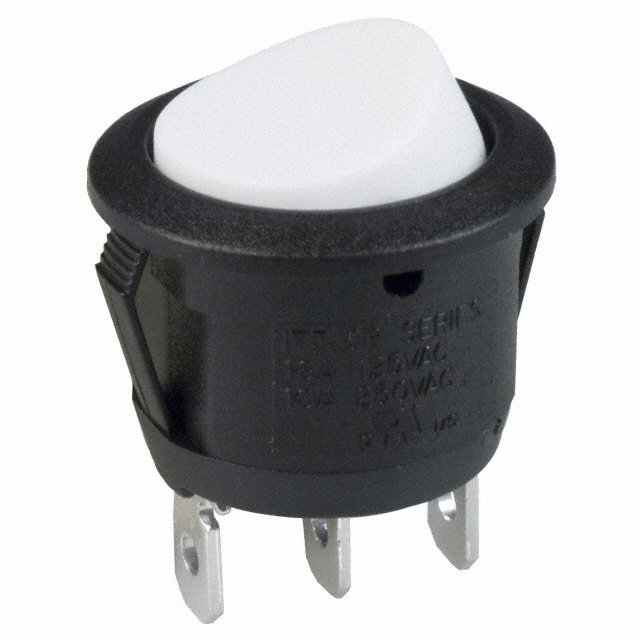

Littelfuse/Commercial Vehicle Products CR101J11S215QF	85 °C	-20 C	On-On	16 A	Quick Connect - 0.187" (4.7mm)	SPDT	20.2 mm	Round	10000 Cycles	White	No Marking	Panel Mount Snap-In	125 V	cULus

Catalog

Round Single Pole Specialty Rocker Switch

Key Features

• Round actuator and body

• Multiple illuminated versions available

• IP65 splash proof rubber boot option

Description

The CR series from C&K are round single pole specialty rocker switches, perfect for use in small and large appliances, computers and peripherals and audio/video equipment. With a round actuator and body, an IP65 rated splash proof rubber boot option and multiple illuminated versions available, CR switches are sure to give designers what they need.
