HWS300 Series

Catalog

AC/DC POWER SUPPLY SINGLE-OUT 5V 60A 300W

Part	Applications	Mounting Type	Voltage - Input [Max]	Voltage - Input [Min]	Features	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Approval Agency	Current - Output 1	Voltage - Isolation	Type	Voltage - Output 1	Number of Outputs	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Efficiency	Current - Output 1 [custom]	Voltage - Output 1 [custom]
TDK Corporation HWS300-5	ITE (Commercial)	Chassis Mount	265 VAC	85 VAC	Adjustable Output DC Input Capable Load Sharing Remote On/Off Remote Sense Universal Input	70 °C	-10 °C	300 W	CE	60 A	3000 V	Conformal Coated Enclosed	5 V	1	2.4 in	165.1 mm	6.5 in	82 mm	61 mm	3.23 in
TDK Corporation HWS300-24/HD	ITE (Commercial)	Chassis Mount	265 VAC	85 VAC	Adjustable Output DC Input Capable Load Sharing Remote On/Off Remote Sense Universal Input	71 °C	-40 °C	300 W	CE		3000 V	Conformal Coated Enclosed	24 V	1	2.4 in	165.1 mm	6.5 in	82 mm	61 mm	3.23 in	85 %	14 A
TDK Corporation HWS300-48/HD	ITE (Commercial)	Chassis Mount	265 VAC	85 VAC	Adjustable Output DC Input Capable Load Sharing Remote On/Off Remote Sense Universal Input	71 °C	-40 °C	300 W	CE	7 A	3000 V	Conformal Coated Enclosed	48 V	1	2.4 in	165.1 mm	6.5 in	82 mm	61 mm	3.23 in	85 %
TDK Corporation HWS300-3/HD	ITE (Commercial)	Chassis Mount	265 VAC	85 VAC	Adjustable Output DC Input Capable Load Sharing Remote On/Off Remote Sense Universal Input	71 °C	-40 °C	300 W	CE	60 A	3000 V	Conformal Coated Enclosed	3.3 V	1	2.4 in	165.1 mm	6.5 in	82 mm	61 mm	3.23 in	77 %

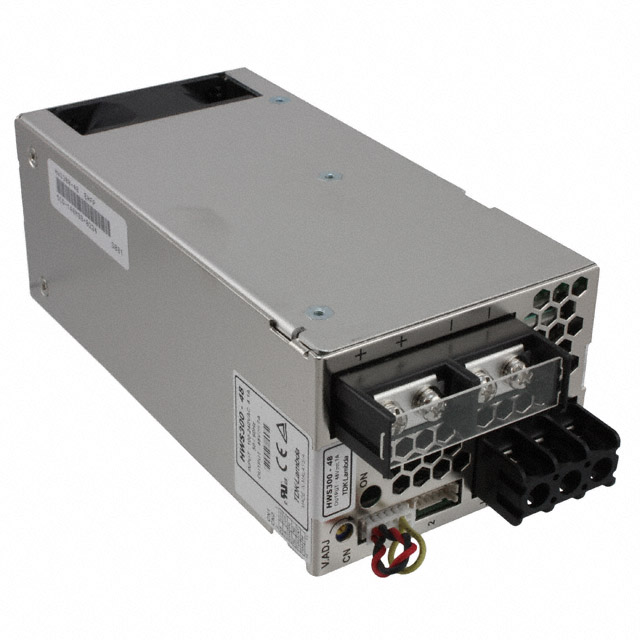

TDK Corporation HWS300-48	ITE (Commercial)	Chassis Mount	265 VAC	85 VAC	Adjustable Output DC Input Capable Load Sharing Remote On/Off Remote Sense Universal Input	70 °C	-10 °C	300 W	CE	7 A	3000 V	Conformal Coated Enclosed	48 V	1	2.4 in	165.1 mm	6.5 in	82 mm	61 mm	3.23 in	85 %
TDK Corporation HWS300P-36	ITE (Commercial)	Chassis Mount	265 VAC	85 VAC	Adjustable Output DC Input Capable Load Sharing Remote On/Off Remote Sense Universal Input	70 °C	-10 °C	300 W	CE	8.4 A	3000 V	Conformal Coated Enclosed		1	3.94 in	165.1 mm	6.5 in	82 mm	100.1 mm	3.23 in	85 %		36 V
TDK Corporation HWS300-24/ME	ITE (Commercial) Medical	Chassis Mount	265 VAC	85 VAC	Adjustable Output DC Input Capable Load Sharing Remote On/Off Remote Sense Universal Input	70 °C	-10 °C	300 W	CE		3000 V	Enclosed	24 V	1	2.4 in	165.1 mm	6.5 in	82 mm	61 mm	3.23 in	85 %	14 A
TDK Corporation HWS300-15/PV	ITE (Commercial)	Chassis Mount	265 VAC	85 VAC	Adjustable Output DC Input Capable Load Sharing Remote On/Off Remote Sense Universal Input	70 °C	-10 °C	300 W	CE	22 A	3000 V	Conformal Coated Enclosed	15 V	1	2.4 in	165.1 mm	6.5 in	82 mm	61 mm	3.23 in	85 %

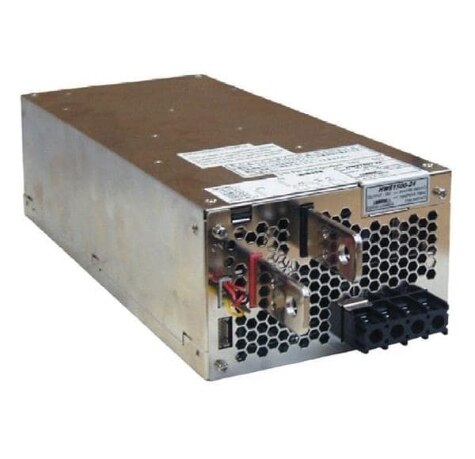

TDK Corporation HWS300-24/PV	Industrial ITE (Commercial)	Chassis Mount	265 VAC 330 V	85 VAC 120 VDC	Adjustable Output Load Sharing Remote On/Off Remote Sense Universal Input	70 °C	-10 °C	336 W	CE CSA UL		3000 V	Enclosed	24 V	1	2.4 in	165.1 mm	6.5 in	82 mm	61 mm	3.23 in	85 %	14 A
