LPJ-SP Series
Industrial & Electrical Fuses 600V 200A Dual Element Time Delay
Manufacturer: Eaton - Electronics Division
Catalog
Industrial & Electrical Fuses 600V 200A Dual Element Time Delay
Beta
⌘K
Industrial & Electrical Fuses 600V 200A Dual Element Time Delay
Industrial & Electrical Fuses 600V 200A Dual Element Time Delay
Industrial & Electrical Fuses 600V 200A Dual Element Time Delay
| Part | Breaking Capacity @ Rated Voltage | Approval Agency | Mounting Type | Voltage Rating - AC | Class | Fuse Type | Response Time | Current Rating (Amps) | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [diameter] | Package / Case | Applications | Size / Dimension [x] | Size / Dimension [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

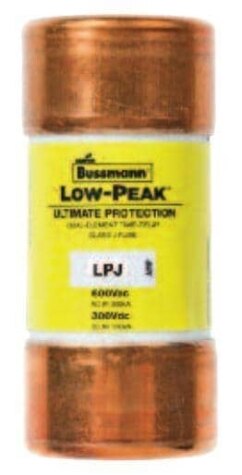

 Eaton - Electronics Division | 100 kA 300 kA | CE CSA UL | Requires Holder | 600 VAC | J | Cartridge | Slow Blow | 40 A | 1.06 in | 2.38 in | 60.45 mm | 26.92 mm | Cartridge Non-Standard | Electrical Industrial | ||

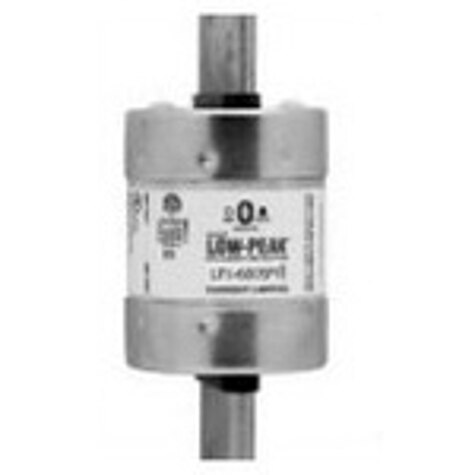

 Eaton - Electronics Division | 100 kA 300 kA | CE CSA UL | Bolt Mount | 600 VAC | J | Cartridge | Slow Blow | 500 A | 2.5 in | 3.75 " | 95.25 mm | 63.5 mm | Alarm Indicator Blade Terminal Cylindrical | Electrical Industrial | ||
 Eaton - Electronics Division | 100 kA 300 kA | CE CSA UL | Requires Holder | 600 VAC | J | Cartridge | Slow Blow | 17.5 A | 0.81 in | 2.25 " | 57.15 mm | 20.57 mm | Cylindrical Alarm Indicating | Electrical Industrial | ||
 Eaton - Electronics Division | 100 kA 300 kA | CE CSA UL | Bolt Mount | 600 VAC | J | Cartridge | Slow Blow | 200 A | 3 in | 1.5 in | Alarm Indicator Blade Terminal Cylindrical | Electrical Industrial | 76.2 mm | 38.1 mm | ||

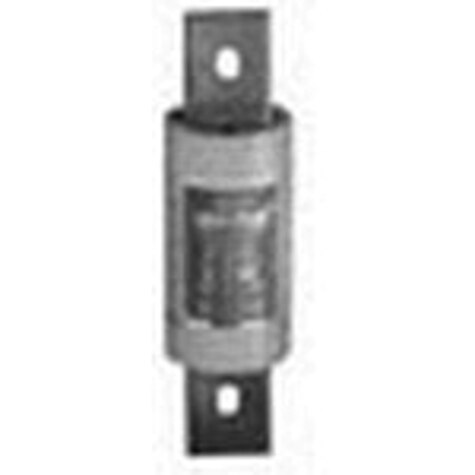

 Eaton - Electronics Division | 100 kA 300 kA | CE CSA UL | Bolt Mount | 600 VAC | J | Cartridge | Slow Blow | 350 A | 2 in | 3.38 in | 85.85 mm | 50.8 mm | Cylindrical Blade Terminal (Bolt) | Electrical Industrial | ||
Eaton - Electronics Division | 100 kA 300 kA | CE CSA UL | Bolt Mount | 600 VAC | J | Cartridge | Slow Blow | 125 A | 3 in | 1.5 in | Alarm Indicator Blade Terminal Cylindrical | Electrical Industrial | 76.2 mm | 38.1 mm |
