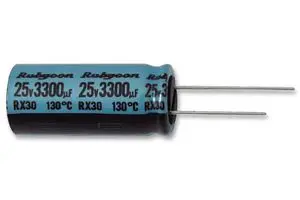

RX30 Series

Manufacturer: Rubycon

Catalog

ALUMINIUM ELECTROLYTIC CAPACITOR, RX30 SERIES, 220 - F, - 20%, 63 V, 12.5 MM, RADIAL LEADED ROHS COMPLIANT: YES

Part	Operating Temperature [Max]	Operating Temperature [Min]	Ratings	Capacitance	Voltage - Rated	Mounting Type	Impedance	Lifetime @ Temp.	Applications	Package / Case	Ripple Current @ Low Frequency	Tolerance	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [custom]	Ripple Current @ High Frequency	Lead Spacing	Lead Spacing	Size / Dimension [diameter]	Size / Dimension [diameter]	Polarization	Height - Seated (Max) [Max] [z]	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]
Rubycon 63RX30220M12.5X20	130 °C	-40 C	AEC-Q200	220 µF	63 V	Through Hole	100 mOhms	4000 Hrs	Automotive	Can Radial	574 mA	20 %	0.866 in	22 mm	820 mA	0.197 "	5 mm	0.492 in	12.5 mm	Polar
Rubycon 25RX302200M16X31.5	130 °C	-40 C	AEC-Q200	2200 µF	25 VDC	Through Hole	34 mOhms	4000 Hrs	Automotive	Can Radial	1.84 A	20 %			2.3 A	0.295 in	7.5 mm	0.63 in	16 mm	Polar	1.319 in	33.5 mm
Rubycon 16RX301000M10X20	130 °C	-40 C	AEC-Q200	1000 µF	16 V	Through Hole	73 mOhms	2000 Hrs	Automotive	Can Radial	720 mA	20 %	0.866 in	22 mm	960 mA	0.197 "	5 mm	0.394 in	10 mm	Polar
Rubycon 25RX303300M16X35.5	130 °C	-40 C	AEC-Q200	3.3 mF	25 VDC	Through Hole	31 mOhms	4000 Hrs	Automotive	Can Radial	2.04 A	20 %			2.55 A	0.295 in	7.5 mm	0.63 in	16 mm	Polar	1.476 in		37.5 mm
Rubycon 10RX302200M12.5X25	130 °C	-40 C	AEC-Q200	2200 µF	10 V	Through Hole	40 mOhms	4000 Hrs	Automotive	Can Radial	1.144 A	20 %			1.43 A	0.197 "	5 mm	0.492 in	12.5 mm	Polar	1.043 in		26.5 mm
Rubycon 35RX30220M10X12.5	130 °C	-40 C	AEC-Q200	220 µF	35 V	Through Hole	150 mOhms	2000 Hrs	Automotive	Can Radial	434 mA	20 %				0.197 "	5 mm	0.394 in	10 mm	Polar				0.571 "	14.5 mm
Rubycon 25RX30470M10X16	130 °C	-40 C	AEC-Q200	470 µF	25 VDC	Through Hole	100 mOhms	2000 Hrs	Automotive	Can Radial	600 mA	20 %			800 mA	0.197 "	5 mm	0.394 in	10 mm	Polar			0.689 in			17.5 mm
Rubycon 400RX301R5M8X11.5	130 °C	-25 °C	AEC-Q200	1500 nF	400 V	Through Hole		2000 Hrs	Automotive	Can Radial	15 mA	20 %			75 mA	0.138 in	3.5 mm	0.315 in	8 mm	Polar				0.531 in	13.5 mm
Rubycon 10RX30330M8X11.5	130 °C	-40 C	AEC-Q200	330 µF	10 V	Through Hole	220 mOhms	2000 Hrs	Automotive	Can Radial	252 mA	20 %			360 mA	0.138 in	3.5 mm	0.315 in	8 mm	Polar	0.512 "		13 mm
Rubycon 50RX3047M8X11.5	130 °C	-40 C	AEC-Q200	47 µF	50 VDC	Through Hole	280 mOhms	2000 Hrs	Automotive	Can Radial	210 mA	20 %			300 mA	0.138 in	3.5 mm	0.315 in	8 mm	Polar	0.512 "		13 mm
