SLKK Series
Manufacturer: Phoenix Contact
Beta
⌘K

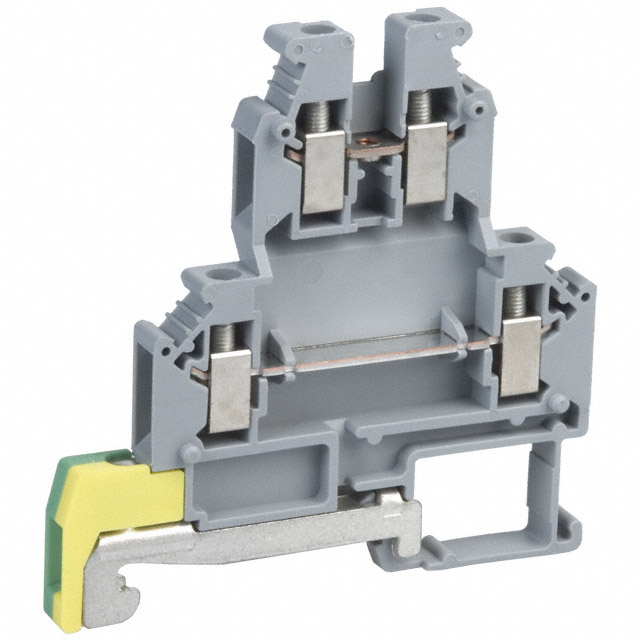

DIN RAIL TERMINAL BLOCKS 6.2MM DBL BLOCK
| Part | Material - Insulation | Stripping Length | Material Flammability Rating | Voltage - UL | Wire Gauge or Range - AWG [Max] | Wire Gauge or Range - AWG [Min] | Termination Style | Terminal - Width [y] | Type | Voltage - IEC | Current - IEC | Color | Wire Gauge or Range - mm² [Max] | Wire Gauge or Range - mm² [Min] | Current - UL | Number of Levels | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Phoenix Contact | Nylon Polyamide (PA) | 8 mm | UL94 V-0 | 600 V | 26 AWG | 10 AWG | Screw | 6.2 mm | Feed Through (2) Isolated | 500 V | 34 A | Gray | 4 mm² | 0.2 mm² | 30 A | 3 | 5 |
