1060989 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

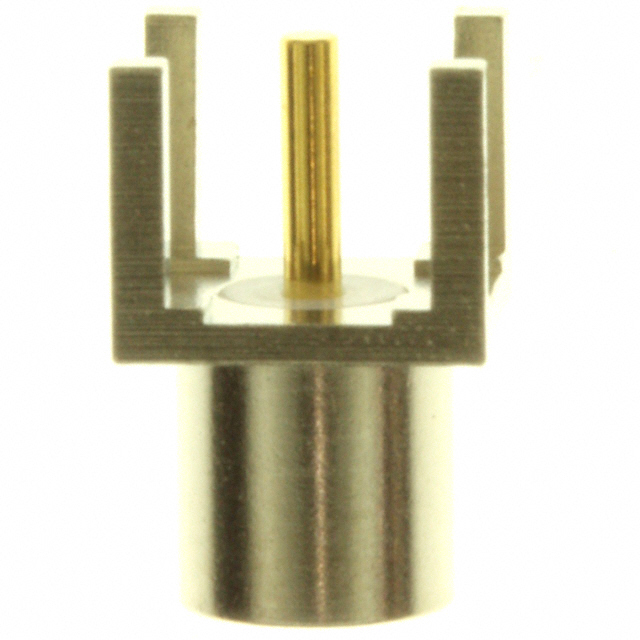

CONN MCX RCPT STR 50 OHM PCB
| Part | Center Contact Plating | Mating Cycles | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Voltage Rating | Dielectric Material | Insertion Loss | Housing Color | Fastening Type | Connector Type | Impedance | Frequency - Max [Max] | Contact Termination | Mounting Type | Shield Termination | Number of Ports | Connector Style | Center Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Gold | 500 | Brass | -65 ░C | 165 °C | Nickel | 335 V | Polytetrafluoroethylene (PTFE) | 0.1 dB | Silver | Snap-On | Receptacle Female Socket | 50 Ohms | 6000 MHz | Solder | Through Hole | Solder | 1 | MCX | Beryllium Copper |
