90041 Series
Manufacturer: Preci-Dip
Beta
⌘K

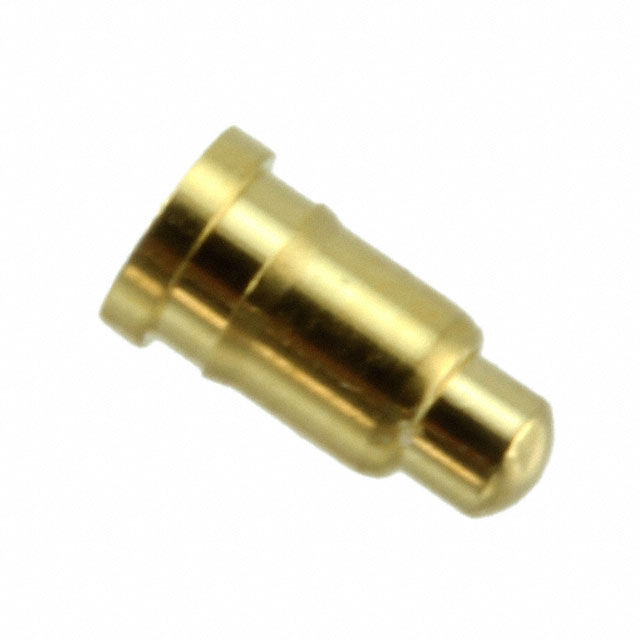

CONTACT SPRING LOADED SMD GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Operating Force - Mid Compression | Maximum Working Height [Max] | Maximum Working Height [Max] | Mounting Type | Contact Finish | Current Rating (Amps) | Mating Cycles | Contact Type | Minimum Working Height | Minimum Working Height | Contact Material | Plunger Size [diameter] | Plunger Size [diameter] | Contact Finish Thickness | Contact Finish Thickness | Pad Layout Dimension | Pad Layout Dimension | Operating Force - Initial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Preci-Dip | -55 C | 125 °C | 61.18 gf | 3.5 mm | 0.138 in | Surface Mount | Gold | 3 A | 40000 | Sleeve & Plunger (Pogo Pins) | 2.5 mm | 0.098 in | Brass Alloy | 0.042 in | 1.07 mm | 20 µin | 0.51 µm | 0.072 in | 1.83 mm | 25.49 gf |
