ECS-100 Series

Manufacturer: ECS Inc.

Catalog

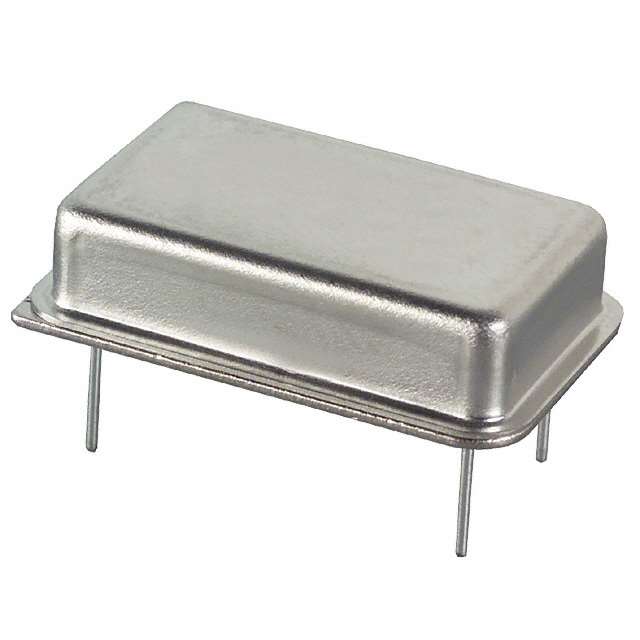

STANDARD CLOCK OSCILLATORS OSC XO 8.000MHZ TTL PC PIN 8MHZ - TTL 5V +/-100PPM 0C - 70C 30MA THROUGH HOLE 0.821" L X 0.520" W (20.86MM X 13.20MM) 0.200" (5.08MM) 14-DIP, 4 LEADS (FULL SIZE, METAL CAN)

Part	Frequency Stability	Current - Supply (Max) [Max]	Type	Base Resonator [custom]	Operating Temperature [Max]	Frequency	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Mounting Type	Output	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
ECS Inc. ECS-100A-080	100 ppm	30 mA	XO (Standard)	Crystal	70 °C	8 MHz	0.821 in 20.86 mm	0.52 in 13.2 mm	14-DIP 4 Leads (Full Size Metal Can)	Through Hole	TTL	5.08 mm	0.2 in
ECS Inc. ECS-100A-010	100 ppm	15 mA	XO (Standard)	Crystal	70 °C	1 MHz	0.821 in 20.86 mm	0.52 in 13.2 mm	14-DIP 4 Leads (Full Size Metal Can)	Through Hole	TTL	5.08 mm	0.2 in
ECS Inc. ECS-100A-500	100 ppm	70 mA	XO (Standard)	Crystal	70 °C	50 MHz	0.821 in 20.86 mm	0.52 in 13.2 mm	14-DIP 4 Leads (Full Size Metal Can)	Through Hole	TTL	5.08 mm	0.2 in
