CD09AR Series

Manufacturer: Hummel AG

Catalog

CABLE GLAND 2.03-6.1MM PG9

Part	Thread Length	Thread Length	Thread Size	Color	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min)	Type	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max)	Ingress Protection	Material	Operating Temperature [Min]	Operating Temperature [Max]	Panel Hole Size	Panel Hole Size

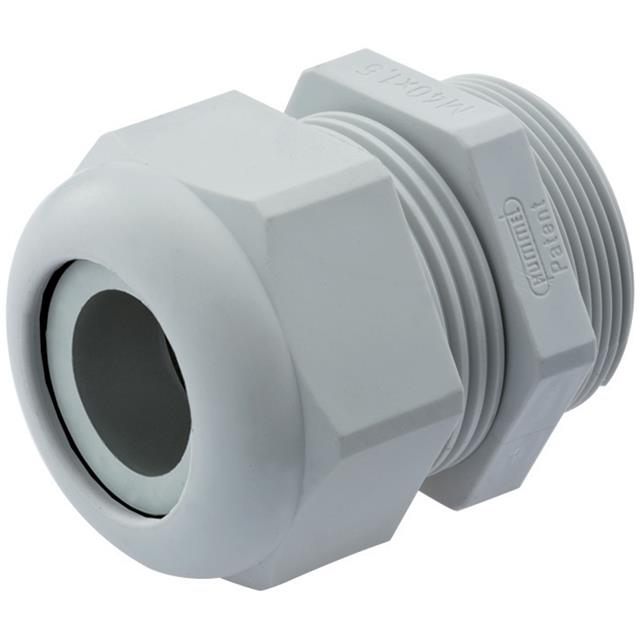

Hummel AG CD09AR-GY	0.31 "	7.87 mm	PG9	Gray	0.08 in	2.03 mm	Cable Gland	0.24 in	6.1 mm	IP68/IP69K - Dust Tight Water Resistant Waterproof; NEMA 6	Polyamide (PA66) Nylon 6/6	-40 C	100 °C	15.2 mm	0.6 in

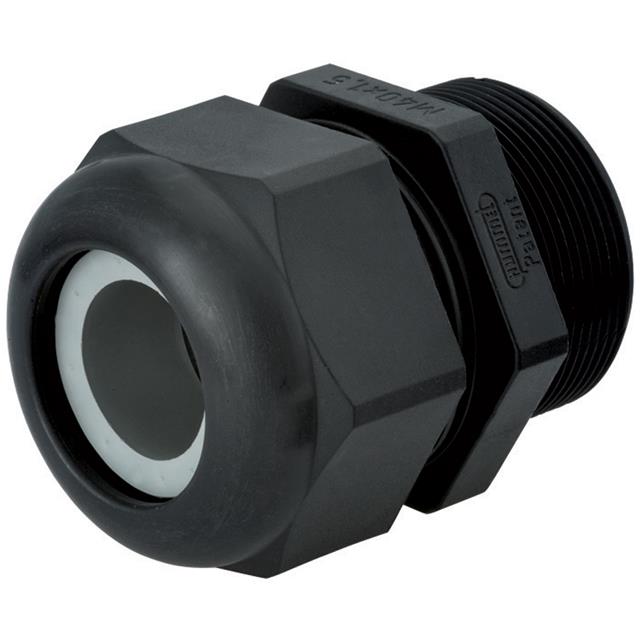

Hummel AG CD09AR-BK	0.31 "	7.87 mm	PG9	Black	0.08 in	2.03 mm	Cable Gland	0.24 in	6.1 mm	IP68/IP69K - Dust Tight Water Resistant Waterproof; NEMA 6	Polyamide (PA66) Nylon 6/6	-40 C	100 °C	15.2 mm	0.6 in
Hummel AG CD09AR-GY	0.31 "	7.87 mm	PG9	Gray	0.08 in	2.03 mm	Cable Gland	0.24 in	6.1 mm	IP68/IP69K - Dust Tight Water Resistant Waterproof; NEMA 6	Polyamide (PA66) Nylon 6/6	-40 C	100 °C	15.2 mm	0.6 in
Hummel AG CD09AR-BK	0.31 "	7.87 mm	PG9	Black	0.08 in	2.03 mm	Cable Gland	0.24 in	6.1 mm	IP68/IP69K - Dust Tight Water Resistant Waterproof; NEMA 6	Polyamide (PA66) Nylon 6/6	-40 C	100 °C	15.2 mm	0.6 in
