SS28H Series

Manufacturer: KEMET

Catalog

V ROHS COMPLIANT: YES

Part	Voltage Rating - AC	Inductance @ Frequency	Package / Case	Mounting Type	Current Rating (Max) [Max]	DC Resistance (DCR) (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Number of Lines	Filter Type	Operating Temperature [Max]	Operating Temperature [Min]	Height (Max) [z]	Height (Max) [z]

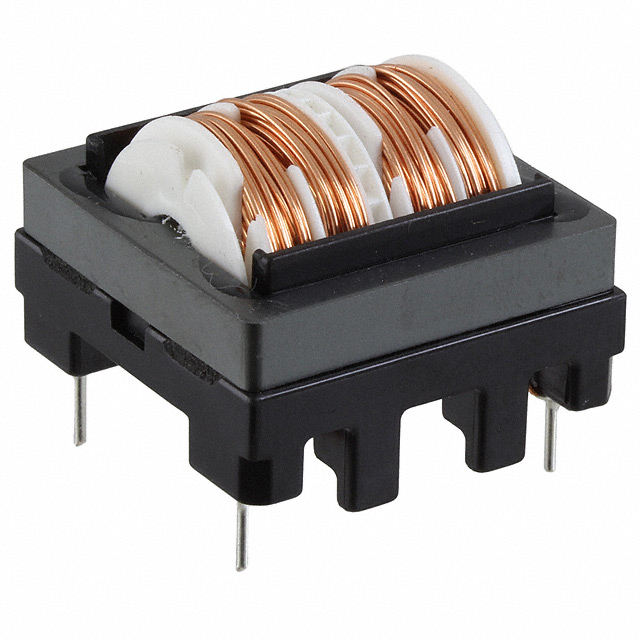

KEMET SS28H-R10450-CH	250 V	45 mH	Vertical 4 PC Pin	Through Hole	1 A	650 mOhm	30 mm	30 mm	1.181 in	1.181 in	2	Power Line	120 °C	-25 °C	0.965 in	24.5 mm

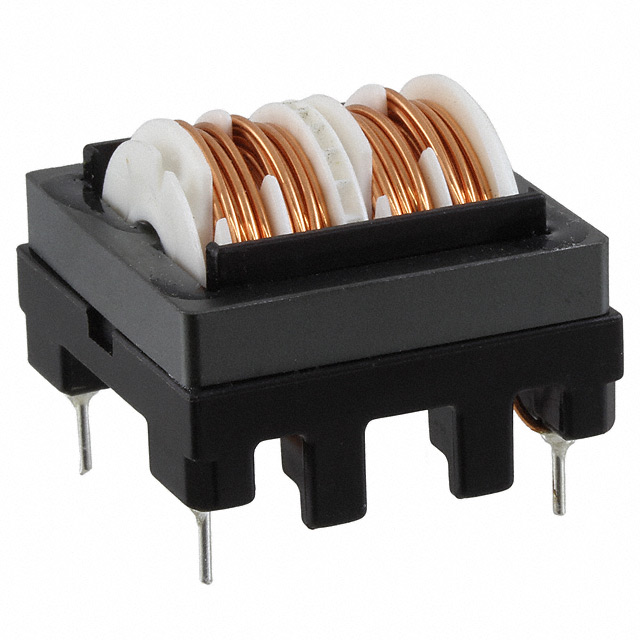

KEMET SS28H-R25080-CH	250 V	1 kHz 8 mH	Vertical 4 PC Pin	Through Hole	2.5 A	160 mOhm	30 mm	30 mm	1.181 in	1.181 in	2	Power Line	120 °C	-25 °C	0.965 in	24.5 mm
