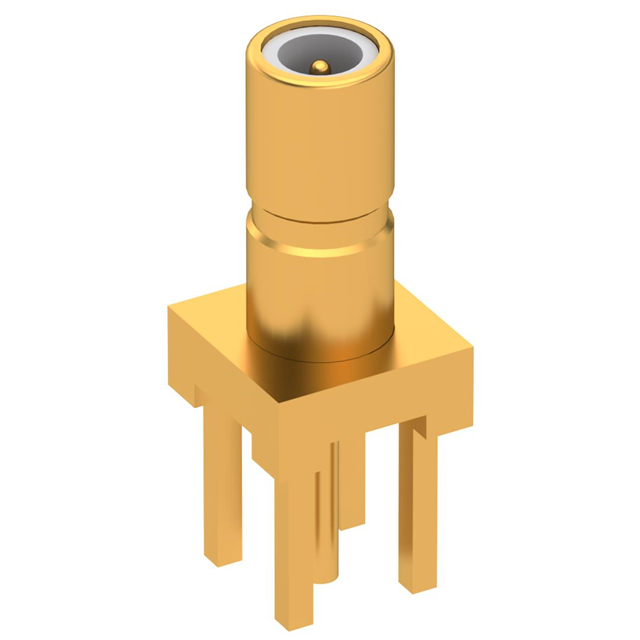

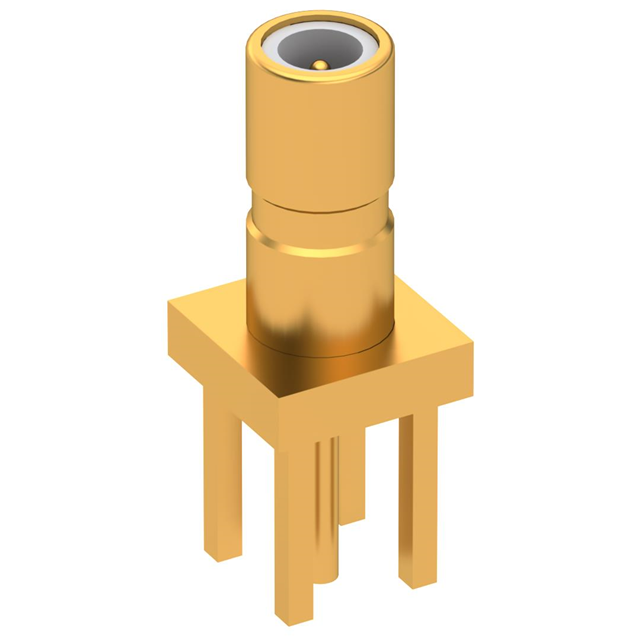

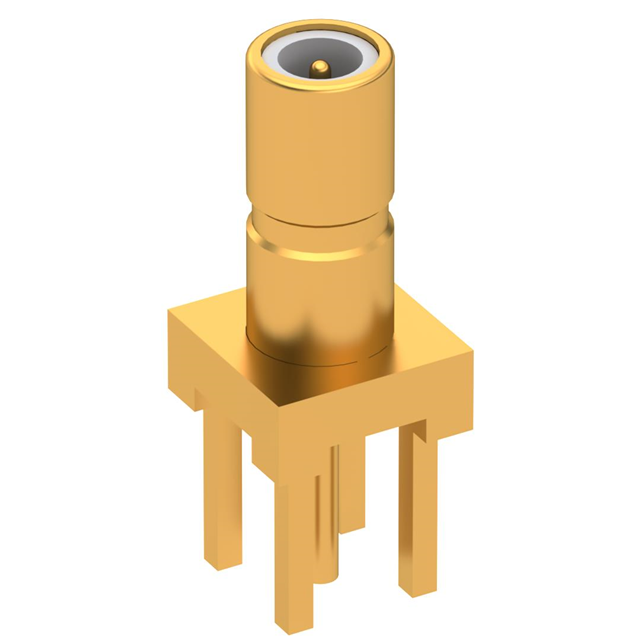

7209-1511 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K
SSMB M STR NA
| Part | Mating Cycles | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Voltage Rating | Dielectric Material | Center Contact Plating | Impedance | Mounting Type | Shield Termination | Connector Type | Fastening Type | Center Contact Material | Number of Ports | Frequency - Max [Max] | Contact Termination | Connector Style | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 500 | Brass | -65 ░C | 165 °C | Gold | 250 V | Polytetrafluoroethylene (PTFE) | Gold | 50 Ohms | Through Hole | Solder | Jack Male Pin | Snap-On | Beryllium Copper | 1 | 12.4 GHz | Solder | SSMB | Gold |
 Radiall USA, Inc. | 500 | Brass | -65 ░C | 165 °C | Gold | 250 V | Polytetrafluoroethylene (PTFE) | Gold | 50 Ohms | Through Hole | Solder | Jack Male Pin | Snap-On | Beryllium Copper | 1 | 12.4 GHz | Solder | SSMB | Gold |
 Radiall USA, Inc. | 500 | Brass | -65 ░C | 165 °C | Gold | 250 V | Polytetrafluoroethylene (PTFE) | Gold | 50 Ohms | Through Hole | Solder | Jack Male Pin | Snap-On | Beryllium Copper | 1 | 12.4 GHz | Solder | SSMB | Gold |
 Radiall USA, Inc. | 500 | Brass | -65 ░C | 165 °C | Gold | 250 V | Polytetrafluoroethylene (PTFE) | Gold | 50 Ohms | Through Hole | Solder | Jack Male Pin | Snap-On | Beryllium Copper | 1 | 12.4 GHz | Solder | SSMB | Gold |
Radiall USA, Inc. | 500 | Brass | -65 ░C | 165 °C | Gold | 250 V | Polytetrafluoroethylene (PTFE) | Gold | 50 Ohms | Through Hole | Solder | Jack Male Pin | Snap-On | Beryllium Copper | 1 | 12.4 GHz | Solder | SSMB | Gold |
