25MHz 3.2 x 2.5mm Reference Crystal
Description
AI

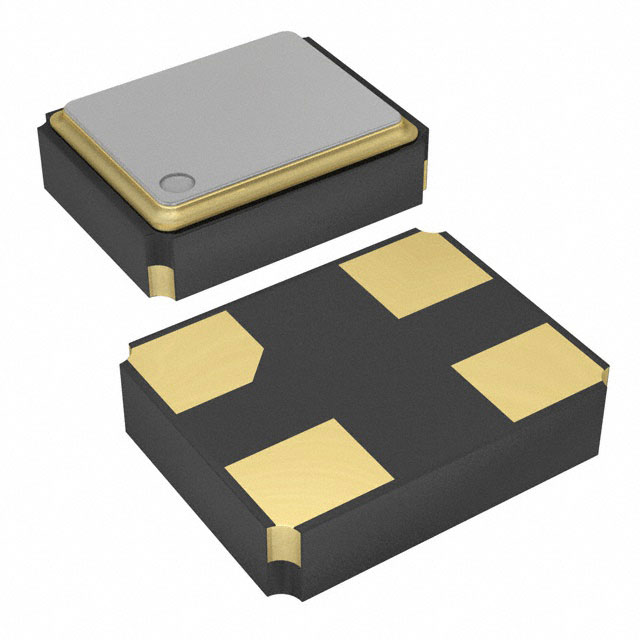

The 603-25-173 is a 25MHz 3.2mm x 2.5mm reference crystal that is RoHS compliant and Pb-free.
Beta
⌘K
25MHz 3.2 x 2.5mm Reference Crystal
25MHz 3.2 x 2.5mm Reference Crystal
| Part | Frequency Stability | Operating Mode | Load Capacitance | Mounting Type | Frequency Tolerance | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Frequency | Type | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | ESR (Equivalent Series Resistance) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Renesas Electronics Corporation | 20 ppm | Fundamental | 12 pF | Surface Mount | 20 ppm | 4-SMD No Lead | 85 °C | -40 C | 25 MHz | MHz Crystal | 0.043 " | 1.1 mm | 2.6 mm | 0.13 " | 0.102 in | 3.3 mm | 50 Ohms |
Renesas Electronics Corporation | 20 ppm | Fundamental | 12 pF | Surface Mount | 20 ppm | 4-SMD No Lead | 85 °C | -40 C | 25 MHz | MHz Crystal | 0.043 " | 1.1 mm | 2.6 mm | 0.13 " | 0.102 in | 3.3 mm | 50 Ohms |
